Fineboring Tools Tapered screw adjustment μm-accurate adjustable |
Adjustment instructions

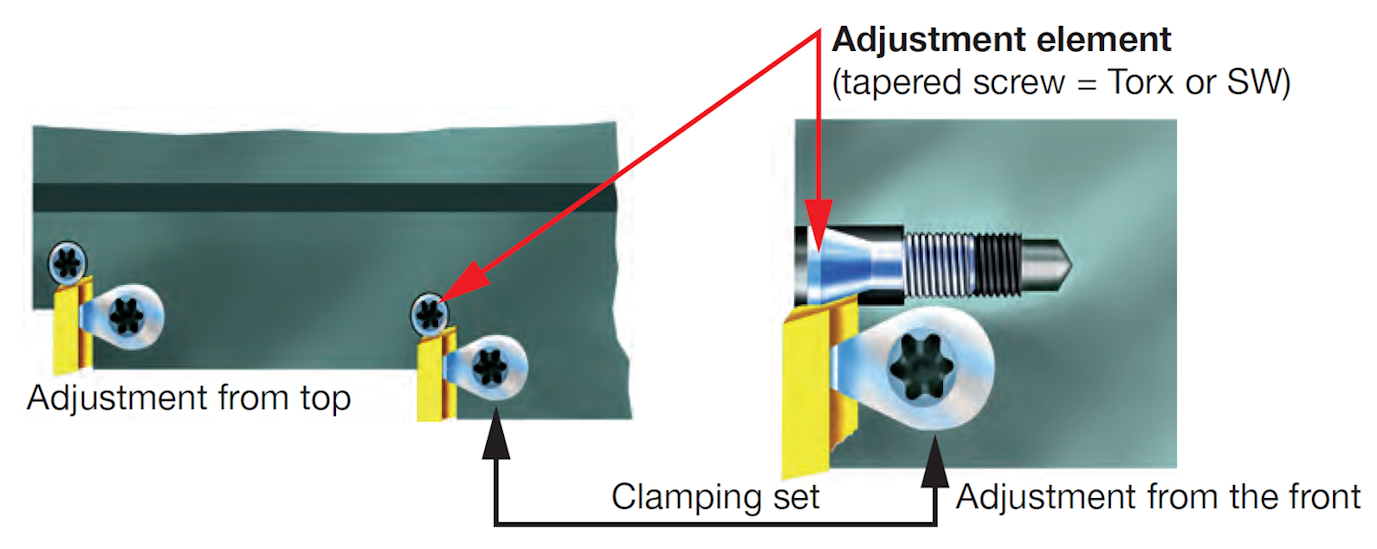

| 1. Changing the insert Disassembly Loosen clamp set (1 to 2 turns) and remove the worn insert Clean the insert pocket Turn out the adjustment element 1 to 2 turns Assembly Put a new insert in the pocket seat Press insert into the pocket seat, keep under pressure and slightly tighten the clamp set: Torx 5 with 40 Ncm Torx 6 with 60 Ncm Torx 8 with 100 - 120 Ncm Torx 15 with 250 - 300 Ncm |
2. Insert adjustment Clamp the holder in the presetting device Adjust the insert in diameter up to 0.05 mm smaller than target measure Tighten the clamp set Adjust insert to the required machining diameter. It is not necessary to retighten the clamping set! |
| Torque for clamping sets | |||||
| Tool type | Clamp set | Torque (Ncm) | Torx size | Torque wrench fixed DSF | |
| Part nr. | Code | ||||
| H 1035 / H 1730 | E 1100 / E 3441 | 45 | Tx 5 | 20063 | 0.450 |
| H 2850 | E 1085 / E 1112 | 70 | Tx 6 | 20063 | 0.700 |
| H 3570 | E 1060 | 140 | Tx 8 | 20063 | 1.400 |
| H 4090 | E 1040 | 345 | Tx 15 | 20063 | 3.450 |
| Torque wrench adjustable DS | 20 - 120 | 20063 | 1.200 | ||
| 100 - 600 | 20063 | 6.000 | |||
Security Advice: For security reasons the tool must be returned to the manufacturer for inspection if the holder is damaged! The clamp sets must be replaced on a regular basis or in case that they show any sign of damage. Only original spare parts may be used! |
 |
|
 |
