Fineboring Tools Radial adjustment, μm-accurate adjustable |
| 1 cutting edge Ø 7 - 20 mm internal coolant |
 |
| Part nr. 20021 |
|||||||||

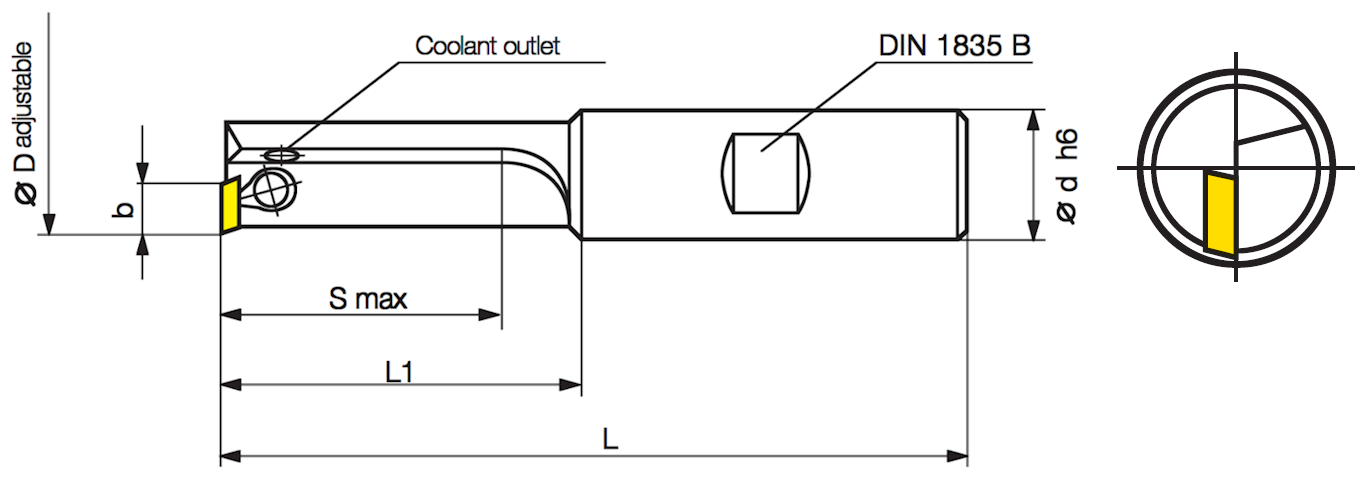

| Code | Drawing nr. | b | Ø D | Ø d | S | L1 | L | Inserts | |
| 7,000 | H1035-0700 2016R | 3.9 | 7 - 8 | 16 | 20 | 28 | 76 | W1035-...L | |
| 8,000 | H1035-0800 2016R | 3.9 | 8 - 9 | 16 | 20 | 28 | 76 | ❙ | |
| 9,000 | H1035-0900 2016R | 3.9 | 9 - 10 | 16 | 20 | 28 | 76 | ||
| 10,000 | H2850-1000 2516R | 5 | 10 - 11 | 16 | 25 | 35 | 83 | W2850-...L | |
| 11,000 | H2850-1100 2516R | 5 | 11 - 12 | 16 | 25 | 35 | 83 | ❙ | |
| 12,000 | H2850-1200 3016R | 5 | 12 - 13 | 16 | 30 | 40 | 88 | ❙ | |
| 13,000 | H2850-1300 3016R | 5 | 13 - 14 | 16 | 30 | 40 | 88 | ||
| 14,000 | H3570-1400 3516R | 7 | 14 - 16 | 16 | 35 | 45 | 93 | W357-...L | |
| 16,000 | H3570-1600 4016R | 7 | 16 - 18 | 16 | 40 | 50 | 98 | ❙ | |
| 18,000 | H3570-1800 4516R | 7 | 18 - 20 | 16 | 45 | 55 | 103 | ||
| ex stock | |||||||||
 |
|
 |
