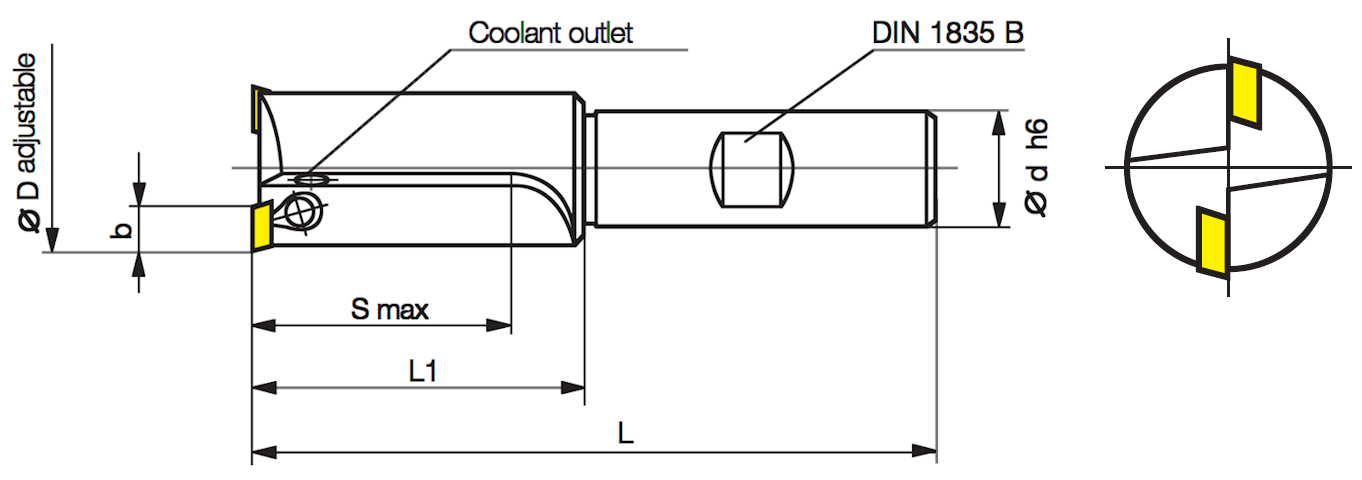

Fineboring Tools Radial adjustment, μm-accurate adjustable |
| 2 cutting edges Ø 10 - 40 mm internal coolant |
 |
| Part nr. 20022 |
|||||||||
| Code | Drawing nr. | b | Ø D | Ø d | S | L1 | L | Inserts | |
| 10,000 | H1035-1000 2516R | 3.9 | 10 - 11 | 16 | 25 | 35 | 83 | W1035-...L | |
| 11,000 | H1035-1100 2516R | 3.9 | 11 - 12 | 16 | 25 | 35 | 83 | ❙ | |
| 12,000 | H1035-1200 3016R | 3.9 | 12 - 13 | 16 | 30 | 40 | 88 | ❙ | |
| 13,000 | H1035-1300 3016R | 3.9 | 13 - 14 | 16 | 30 | 40 | 88 | ||
| 14,000 | H2850-1400 3516R | 5 | 14 - 15 | 16 | 35 | 45 | 93 | W2850-...L | |
| 15,000 | H2850-1500 3516R | 5 | 15 - 16 | 16 | 35 | 45 | 93 | ❙ | |
| 16,000 | H2850-1600 4016R | 5 | 16 - 17 | 16 | 40 | 50 | 98 | ❙ | |
| 17,000 | H2850-1700 4016R | 5 | 17 - 18 | 16 | 40 | 50 | 98 | ❙ | |
| 18,000 | H2850-1800 4516R | 5 | 18 - 19 | 16 | 45 | 55 | 103 | ❙ | |
| 19,000 | H2850-1900 4516R | 5 | 19 - 20 | 16 | 45 | 55 | 103 | ||
| 20,000 | H3570-2000 5020R | 7 | 20 - 22 | 20 | 50 | 65 | 115 | W357-...L | |
| 22,000 | H3570-2200 5520R | 7 | 22 - 24 | 20 | 55 | 70 | 120 | ❙ | |
| 24,000 | H3570-2400 6020R | 7 | 24 - 26 | 20 | 60 | 75 | 125 | ||
| 26,000 | H4090-2600 6520R | 9 | 26 - 28 | 20 | 65 | 80 | 130 | W409-...L | |
| 28,000 | H4090-2800 7020R | 9 | 28 - 30 | 20 | 70 | 85 | 135 | ❙ | |
| 30,000 | H4090-3000 7520R | 9 | 30 - 32 | 20 | 75 | 90 | 140 | ❙ | |
| 32,000 | H4090-3200 8020R | 9 | 32 - 34 | 20 | 80 | 95 | 145 | ❙ | |
| 34,000 | H4090-3400 8525R | 9 | 34 - 36 | 25 | 85 | 105 | 161 | ❙ | |
| 36,000 | H4090-3600 9025R | 9 | 36 - 38 | 25 | 90 | 110 | 166 | ❙ | |
| 38,000 | H4090-3800 9525R | 9 | 38 - 40 | 25 | 95 | 115 | 171 | ||
| ex stock | |||||||||
 |
|
 |
