Fineboring Tools Radial adjustment short version (1.5xD) |
| 1 cutting edge Ø 7 - 20 mm internal coolant, Shank DIN 1835 A |
 |
| Part nr. 20023 |
|||||||||

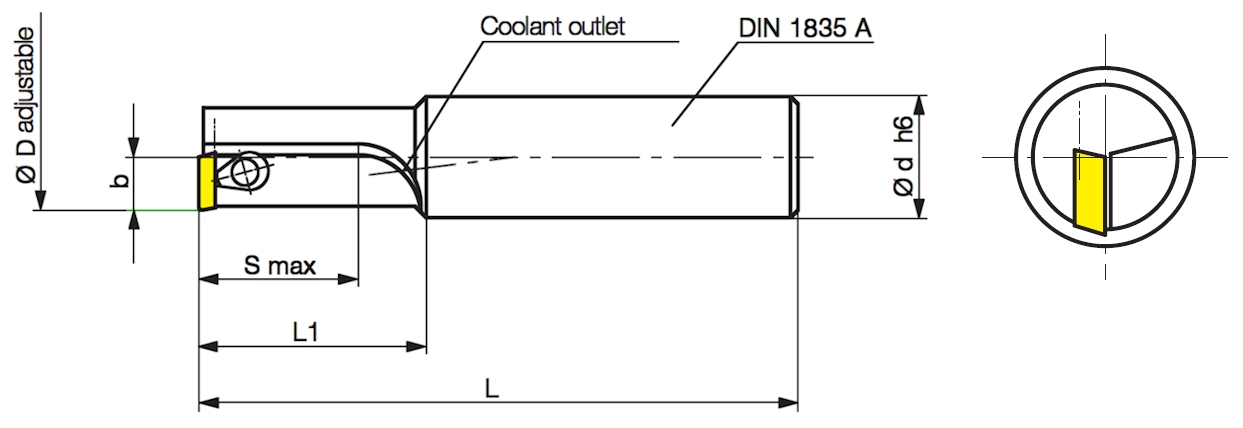

| Code | Drawing nr. | b | Ø D | Ø d | S | L1 | L | Inserts | |
| 7,000 | H1035-0700 1116R | 3.9 | 7 - 8 | 16 | 11 | 19 | 67 | W1035-...L | |
| 8,000 | H1035-0800 1216R | 3.9 | 8 - 9 | 16 | 12 | 20 | 68 | ❙ | |
| 9,000 | H1035-0900 1416R | 3.9 | 9 - 10 | 16 | 14 | 22 | 70 | ||
| 10,000 | H2850-1000 1516R | 5 | 10 - 11 | 16 | 15 | 25 | 73 | W2850-...L | |
| 11,000 | H2850-1100 1716R | 5 | 11 - 12 | 16 | 17 | 27 | 75 | ❙ | |
| 12,000 | H2850-1200 1816R | 5 | 12 - 13 | 16 | 18 | 28 | 76 | ❙ | |
| 13,000 | H2850-1300 2016R | 5 | 13 - 14 | 16 | 20 | 30 | 78 | ||
| 14,000 | H3570-1400 2116R | 7 | 14 - 16 | 16 | 21 | 31 | 79 | W3570-...L | |
| 16,000 | H3570-1600 2416R | 7 | 16 - 18 | 16 | 24 | 34 | 82 | ❙ | |
| 18,000 | H3570-1800 2716R | 7 | 18 - 20 | 16 | 27 | 37 | 85 | ||
| Tools in this series (1.5 x D) are optimal for the production of index bores and as pilot tools for multi-flute reamers. ex stock |
|||||||||
 |
|
 |
