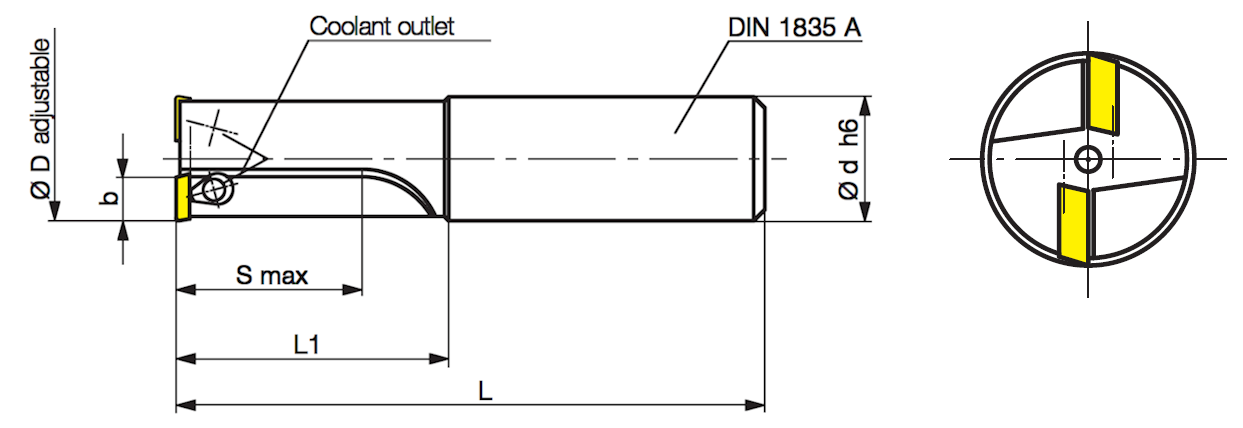

Fineboring Tools Radial adjustment short version (1.5xD) |
| 2 cutting edges Ø 10 - 44 mm internal coolant, Shank DIN 1835 A |
 |
| Part nr. 20024 |
|||||||||
| Code | Drawing nr. | b | Ø D | Ø d | S | L1 | L | Inserts | |
| 10,000 | H1035-1000 1516R | 3.9 | 10 - 11 | 16 | 15 | 25 | 73 | W1035-...L | |
| 11,000 | H1035-1100 1716R | 3.9 | 11 - 12 | 16 | 17 | 27 | 75 | ❙ | |
| 12,000 | H1035-1200 1816R | 3.9 | 12 - 13 | 16 | 18 | 28 | 76 | ❙ | |
| 13,000 | H1035-1300 1016R | 3.9 | 13 - 14 | 16 | 20 | 30 | 78 | ||
| 14,000 | H2850-1400 2116R | 5 | 14 - 15 | 16 | 21 | 31 | 79 | W2850-...L | |
| 15,000 | H2850-1500 2316R | 5 | 15 - 16 | 16 | 23 | 33 | 81 | ❙ | |
| 16,000 | H2850-1600 2416R | 5 | 16 - 17 | 16 | 24 | 34 | 82 | ❙ | |
| 17,000 | H2850-1700 2616R | 5 | 17 - 18 | 16 | 26 | 36 | 84 | ❙ | |
| 18,000 | H2850-1800 2716R | 5 | 18 - 19 | 16 | 27 | 37 | 85 | ❙ | |
| 19,000 | H2850-1900 2916R | 5 | 19 - 20 | 16 | 29 | 39 | 87 | ||
| 20,000 | H3570-2000 3020R | 7 | 20 - 22 | 20 | 30 | 45 | 95 | W3570-...L | |
| 22,000 | H3570-2200 3320R | 7 | 22 - 24 | 20 | 33 | 48 | 98 | ❙ | |
| 24,000 | H3570-2400 3620R | 7 | 24 - 26 | 20 | 36 | 51 | 101 | ||
| 26,000 | H4090-2600 3925R | 9 | 26 - 28 | 25 | 39 | 54 | 110 | W4090-...L | |
| 28,000 | H4090-2800 4225R | 9 | 28 - 30 | 25 | 42 | 57 | 113 | ❙ | |
| 30,000 | H4090-3000 4532R | 9 | 30 - 32 | 32 | 45 | 63 | 123 | ❙ | |
| 32,000 | H4090-3200 4832R | 9 | 32 - 34 | 20 | 48 | 66 | 126 | ❙ | |
| 34,000 | H4090-3400 5132R | 9 | 34 - 36 | 32 | 51 | 69 | 129 | ❙ | |
| 36,000 | H4090-3600 5432R | 9 | 36 - 38 | 32 | 54 | 72 | 132 | ❙ | |
| 38,000 | H4090-3800 5732R | 9 | 38 - 40 | 32 | 57 | 75 | 135 | ❙ | |
| 40,000 | H4090-4000 5732R | 9 | 40 - 42 | 32 | 60 | 77 | 138 | ❙ | |
| 42,000 | H4090-4200 5732R | 9 | 42 - 44 | 32 | 63 | 80 | 141 | ||
| Tools in this series (1.5 x D) are optimal for the production of index bores and as pilot tools for multi-flute reamers. ex stock |
|||||||||
 |
|
 |
