Fineboring Tools Radial adjustment, μm-accurate adjustable |
Spare Parts 2 cutting edges

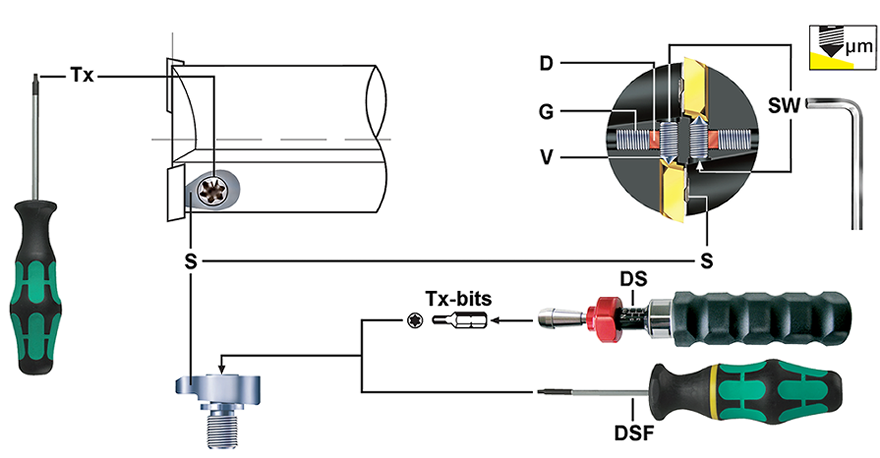

| S | Clamping set | ||
| Tx | Torx-screw driver ( for operating clamping ) | ||
| DS | Torque wrench adjustable | ||
| DSF | Torque wrench non-adjustable | ||
| Tx-bits | Torx-bits | ||
| V | Adjustment screw ( tapered screw ) | ||
| SW | Hex key | ||
| G | Clamping screw | ||
| D | Pushing pin | ||
Please note: Clamping set S contains: 1 Clamping element, 1 Sealing ring, 1 Clamping screw |
|||
| Tool | S | Tx | DS / DSF | Tx-bits | V | SW | G | D |
| H 1035-1000 …. R | E 1100 | Tx 5 | see adjustment instruction | Tx 5-bit | E 2450-2 | 0.7 | E 2608-1 | E 2649-1 |
| H 1035-1100 …. R | E 1100 | Tx 5 | see adjustment instruction | Tx 5-bit | E 2450-2 | 0.7 | E 2608-2 | E 2649-1 |
| H 1035-1200 …. R | E 1100 | Tx 5 | see adjustment instruction | Tx 5-bit | E 2450-3 | 0.7 | E 2608-3 | E 2649-1 |
| H 1035-1300 …. R | E 1100 | Tx 5 | see adjustment instruction | Tx 5-bit | E 2450-3 | 0.7 | E 2608-3 | E 2649-1 |
| H 2850-1400 …. R | E 1085 | Tx 6 | see adjustment instruction | Tx 6-bit | E 2323-1 | 0.9 | E 2610-1 | E 2649-2 |
| H 2850-1500 …. R | E 1085 | Tx 6 | see adjustment instruction | Tx 6-bit | E 2323-1 | 0.9 | E 2610-2 | E 2649-2 |
| H 2850-1600 …. R | E 1085 | Tx 6 | see adjustment instruction | Tx 6-bit | E 2323-2 | 0.9 | E 2610-2 | E 2649-2 |
| H 2850-1700 …. R | E 1085 | Tx 6 | see adjustment instruction | Tx 6-bit | E 2323-2 | 0.9 | E 2610-3 | E 2649-2 |
| H 2850-1800 …. R | E 1085 | Tx 6 | see adjustment instruction | Tx 6-bit | E 2323-3 | 0.9 | E 2610-3 | E 2649-2 |
| H 2850-1900 …. R | E 1085 | Tx 6 | see adjustment instruction | Tx 6-bit | E 2323-4 | 0.9 | E 2610-3 | E 2649-2 |
| H 3570-2000 …. R | E 1060 | Tx 8 | see adjustment instruction | Tx 8-bit | E 2108-1 | 1.3 | E 2612-1 | E 2649-3 |
| H 3570-2200 …. R | E 1060 | Tx 8 | see adjustment instruction | Tx 8-bit | E 2108-2 | 1.3 | E 2612-1 | E 2649-3 |
| H 3570-2400 …. R | E 1060 | Tx 8 | see adjustment instruction | Tx 8-bit | E 2108-2 | 1.3 | E 2612-2 | E 2649-3 |
| H 4090-2600 …. R | E 1040 | Tx 15 | see adjustment instruction | Tx 15-bit | E 2109-1 | 1.5 | E 2614-1 | E 2649-4 |
| H 4090-2800 …. R | E 1040 | Tx 15 | see adjustment instruction | Tx 15-bit | E 2109-1 | 1.5 | E 2614-1 | E 2649-4 |
| H 4090-3000 …. R | E 1040 | Tx 15 | see adjustment instruction | Tx 15-bit | E 2109-2 | 1.5 | E 2614-1 | E 2649-4 |
| H 4090-3200 …. R | E 1040 | Tx 15 | see adjustment instruction | Tx 15-bit | E 2109-3 | 1.5 | E 2614-2 | E 2649-4 |
| H 4090-3400 …. R | E 1040 | Tx 15 | see adjustment instruction | Tx 15-bit | E 2109-3 | 1.5 | E 2614-2 | E 2649-4 |
| H 4090-3600 …. R | E 1040 | Tx 15 | see adjustment instruction | Tx 15-bit | E 2109-5 | 1.5 | E 2614-2 | E 2649-4 |
| H 4090-3800 …. R | E 1040 | Tx 15 | see adjustment instruction | Tx 15-bit | E 2109-5 | 1.5 | E 2614-2 | E 2649-4 |
 |
|
 |
