Copying Shank round version

Turning Tools
Copying boring bars starting from 12 mm working diameter

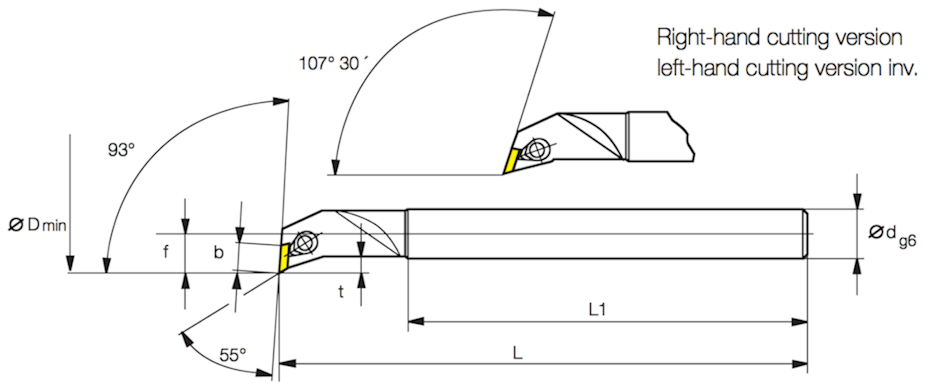

93° / 107°30‘ approach angle, 55° corner angle
Shank round version

Part nr. 20036
Code	Drawing nr.		Ø D	Ø d	f	b	t	L₁	L	Inserts*
	93° approach angle
12,000	H5506-1000 0793R		12	10	7.00	6.80	2.5	75	100	W5506-...L
16,000	H5506-1200 0993R		16	12	9.50	6.80	4	95	125	❙
20,500	H5506-1600 1293R		20.5	16	12.50	6.80	5	110	150	❙
	107°30‘ approach angle
12,001	H5506-1000 0707R		12	10	7.00	6.80	2.5	75	100	❙
16,001	H5506-1200 0907R		16	12	9.50	6.80	4	95	125	❙
20,501	H5506-1600 1207R		20.5	16	12.50	6.80	5	110	150
Please note: Left-hand boring bars have to be fitted with right-hand inserts and right-hand boring bars with left-hand inserts! ex stock*

Part nr. 20037
Code	Drawing nr.		Ø D	Ø d	f	b	t	L₁	L	Inserts*
	93° approach angle
12,000	H5506-1000 0793L		12	10	7.00	6.80	2.5	75	100	W5506-...R
16,000	H5506-1200 0993L		16	12	9.50	6.80	4	95	125	❙
20,500	H5506-1600 1293L		20.5	16	12.50	6.80	5	110	150	❙
	107°30‘ approach angle
12,001	H5506-1000 0707L		12	10	7.00	6.80	2.5	75	100	❙
16,001	H5506-1200 0907L		16	12	9.50	6.80	4	95	125	❙
20,501	H5506-1600 1207L		20.5	16	12.50	6.80	5	110	150
Please note: Left-hand boring bars have to be fitted with right-hand inserts and right-hand boring bars with left-hand inserts! ex stock*

We reserve the right to make technical changes.
