Toolholders with HSK-tapers shank DIN 69893-1

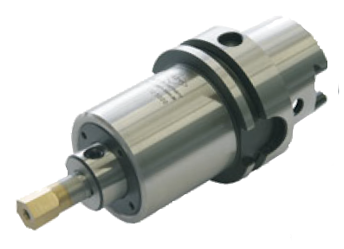

Shrinking chucks POWER-FLASH high-speed DIN 69882-8

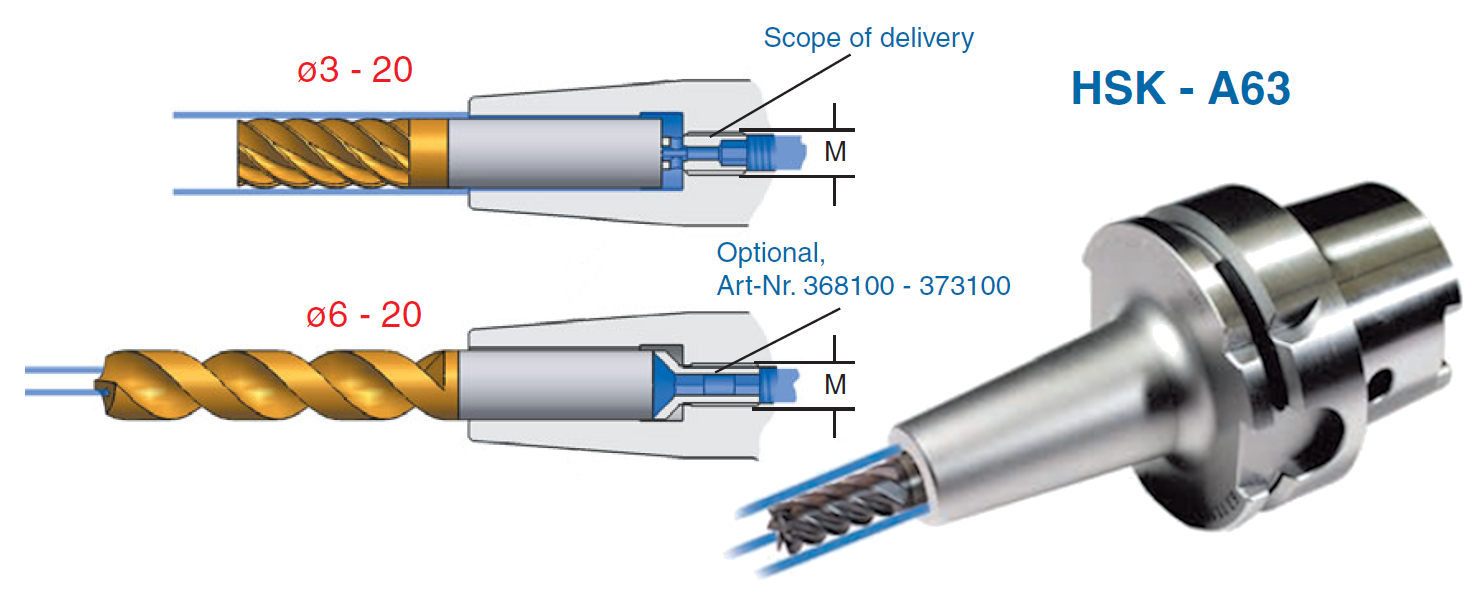

Best possible coolant supply through coolant channels in the boring.
Concentrated coolant supply up to 20,000 r.p.m.

Base-body balanced, G 2.5 - 20,000 r.p.m. to the cutting edge

Delivery without tool
           Stop screw
  Art.-Nr. d M
  368100 ø6 M  8x1
  369100 ø8 M  8x1
  370100-2 ø10 M  8x1

       HSK - A




       HSK - A 63
 Art.-Nr. Type A d D M α
 63.11.03.370 HSK-A63x03SCx80 80   3   9 M6     3°
 63.11.04.370 HSK-A63x04SCx80 80   4 10 M6     3°
 63.11.05.370 HSK-A63x05SCx80 80   5 11 M6     3°
 63.11.06.370 HSK-A63x06SCx80 80   6 12 M8x1 3°
 63.11.08.370 HSK-A63x08SCx80 80   8 14 M8x1 3°
 63.11.10.370 HSK-A63x10SCx80 80 10 16 M8x1 3°
 63.11.12.370 HSK-A63x12SCx80 80 12 18 M8x1 3°
 63.11.14.370 HSK-A63x14SCx80 80 14 20 M8x1 3°
 63.11.16.370 HSK-A63x16SCx80 80 16 22 M8x1 3°
 63.11.20.370 HSK-A63x20SCx80 80 20 26 M8x1 3°




We reserve the right to make technical changes.
