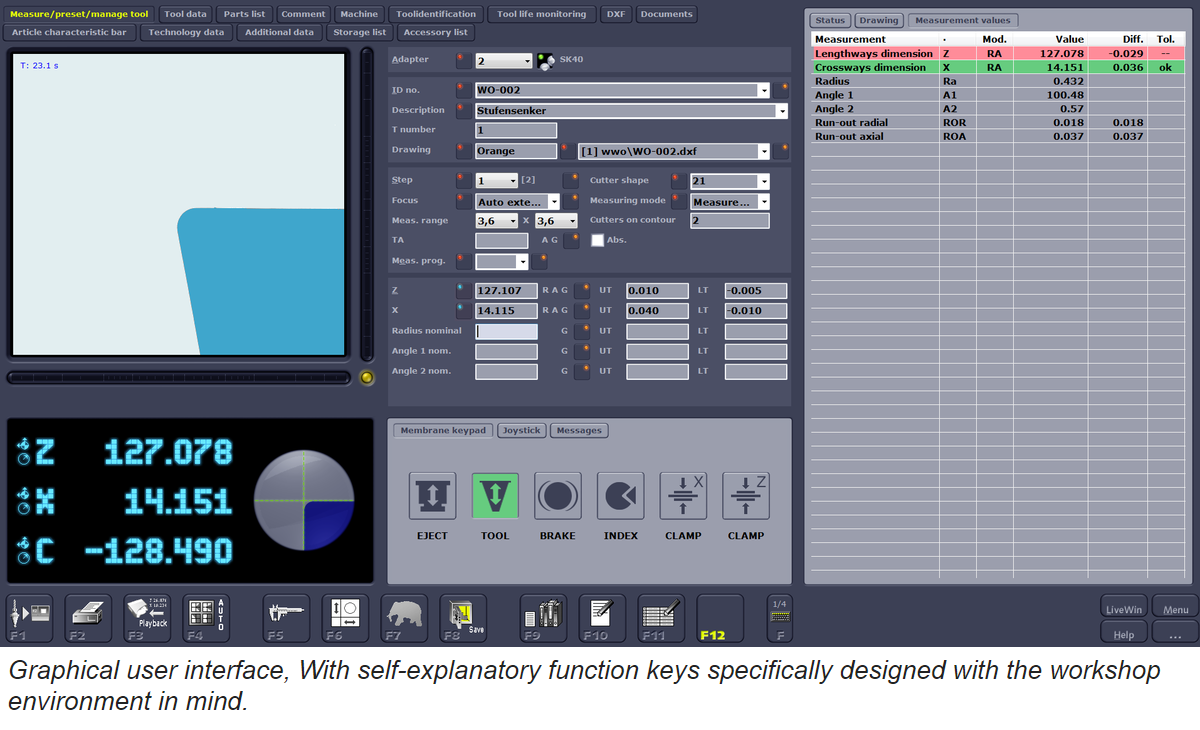

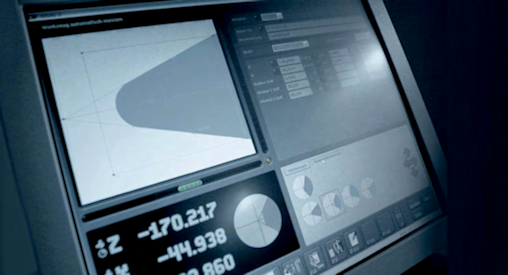

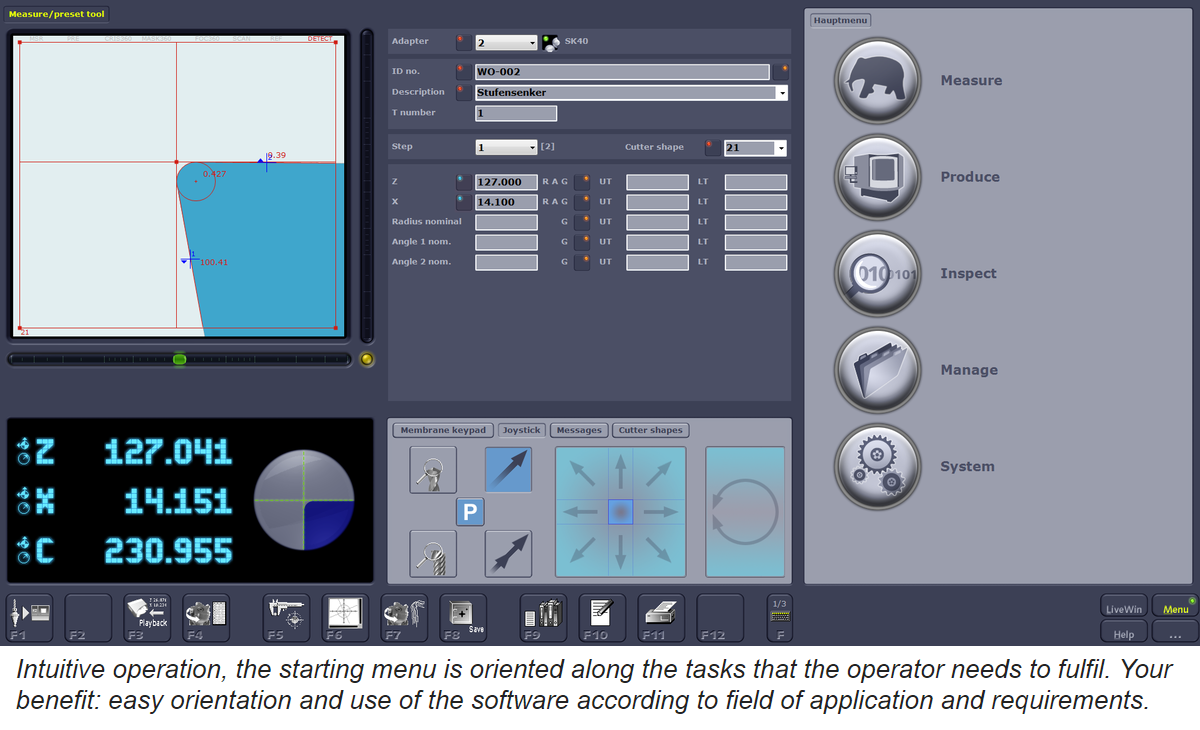

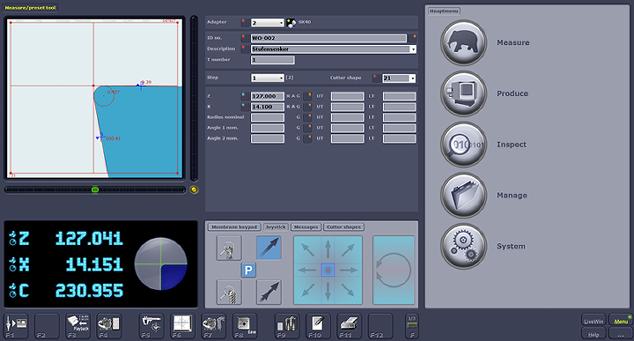

ZOLLER »pilot 3.0« represents a genuine landmark in the software development for tool presetter and measuring machines. Developed by applying the latest insights in

optimum man-machine interaction, the new high-contrast display highlights important information, facilitates orientation and means less pressure on the

eyes of the user. As a result, users can operate their machines quickly, easily and without enduring fatigue - an intuitively correct system delivering totally correct results.

Measuring + Presetting

 Experience new ease of use

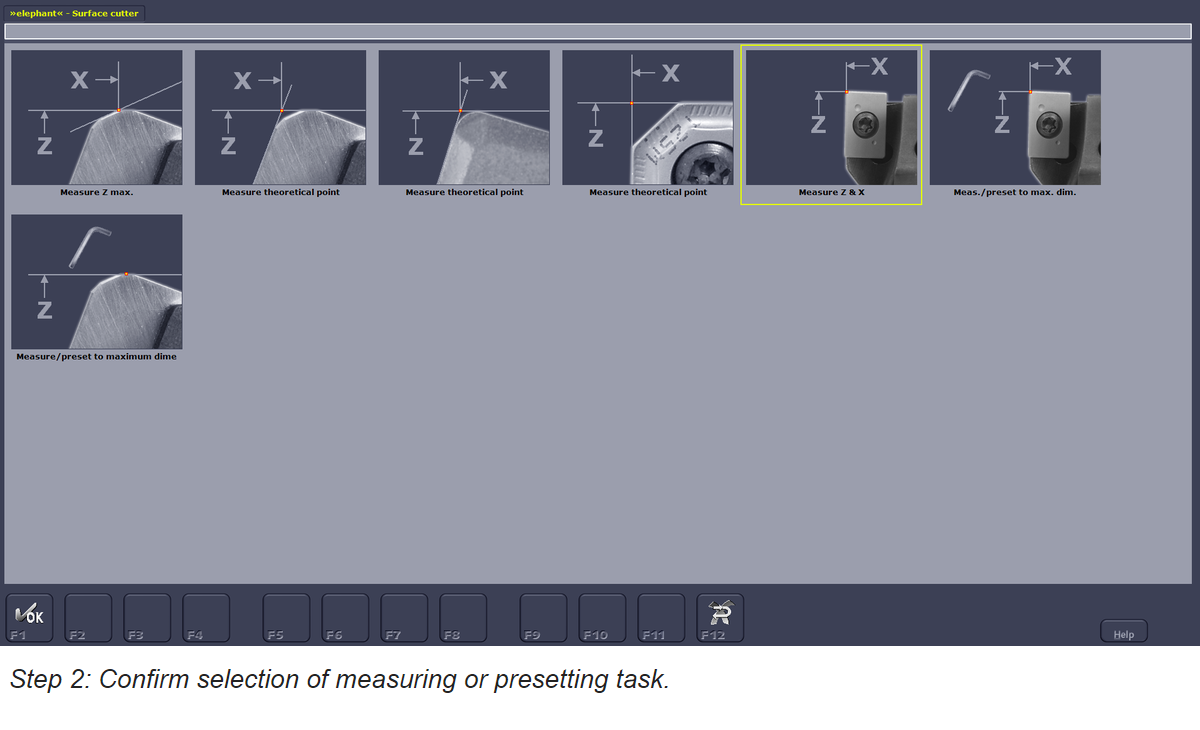

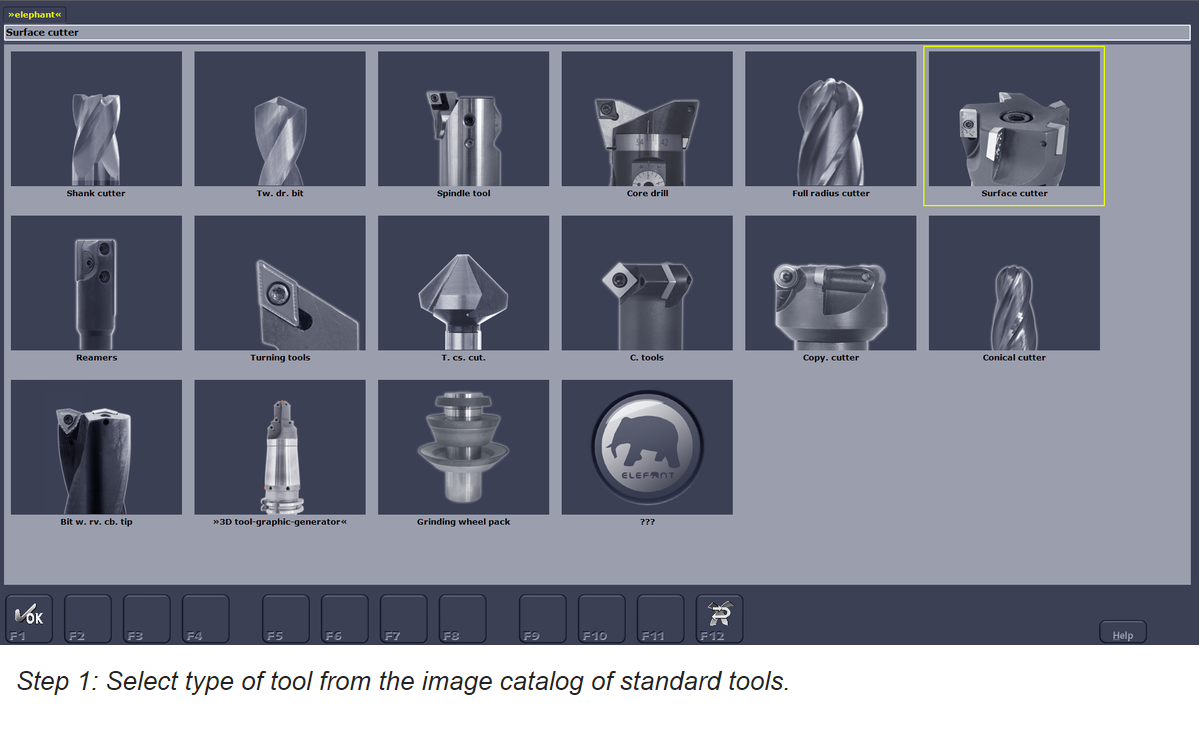

 »elephant« technology for measuring and presetting without any
   data entry or prior knowledge

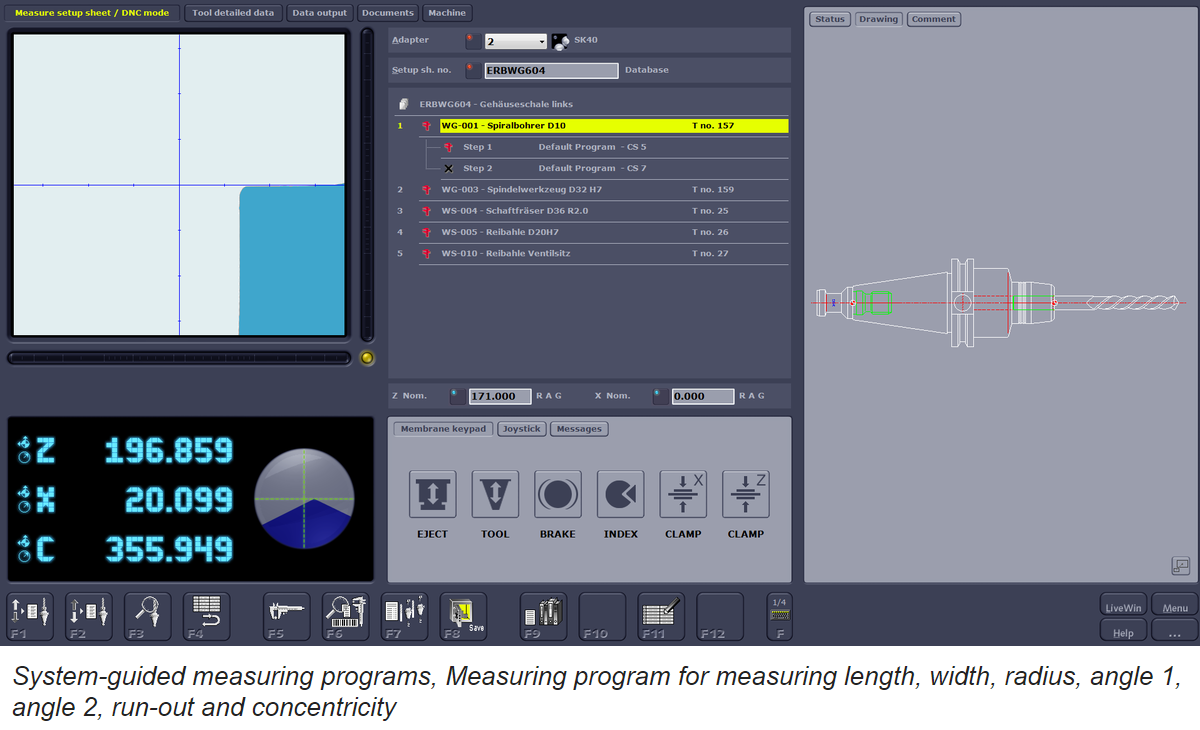

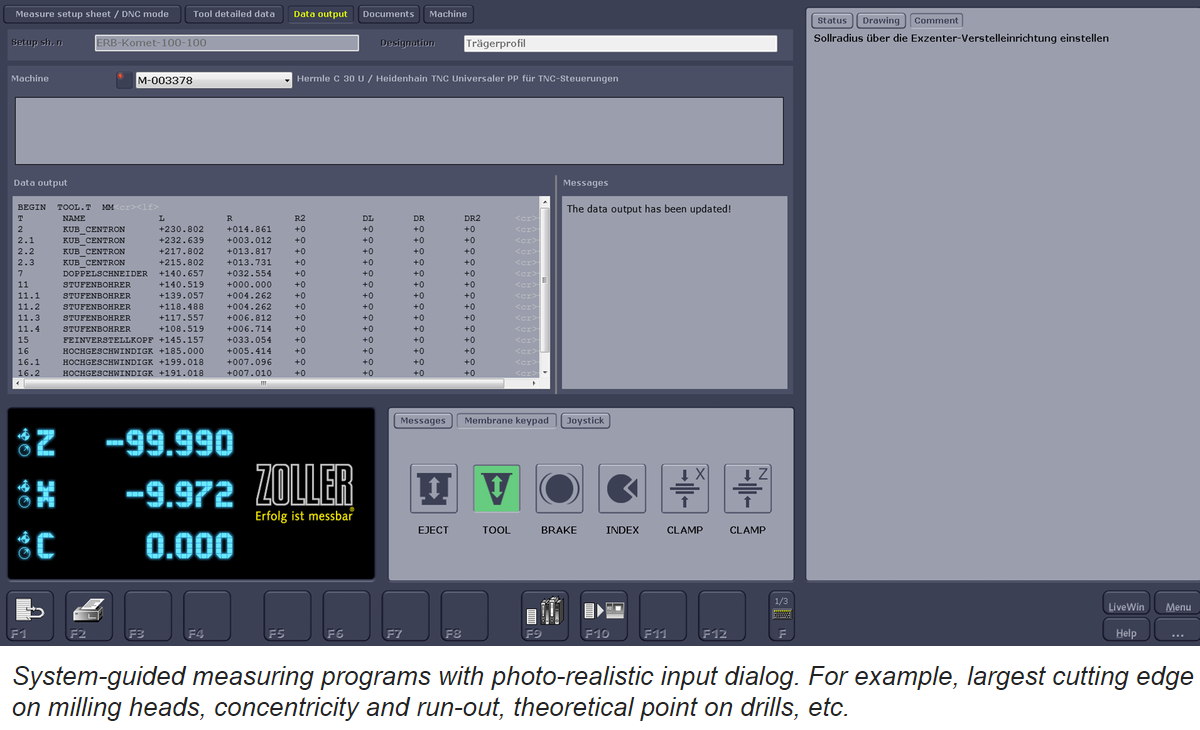

 Measurement programs with photorealistic input dialog for
   measurement of complex tool geometries

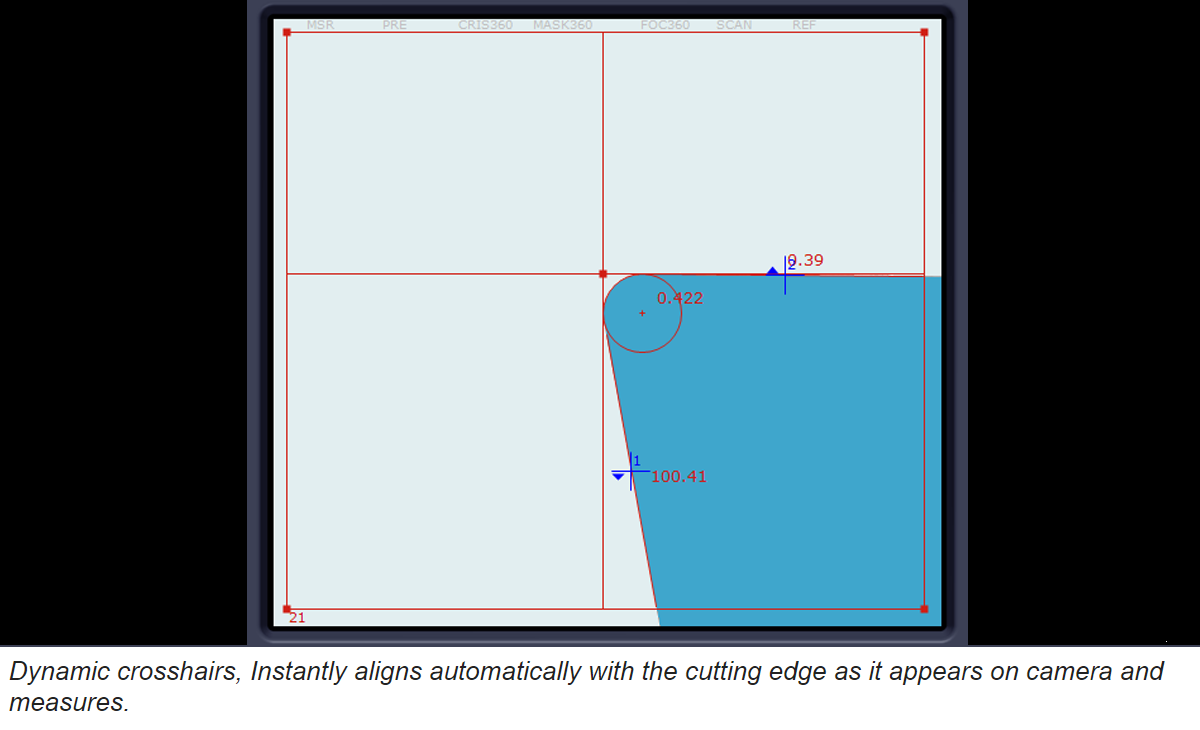

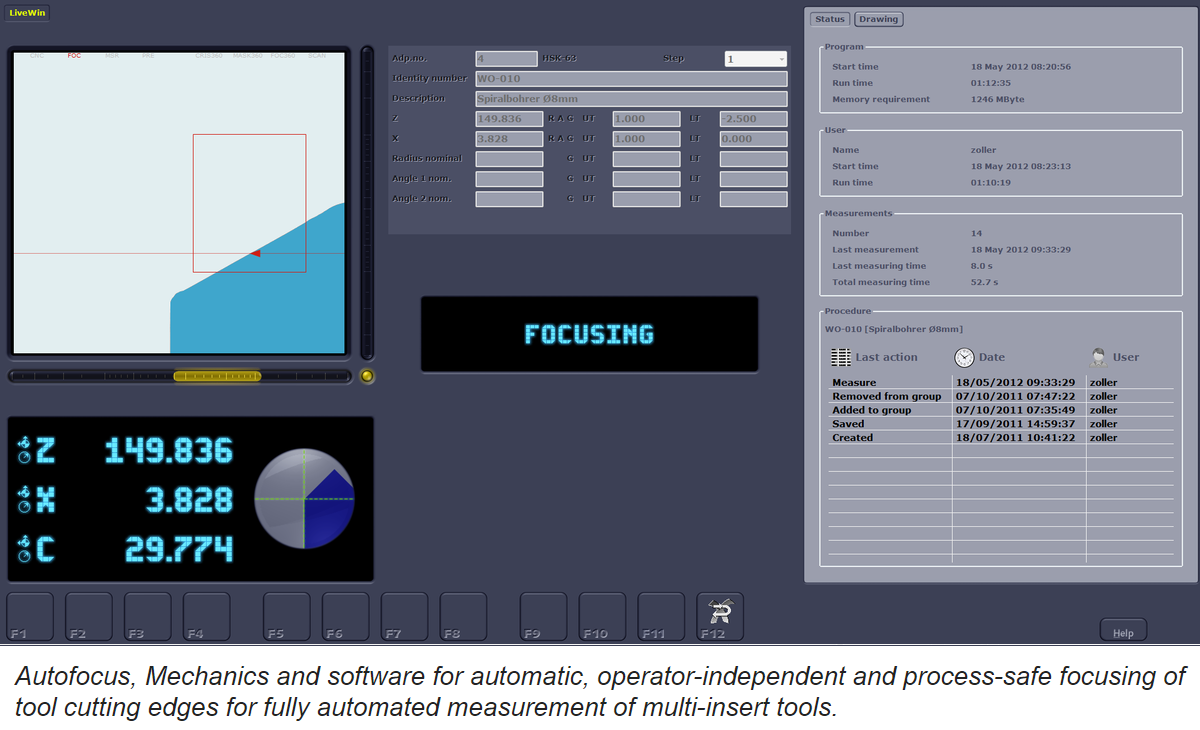

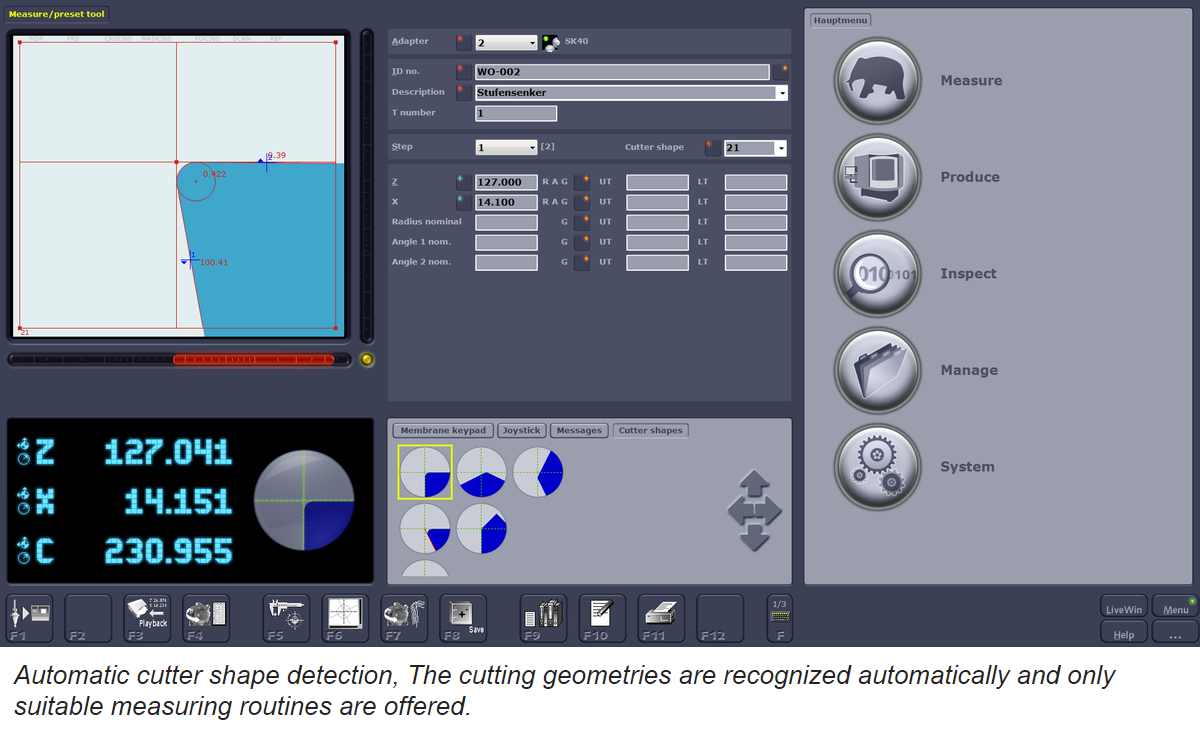

 Automatic cutting edge shape recognition for fast and precise
   measurement results

 Over 200 cutter shapes to measure any cutting edge geometry


 Define production processes efficiently

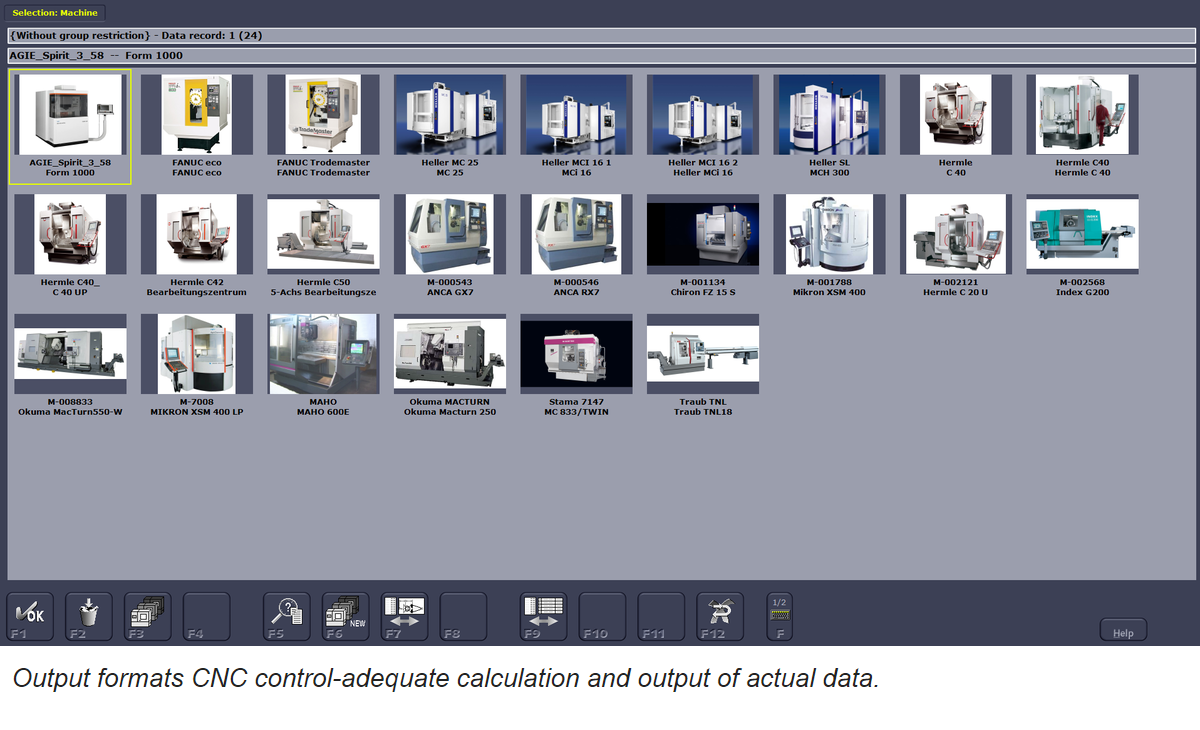

 Measure lists of tools at the push of a button and transfer them
   directly to the machine tool

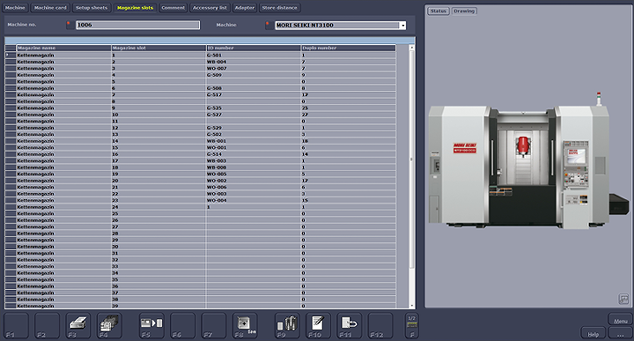

 »cetus« tool exchange list for calculating the tool requirement on
   the machine tool and for determining the tools to be exchanged

   on the machine tools

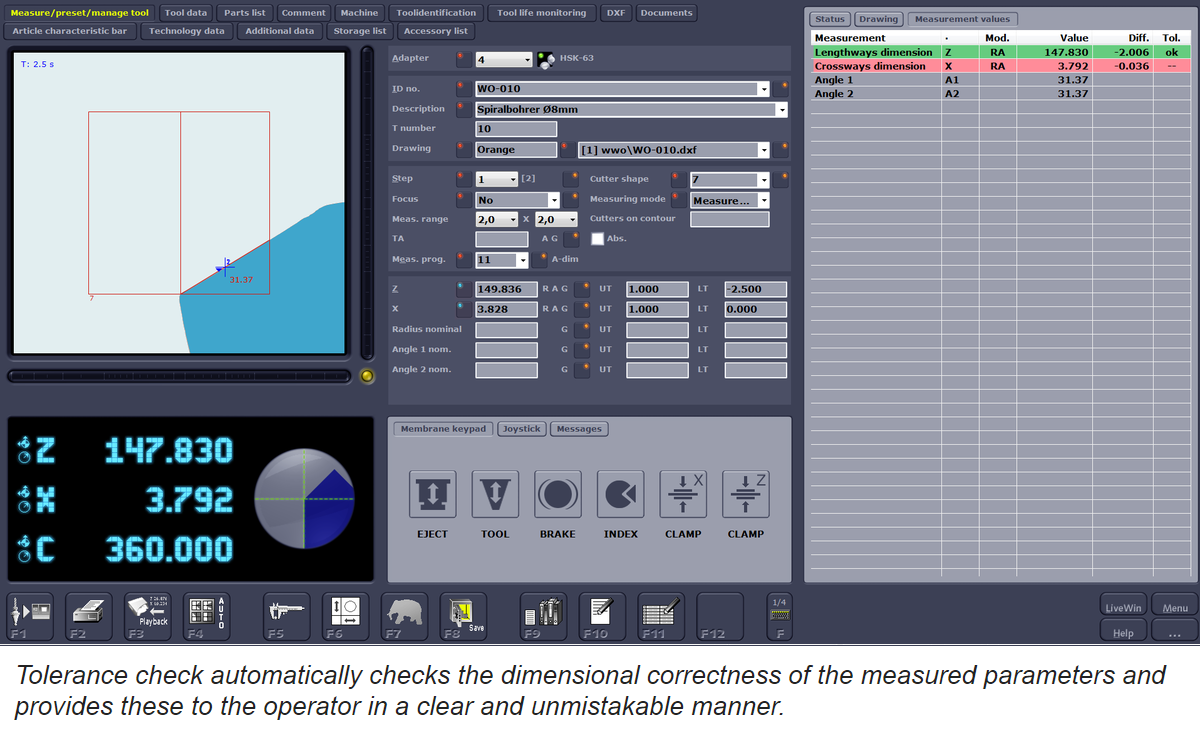

 Trust is good, control is better

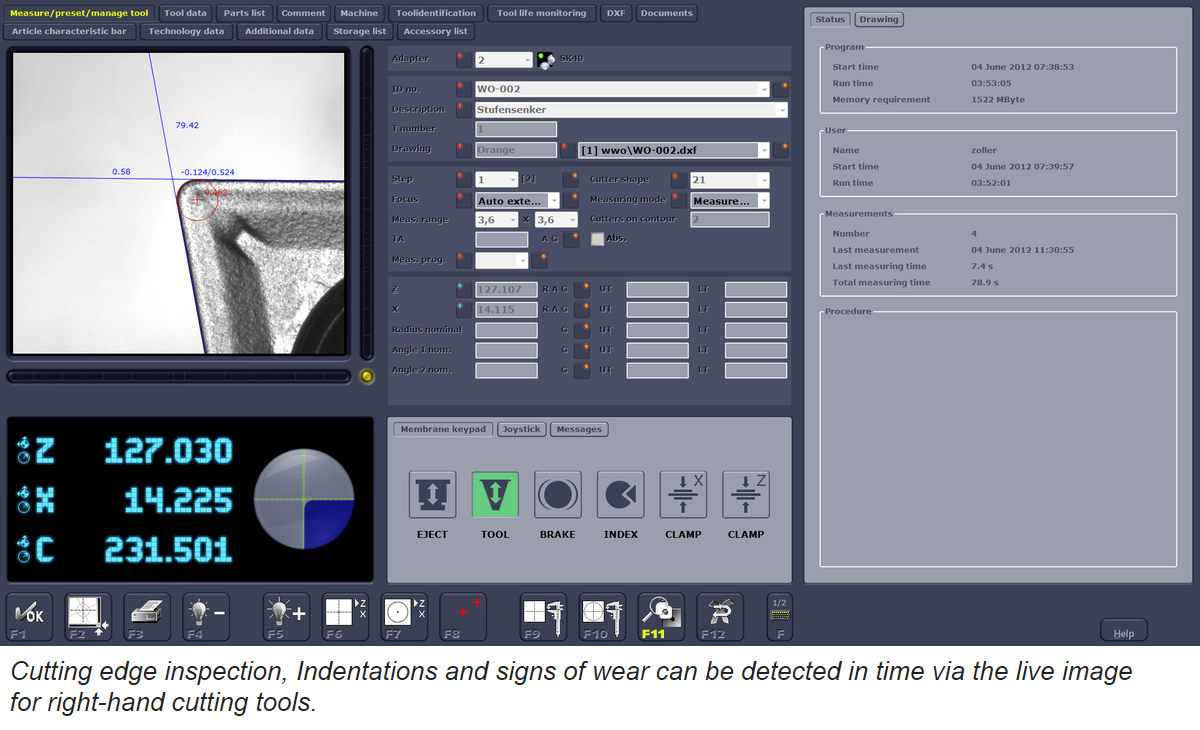

 Adjustable intensity LED lighting for brilliant cutting edge display
   and inspection

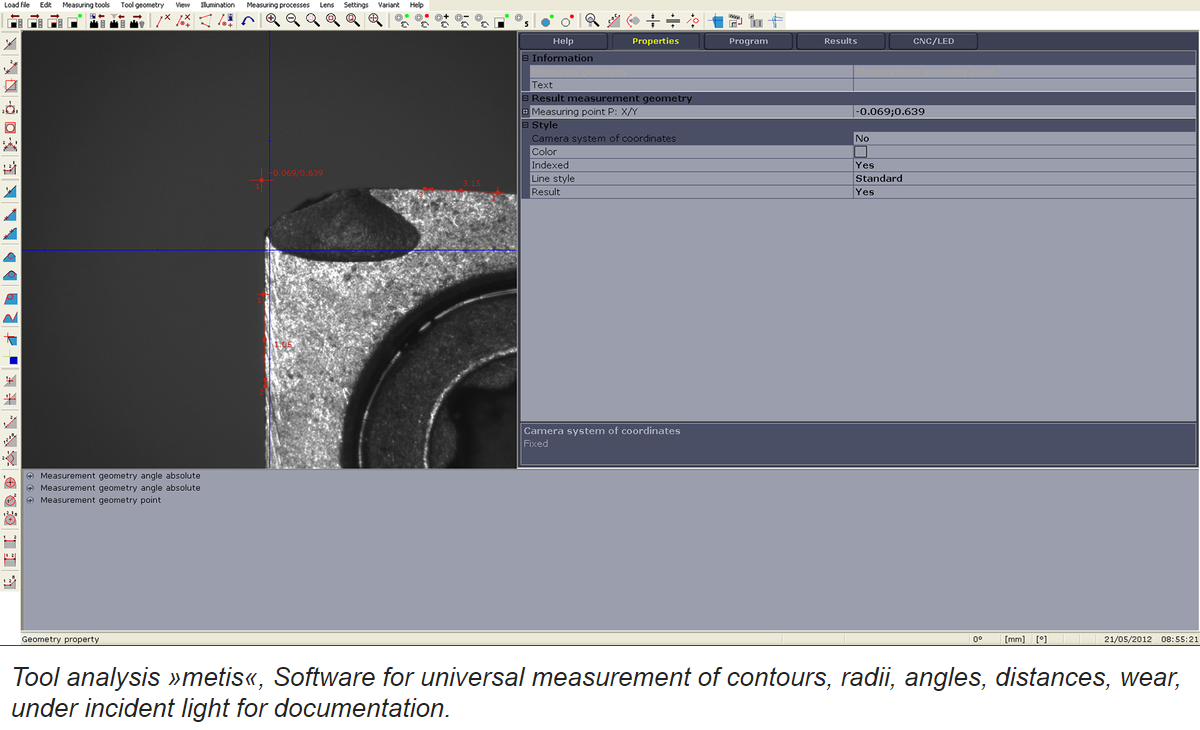

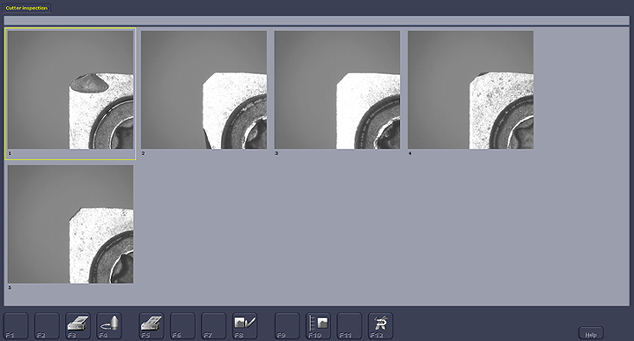

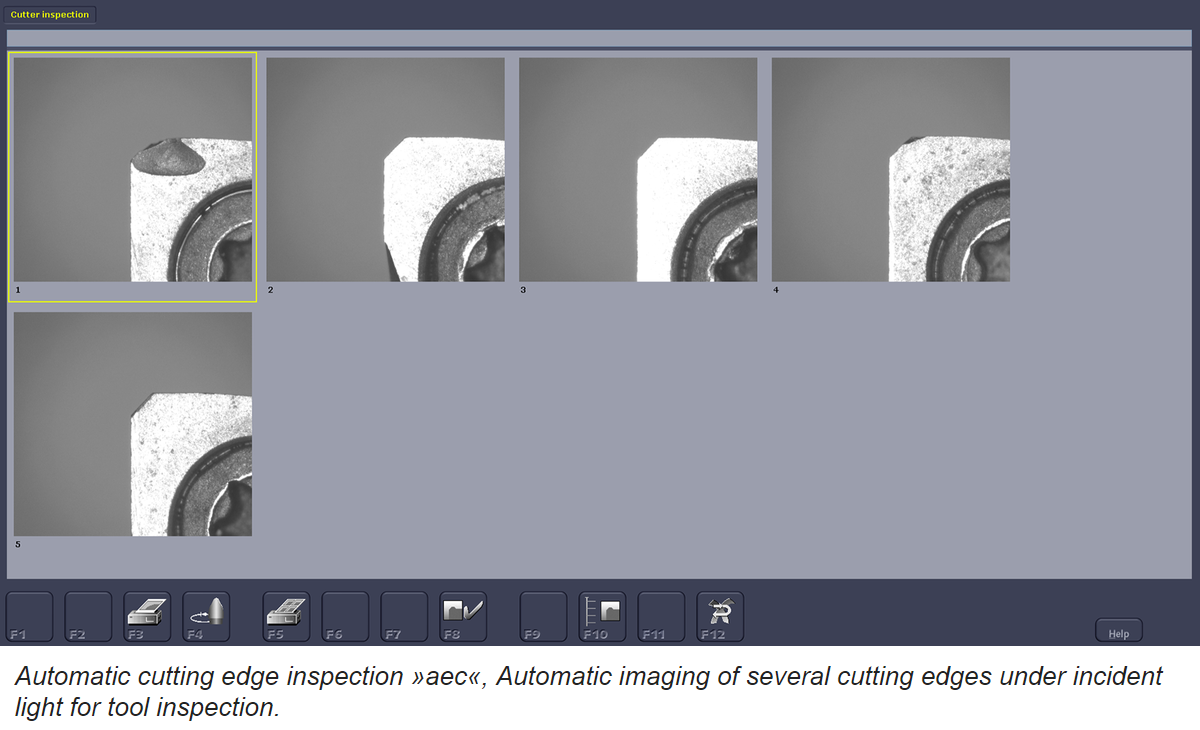

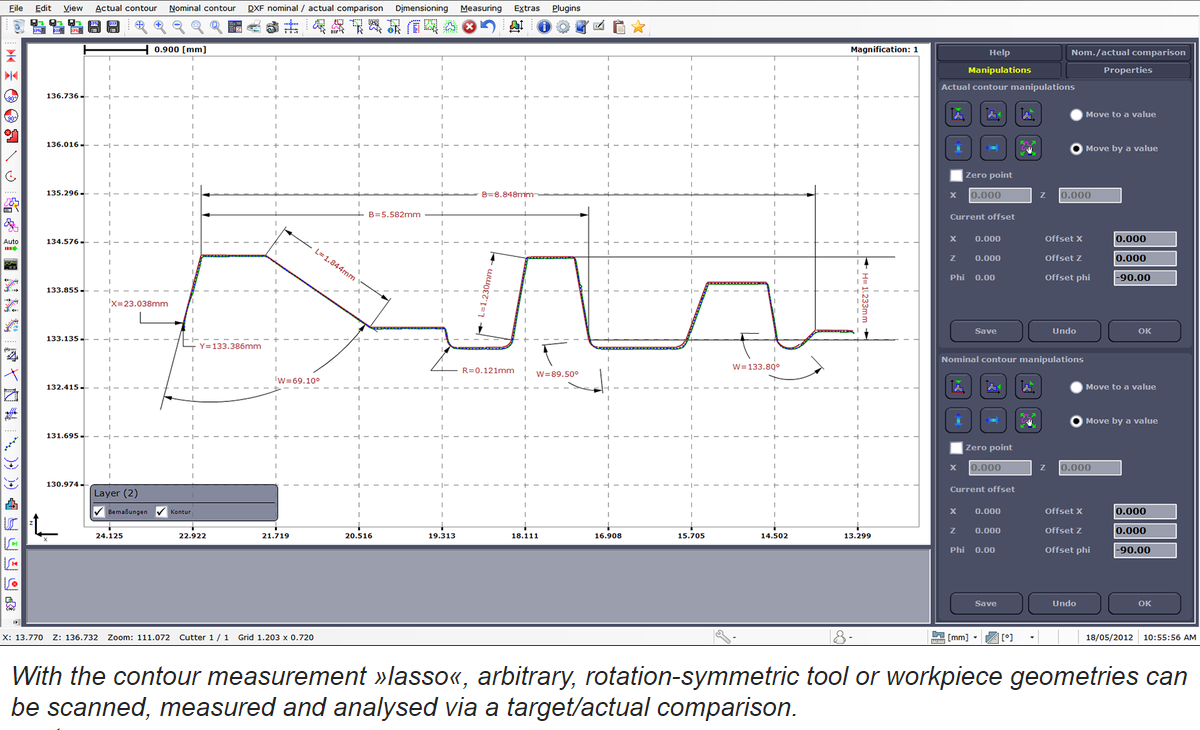

 Inspect and measure tools in transmitted and incident light with
   »metis« tool inspection and measurement

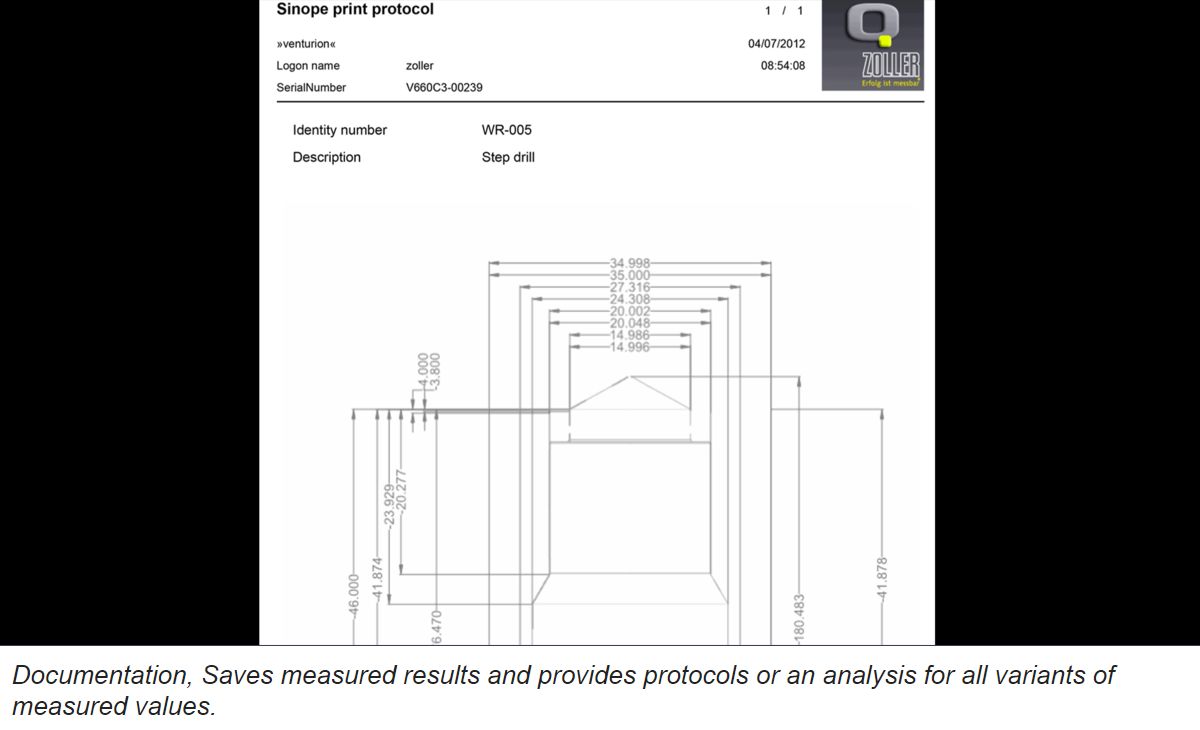

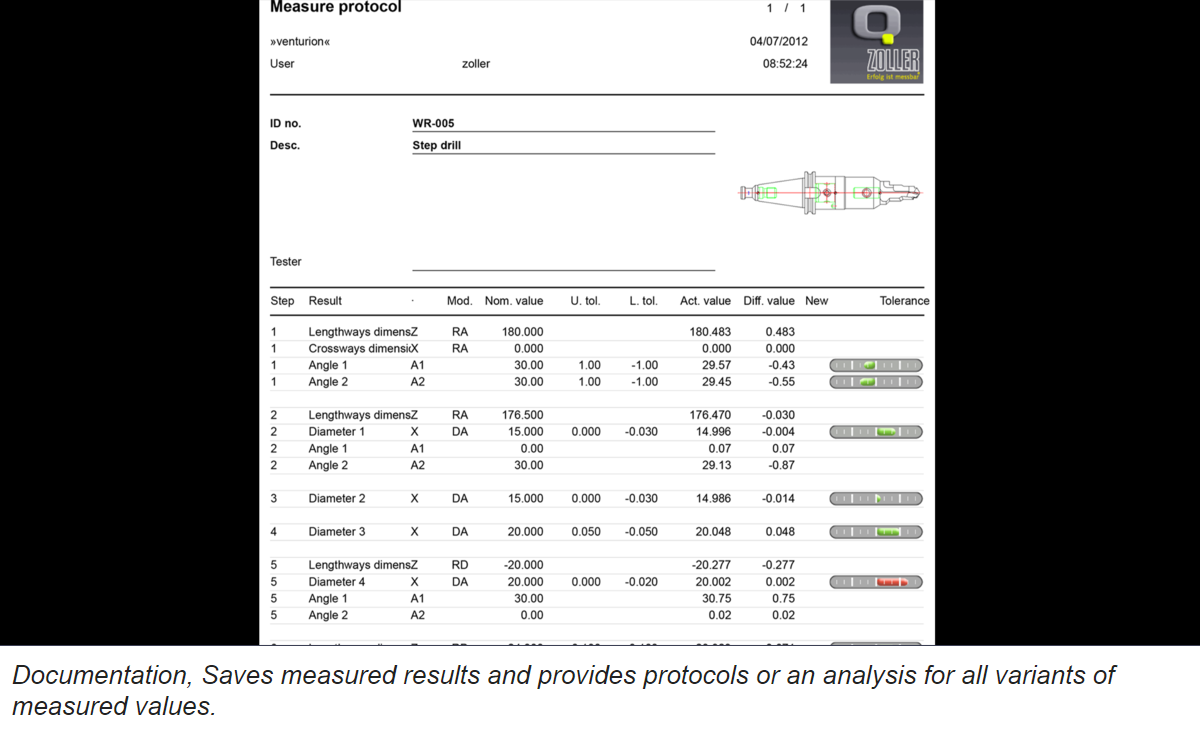

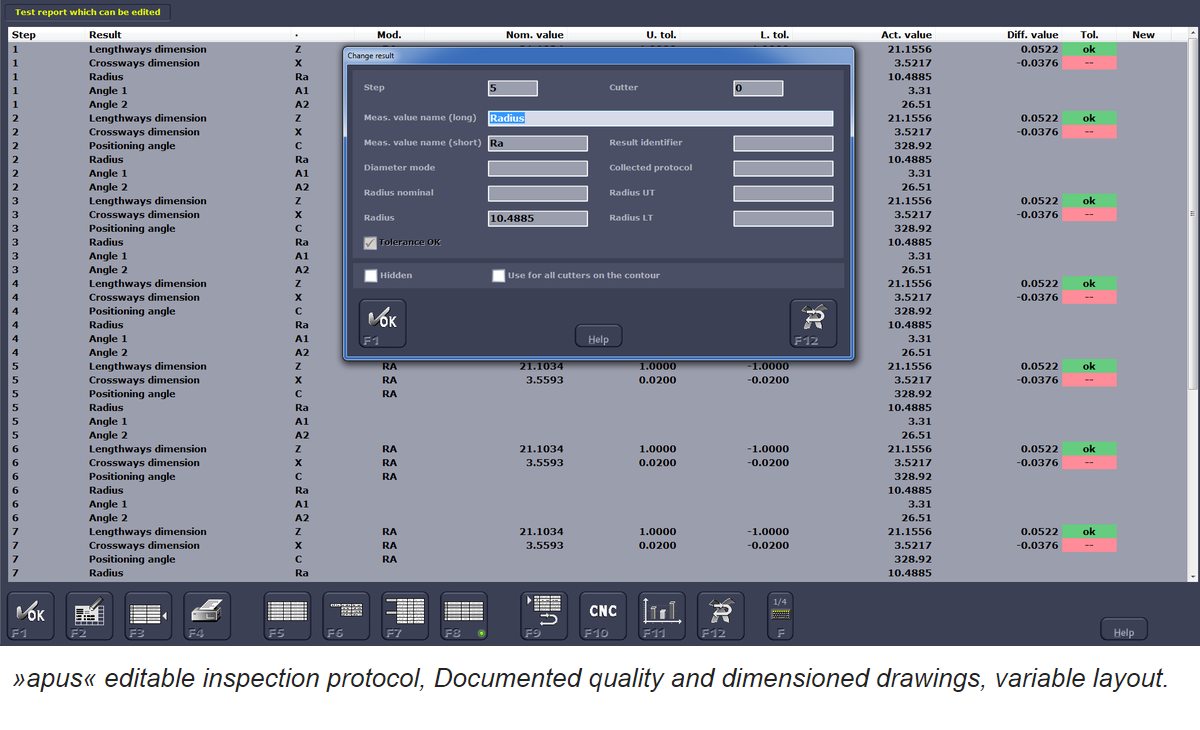

 Simple creation of test reports for detailed documentation

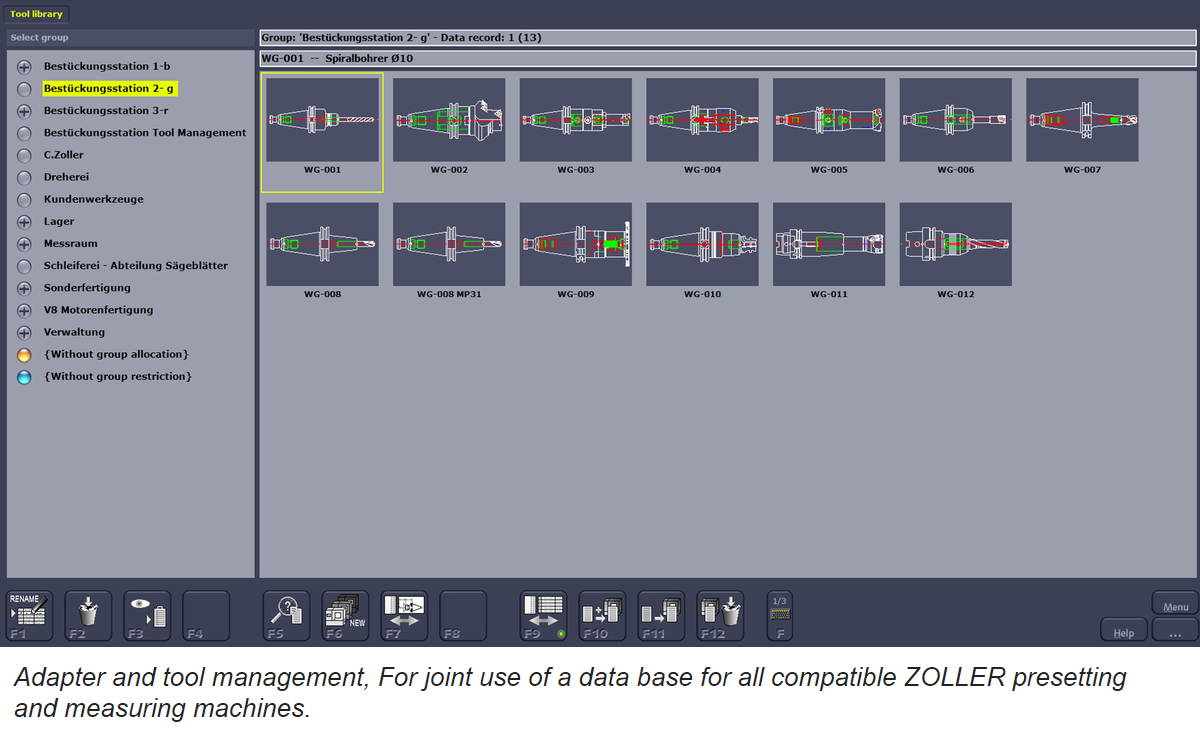

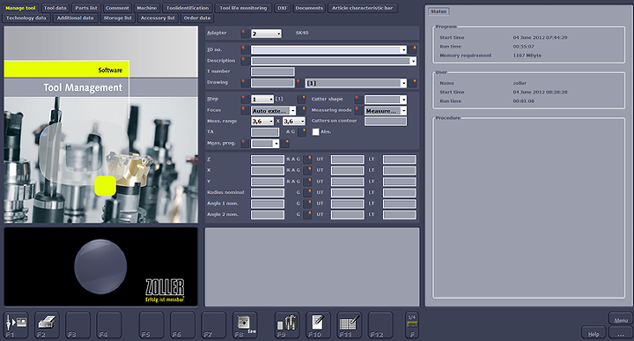

 Create order by organization

 Management of:

 Tool Lists
 NC programs
   Individual components
 DIN 4000 subject characteristics
 Ordering Systems


 The correct setting

 Here you can carry out system setting and find useful information:

 User settings

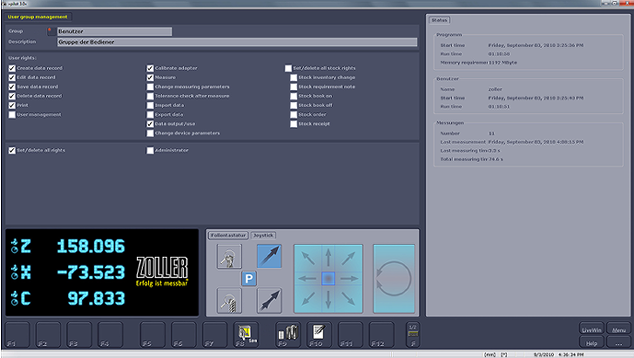

 User rights management

 Data import/export settings

 Parameter settings for special functions

 Information on servicing and maintenance

Product Highlights

Inspection Programs

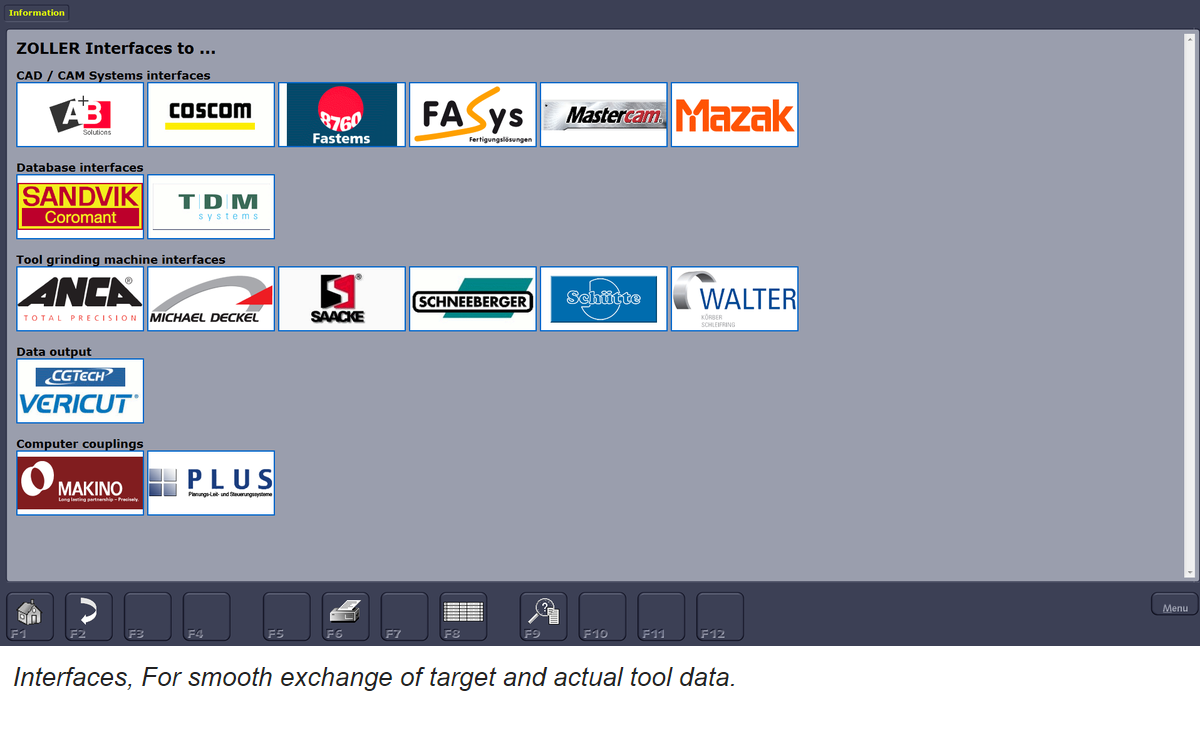

Data Input / Output
