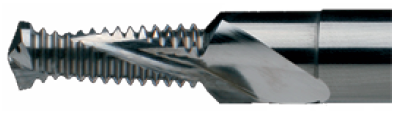

Ferg Thread mill BGF (MF)

Solid carbide drill thread milling
cutters for internal threads - BGF
ISO Metric fine thread DIN 13



											Shank = DIN 6535 HA
											Coating
											Bright (without Coating or without Surface treatment)	TiAlN coating (Titanium Aluminium Nitride)	Bright (without Coating or without Surface treatment)	TiAlN coating (Titanium Aluminium Nitride)
1.5 x D
											ORDER Nr.
											BGF1- HA	BGF1-A- HA	BGF1- RA-HA	BGF1-A- RA-HA

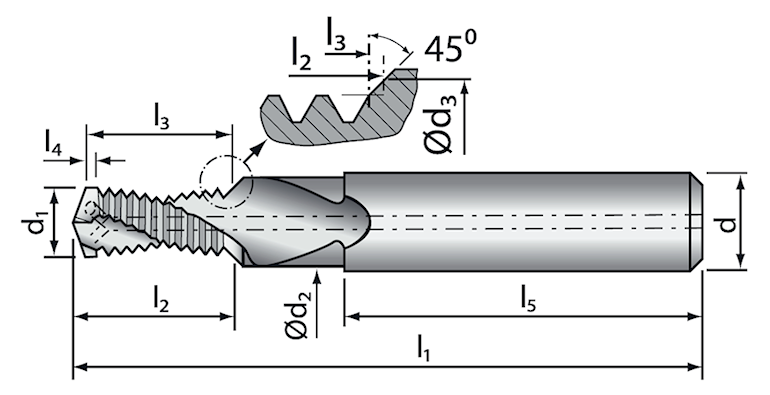

l₁ mm	l₂ mm	l₃ mm	l₄ mm	l₅ mm	d mm	d₁ mm	d₂ mm	d₃ mm	D x P mm	★	EDP = Nr. + ★
l₁ mm	l₂ mm	l₃ mm	l₄ mm	l₅ mm	d mm	d₁ mm	d₂ mm	d₃ mm	D x P mm	★	6010102000*	6010102012*	6011102000*	6011102012*
49	7.6	7	0.5	36	6	3.5	4.5	4.3	M 4 x 0.5	042
55	9.3	8.5	0.5	36	6	4.5	5.5	5.3	M 5 x 0.5	052
62	11.3	10.4	0.8	36	8	5.25	6.6	6.3	M 6 x 0.75	063	■	■	■	■
74	15	13.8	1	40	10	7	9	8.3	M 8 x 1	084	■	■	■	■
79	18.4	16.8	1	45	12	9	11	10.3	M 10 x 1	104	■	■	■	■
79	18.8	17.2	1.3	45	12	8.75	11	10.3	M 10 x 1.25	105	■	■	■	■
89	20.8	18.8	1	45	14	11	13.5	12.3	M 12 x 1	124
89	22.9	20.9	1.3	45	14	10.75	13.5	12.3	M 12 x 1.25	125	■	■	■	■
89	22.5	20.5	1.5	45	14	10.5	13.5	12.3	M 12 x 1.5	125	■	■	■	■
102	25.8	23.6	1.5	48	16	12.5	15.5	14.3	M 14 x 1.5	146	■	■	■	■
102	29.2	26.6	1.5	48	18	14.5	17.5	16.3	M 16 x 1.5	166	■	■	■	■
2 x D
											ORDER Nr.
											BGF2- HA	BGF2- A-HA	BGF2- RA-HA	BGF2-A- RA-HA
l₁ mm	l₂ mm	l₃ mm	l₄ mm	l₅ mm	d mm	d₁ mm	d₂ mm	d₃ mm	D x P mm	★	EDP = Nr. + ★
l₁ mm	l₂ mm	l₃ mm	l₄ mm	l₅ mm	d mm	d₁ mm	d₂ mm	d₃ mm	D x P mm	★	6010202000*	6010202012*	6011202000*	6011202012*
49	9.6	9	0.5	36	6	3.5	4.5	4.3	M 4 x 0.5	042
55	11.8	11	0.5	36	6	4.5	5.5	5.3	M 5 x 0.5	052
62	14.3	13.4	0.8	36	8	5.25	6.6	6.3	M 6 x 0.75	063	■	■	■	■
74	19	17.8	1	40	10	7	9	8.3	M 8 x 1	084	■	■	■	■
79	23.4	21.8	1	45	12	9	11	10.3	M 10 x 1	104	■	■	■	■
79	23.8	22.2	1.3	45	12	8.75	11	10.3	M 10 x 1.25	105	■	■	■	■
89	27.8	25.8	1	45	14	11	13.5	12.3	M 12 x 1	124
89	27.9	25.9	1.3	45	14	10.75	13.5	12.3	M 12 x 1.25	125	■	■	■	■
89	28.5	26.5	1.5	45	14	10.5	13.5	12.3	M 12 x 1.5	125	■	■	■	■
102	31.8	29.6	1.5	48	16	12.5	15.5	14.3	M 14 x 1.5	146	■	■	■	■
102	36.7	34.1	1.5	48	18	14.5	17.5	16.3	M 16 x 1.5	166	■	■	■	■
■ = Stock EDP: BGF1-HA M 10x1 = 6010102000104
Note: If the thread milling cutter is needed with shank DIN 6535 type HB or HE , the letters HA in reference must be changed by HB or HE.

We reserve the right to make technical changes.
