Threading TapsISO Metric coarse thread DIN 13
 Any material with at least 12% elongation(cold forming)    |
173 High speed steel class E with 3%vanadium 1.3344 (EMo5V3) (M-3/2) 175-675  Special High speed steel class E with vanadium |
 DIN 371 AC675A2000267517 |

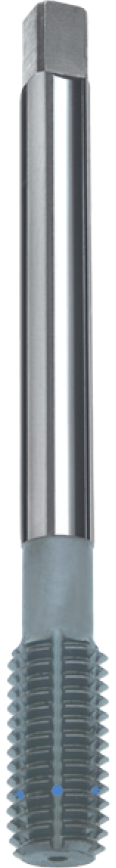

 DIN 376 AC6752500267517 |

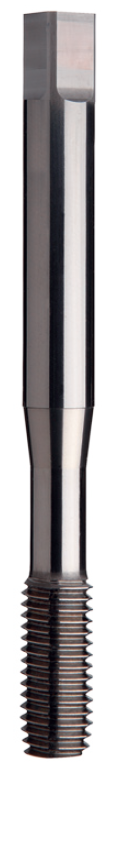

 DIN 371 775A2000077500 |

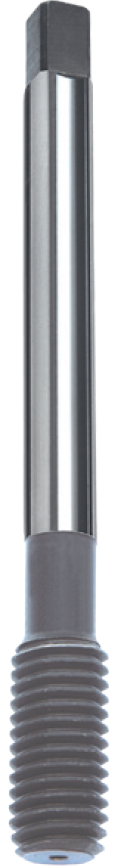

 DIN 376 7752500077500 |
DIN 371 775A 2000277500 |
DIN 376 775 2500277500 |

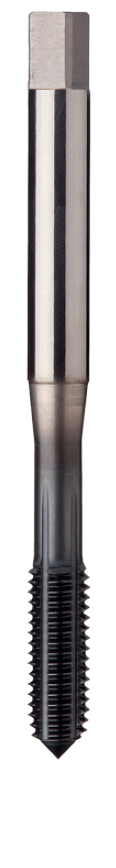

 DIN 371 A775A2000077512 |

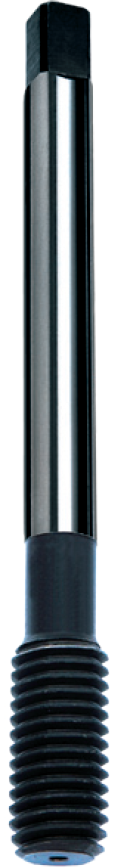

 DIN 376 A7752500077512 |
DIN 371 A775A 2000277512 |
DIN 376 A775 2500277512 |
|||||||||
HOLE |
≤ 3 x d1 Blind and through hole |
≤ 3 x d1Blind and through hole |
≤ 3 x d1Blind and through hole |
≤ 3 x d1Blind and through hole |
≤ 3 x d1Blind and through hole |
|||||||||||||||
 Chamfer lead acc. to DIN 2197 |
C = 2.5xP | C = 2.5xP | C = 2.5xP | C = 2.5xP | C = 2.5xP | |||||||||||||||
| LIMIT | 6GX | 6HX | 6GX | 6HX | 6GX | |||||||||||||||
| COATING |  AlCrN coating(Aluminium Chrome Nitride) |
 Bright (without Coating orwithout Surface treatment) |
Bright (without Coating or without Surface treatment) |
 TiAlN coating(Titanium Aluminium Nitride) |
TiAlN coating (Titanium Aluminium Nitride) |
|||||||||||||||
| DIN | 371 | 376 | 371 | 376 | 371 | 376 | 371 | 376 | 371 | 376 | ||||||||||
| ORDER No. EDP = Nr.+ ★ |
DIN 371 2000267517* AC675A |
DIN 371 2000077500* 775A |
DIN 371 2000277500* 775A |
DIN 371 2000077512* A775A |
DIN 371 2000277512* A775A |
|||||||||||||||
| l1 mm |
l2 mm |
l3 mm |
DIN 371 | DIN 376 |  mm |
d1 mm |
P mm |
★ | DIN 376 2500267517* AC675 |
DIN 376 2500077500* 775 |
DIN 376 2500277500* 775 |
DIN 376 2500077512* A775 |
DIN 376 2500277512* A775 |
|||||||
| d2 mm |
a mm |
d2 mm |
a mm |
|||||||||||||||||
| Z | Z | Z | Z | Z | ||||||||||||||||
| 45 | 9 | - | 2.8 | 2.1 | 1.82-1.78 | M 2 | (0.4) | 020 | 3 | 3 | 3 | 3 | ||||||||
| 45 | 9 | - | 2.8 | 2.1 | 2.02-1.98 | M 2.2 | (0.45) | 022 | 3 | 3 | 3 | 3 | ||||||||
| 45 | 9 | - | 2.8 | 2.1 | 2.12-2.08 | M 2.3 | (0.4) | 023 | 3 | 3 | 3 | 3 | ||||||||
| 50 | 9 | - | 2.8 | 2.1 | 2.32-2.28 | M 2.5 | (0.45) | 025 | 3 | 3 | 3 | 3 | ||||||||
| 50 | 9 | - | 2.8 | 2.1 | 2.42-2.38 | M 2.6 | (0.45) | 026 | 3 | 3 | 3 | 3 | ||||||||
| 56 | 11 | 16 | 3.5 | 2.7 | 2.2 | - | 2.83-2.77 | M 3 | (0.5) | 030 | 3 ▼ | 3 ▼ | 3 ▼ | 3 ▼ | ||||||
| 56 | 12 | 17 | 4 | 3 | 2.5 | 2.1 | 3.28-3.22 | M 3.5 | (0.6) | 035 | 4 | 4 | 4 | 4 | ||||||
| 63 | 13 | 19 | 4.5 | 3.4 | 2.8 | 2.1 | 3.73-3.67 | M 4 | (0.7) | 040 | 4 | 4 ▼ | 4 ▼ | 4 ▼ | 4 ▼ | |||||
| 70 | 14 | 22 | 6 | 4.9 | 3.5 | 2.7 | 4.18-4.12 | M 4.5 | (0.75) | 045 | 4 | 4 | 4 | 4 | 4 | |||||
| 70 | 15 | 29 | 6 | 4.9 | 3.5 | 2.7 | 4.68-4.62 | M 5 | (0.8) | 050 | 5 ■ | 5 ▼ | 5 ▼ | 5 ▼ | 5 ▼ | |||||
| 80 | 17 | 30 | 6 | 4.9 | 4.5 | 3.4 | 5.60-5.50 | M 6 | (1) | 060 | 5 ■ | 5 ▼ | 5 ▼ | 5 ▼ | 5 ▼ | |||||
| 80 | 17 | 31 | 7 | 5.5 | 5.5 | 4.3 | 6.60-6.50 | M 7 | (1) | 070 | 5 | 5 | 5 | 5 | 5 | |||||
| 90 | 20 | 35 | 8 | 6.2 | 6 | 4.9 | 7.45-7.35 | M 8 | (1.25) | 080 | 5 ■ | 5 ▼ | 5 ▼ | 5 ▼ | 5 ▼ | |||||
| 100 | 22 | 38 | 10 | 8 | 7 | 5.5 | 9.35-9.25 | M 10 | (1.5) | 100 | 5 ■ | 5 ▼ | 5 ▼ | 5 ▼ | 5 ▼ | |||||
| 110 | 24 | 9 | 7 | 11.25-11.15 | M 12 | (1.75) | 120 | 6 ■ | 6 ▼ | 6 ▼ | 6 ▼ | 6 ▼ | ||||||||
| 110 | 26 | 11 | 9 | 13.15-13.05 | M 14 | (2) | 140 | 6 | 6 | 6 | 6 | 6 | ||||||||
| 110 | 27 | 12 | 9 | 15.15-15.05 | M 16 | (2) | 160 | 6 | 6 | 6 | 6 | 6 | ||||||||
| 125 | 30 | 14 | 11 | 16.95-16.85 | M 18 | (2.5) | 180 | 6 | 6 | 6 | 6 | 6 | ||||||||
| 140 | 32 | 16 | 12 | 18.95-18.85 | M 20 | (2.5) | 200 | 6 | 6 | 6 | 6 | 6 | ||||||||
| 140 | 32 | 18 | 14.5 | 20.95-20.85 | M 22 | (2.5) | 220 | 6 | 6 | 6 | 6 | 6 | ||||||||
| 160 | 34 | 18 | 14.5 | 22.70-22.60 | M 24 | (3) | 240 | 6 | 6 | 6 | 6 | 6 | ||||||||
| ■ = Stock | EDP: T175A M 6 = 2000017510060 | |||||||||||||||||||
We reserve the right to make technical changes.
