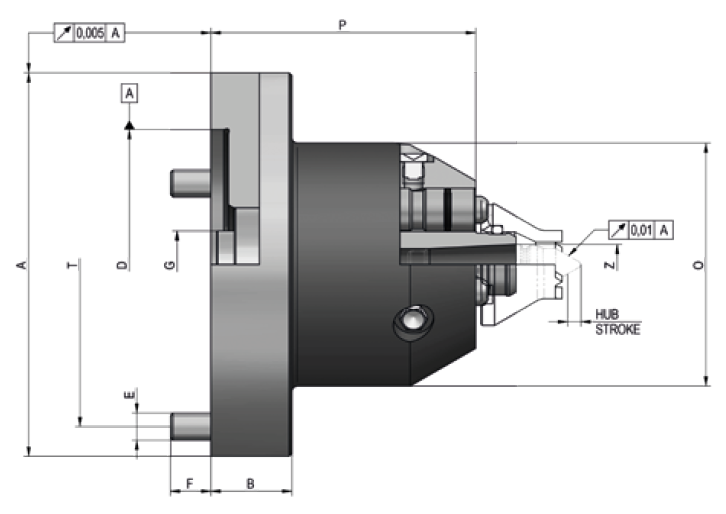

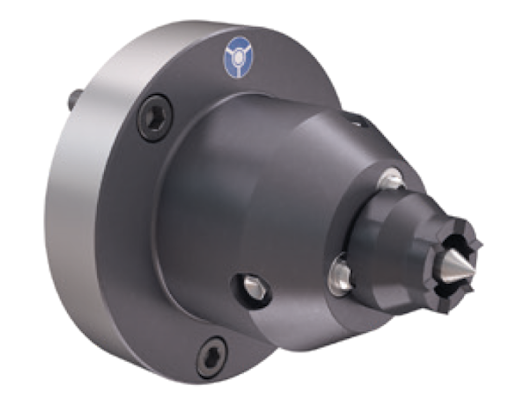

Power-operated Face Drivers CoK-AE - power-operated  |
| APPLICATION For machining workpieces with high unbalance, heavy weight, high chip removal or irregular cutting. Can be used in clockwise and counterclockwise rotation. Radially backlash-free. TYPE Force-actuated face driver with mechanical pressure compensation. Clamping circuit Ø 8-80 mm. Workpiece weight max. 350kg. TECHNICAL FEATURES - The drivers are pressed against the workpiece with force-actuation |
 |
| CUSTOMER BENEFITS » Maximum concentricity deviation of 0.01 mm for maximum precision » Workpiece longitudinal stop realized in centering » Low centering force, even at max. cutting load » Maximum flexibility thanks to universal exchange of driving disc and centre point |
|
| C15 Basic body (without centre, without draw-off nut), mechanical
|

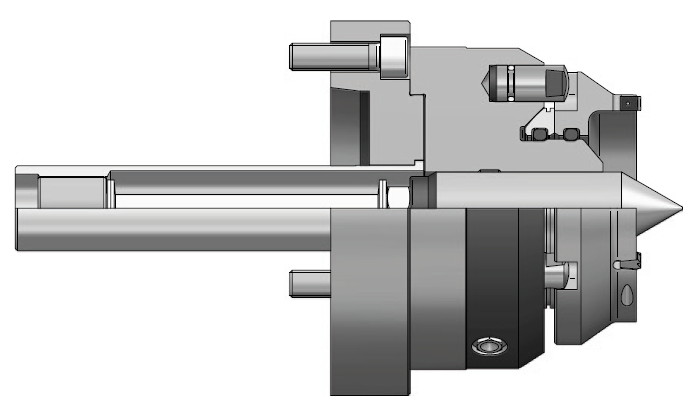

| Special Solutions CoM - mechanical pressure compensation with driving disc |
|
| APPLICATION For clamping large and heavy workpieces, as well as workpieces with extremely uneven faces. TYPE Basic body and adapter plate with disc spring package and morse taper or short taper. CUSTOMER BENEFITS » Resilient, stable centre point, axially adjustable » Workpiece weight up to 500 kg » Clamping circuit diameter 50-250 mm » Interchangeable driving disc |
 |

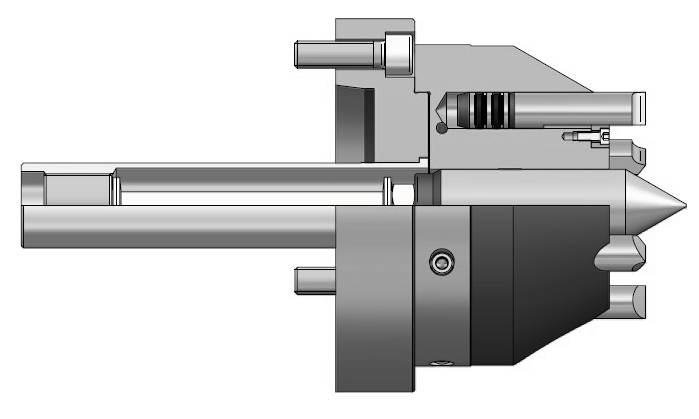

| CoB - hydraulic pressure compensation with driving pin |
|
| APPLICATION For clamping large and heavy workpieces, as well as workpieces with extremely uneven faces. TYPE Basic body with morse taper or short taper. Adapter plate with disc spring package. CUSTOMER BENEFITS » Resilient, stable centre point, axially adjustable » Workpiece weight up to 500 kg / 1000 kg » Clamping circuit diameter 63-160 mm |
 |
We reserve the right to make technical changes.
