   Pneumatical Actuated  Hydraulical Actuated  External Gripping  Internal Gripping Parallel Gripping  Gripping Force Safety Device External Gripping  Gripping Force Safety Device Internal Gripping |

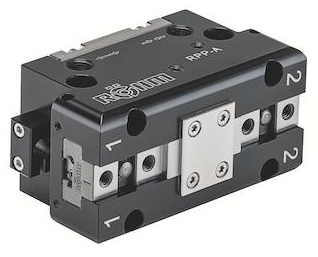

2-Jaw Parallel Gripper RPP-A 50 to RPP-A 160  |
APPLICATION Universal gripping of round and angular workpieces with two parallel gripper fingers for handling with robots or portals. TYPE Available from sizes 50 to 160, each in two stroke variants. Optionally with gripping force safety device and/or dirt cover. Fastening of the gripper fingers via tongue and groove. |
 |
| TECHNICAL FEATURES - Centrically clamping in compact design made of high-strength, hard-coated aluminium alloy - All functional parts made of hardened steel for maximum service life - Wedge hook principle with pneumatic actuation (hydraulic actuation available on request) - Position monitoring with inductive or magnetic position sensors - Optionally available with FKM seals for higher temperatures up to 150°C (on request) - Integrable purge air connection to prevent contamination CUSTOMER BENEFITS » High gripping force with low dead weight and compact design » Maximum flexibility thanks to versatile connection and fastening options » Long service life and high reliability thanks to specially ground base jaws in proven T-slot guide |
We reserve the right to make technical changes.
