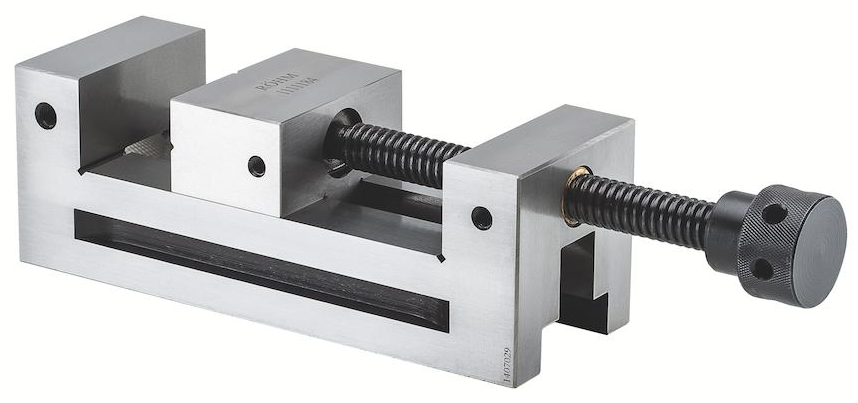

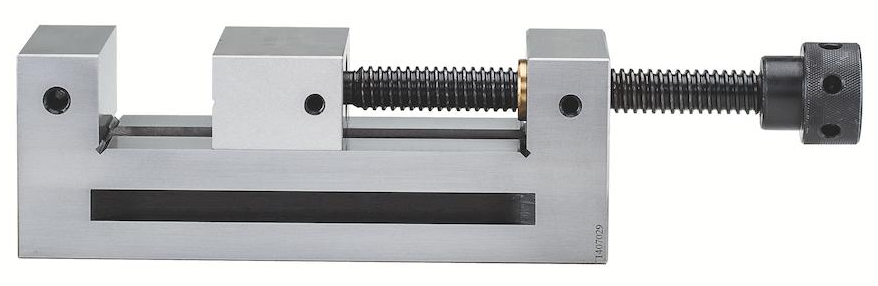

Grinding and Inspection Vices
PL-G

APPLICATION
Mainly in tool construction on grinding, milling and engraving machines, on jig boring machines, for measuring and control work and for production operations requiring high clamping precision.
TECHNICAL FEATURES
- Horizontally and vertically ground prism
- Made of alloyed tool steel, hardened and very finely ground

CUSTOMER BENEFITS
» Clamping and unclamping with threaded spindle




A29
PL-G

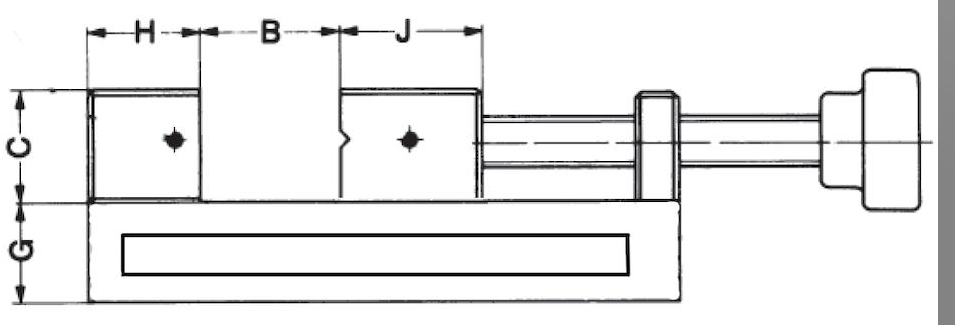

 Item No.  1111182  1111183  1111184
 Size  0  1  2
 Squareness1) / 100 mm  0.005  0.005  0.005
 Parallelism2) / 100 mm  0.002  0.002  0.002
 Jaw width mm  60  73  88
 B mm  55  100  125
 Total height mm    74  88
 C mm  25  35  40
 Length body mm  110  210  250
 G mm  25  32  48
 H mm  18  32  35
 J mm  22  46  55
 Weight kg  1.6  4  7.6
1) Base to stationary jaw clamping surface
2) Base to upper guide edge






We reserve the right to make technical changes.
