   Pneumatical Actuated Pipe Bar Flange Disc Asymmetrical Workpiece |

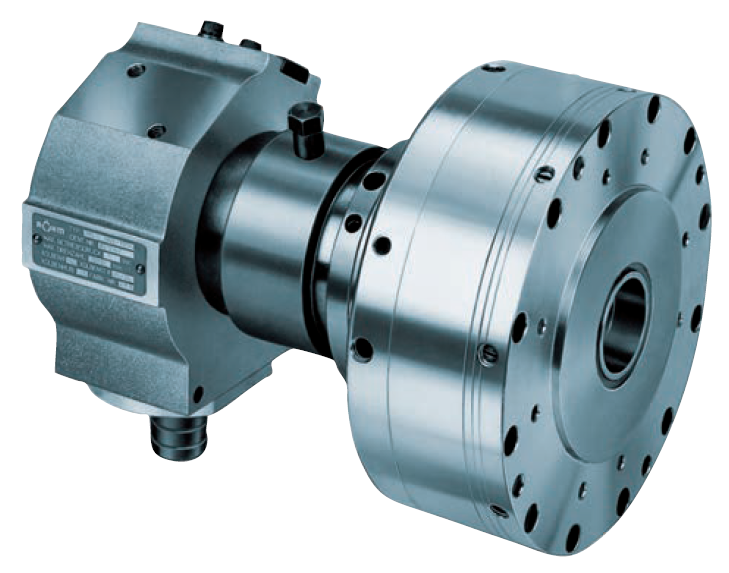

Air-operated Cylinders with Through-hole LHS-L  |
APPLICATION Pneumatic actuation of power chucks/collet chucks with through-hole. TYPE Hollow clamping cylinders for actuation pressures from 1.5-8 bar. TECHNICAL FEATURES - Stroke control via inductive proximity switches (not included in the scope of delivery) - Coolant collector - Can also be actuated during rotation |
| CUSTOMER BENEFITS » Short design and low weight ensure small machine spindle load and also allow high speeds » Thanks to the large through-hole, optimally suited for machining bar material » Operational safety thanks to safety mechanism, guaranteed even if there is a pressure drop during spindle rotation |
We reserve the right to make technical changes.
