Ferg Threading Taps MF T121, TV127, W121, W127, W621, W627

Threading Taps
ISO Metric fine thread DIN 13

Long-chipping materials up to 1.300 N/mm² or 40 HRC Only for synchronous processing (rigid tapping)										Special High speed steel class E with vanadium		DIN 371 T121A 2002012110	DIN 374 T121 2502012110	DIN 371 W121A 2002012114	DIN 374 W121 2502012114	DIN 371 W621A 2002062114	DIN 374 W621 2502062114	DIN 371 TV127A 2002012716	DIN 374 TV127 2502012716	DIN 371 W127A 2002012714	DIN 374 W127 2502012714	DIN 371 W627A 2002062714	DIN 374 W627 2502062714
										HOLE		≤ 3 x d₁ Through hole		≤ 3 x d₁ Through hole		≤ 3 x d₁ Through hole		≤ 3 x d₁ Blind hole		≤ 3 x d₁ Blind hole		≤ 3 x d₁ Blind hole
										Chamfer lead acc. to DIN 2197		B = 4xP		B = 4xP		B = 4xP		C = 2.5xP		C = 2.5xP		C = 2.5xP
										LIMIT		ISO 2 (6H)		ISO 2 (6H)		ISO 2 (6H)		ISO 2 (6H)		ISO 2 (6H)		ISO 2 (6H)
										COATING		TiN coating (Titanium nitride)		TiAlN+WC/C coating (Titanium Aluminium Nitride + Tungsten carbide)		TiAlN+WC/C coating (Titanium Aluminium Nitride + Tungsten carbide)		TiN coating (Titanium nitride)+ Steam oxide surface treatment		TiAlN+WC/C coating (Titanium Aluminium Nitride + Tungsten carbide)		TiAlN+WC/C coating (Titanium Aluminium Nitride + Tungsten carbide)
										DIN		371	374	371	374	371	374	371	374	371	374	371	374
										ORDER No. EDP = Nr.+ ★		DIN 371 2002012110* T121A		DIN 371 2002012114* W121A		DIN 371 2002062114* W621A		DIN 371 2002012716* TV127A		DIN 371 2002012714* W127A		DIN 371 2002062714* W627A

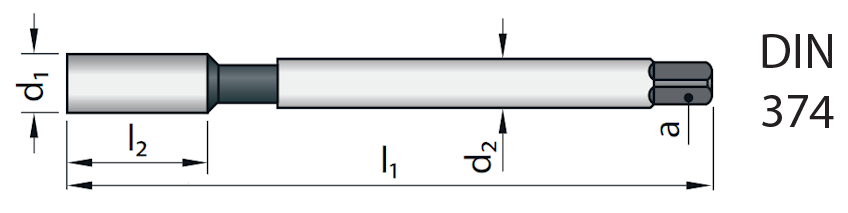

l₁ mm	l₂ mm	mm	l₃ mm	DIN 371		DIN 374		mm	d₁ x P mm		★	DIN 374 2502012110* T121		DIN 374 2502012114* W121		DIN 374 2502062114* W621		DIN 374 2502012716* TV127		DIN 374 2502012714* W127		DIN 374 2502062714* W627
				d₂ mm	a mm	d₂ mm	a mm
												Z		Z		Z		Z		Z		Z
56	11	5	18	3.5	2.7	2.2	-	2.65	M 3	x 0.35	031	3		3		3		3		3		3
63	13	7	21	4.5	3.4	2.8	2.1	3.5	M 4	x 0.5	042	3		3		3		3		3		3
70	11	8	25	6	4.9	3.5	2.7	4.5	M 5	x 0.5	052	3		3		3		3		3		3
80	13	10	30	6	4.9	4.5	3.4	5.5	M 6	x 0.5	062	3		3		3		3		3		3
80	13	10	30	6	4.9	4.5	3.4	6.2	M 6	x 0.75	063	3		3		3		3		3		3
80	13	13	31	7	5.5	5.5	4.3	7.2	M 7	x 0.75	073	3		3		3		3		3		3
80	13	12	30	8	6.2	6	4.9	7.5	M 8	x 0.5	082	3		3		3		3		3		3
80	13	12	30	8	6.2	6	4.9	7.2	M 8	x 0.75	083	3		3		3		3		3		3
90	20	12	35	8	6.2	6	4.9	7	M 8	x 1	084	3 ■		3 ■		3 ■		3 ■		3 ■		3 ■
90	20	12	35	9	7	7	5.5	8	M 9	x 1	094	3		3		3		3		3		3
90	16	14	35	10	8	7	5.5	9.2	M 10	x 0.75	103	3		3		3		3		3		3
90	16	14	35	10	8	7	5.5	9	M 10	x 1	104	3 ■		3 ■		3 ■		3 ■		3 ■		3 ■
100	22	15	38	10	8	7	5.5	8.8	M 10	x 1.25	105	3 ■		3 ■		3		3 ■		3 ■		3
100	22	16				9	7	11	M 12	x 1	124	3		3		3		3		3		3
100	22	16				9	7	10.5	M 12	x 1.5	126	3 ■		3 ■		3 ■		3 ■		3 ■		3 ■
100	22	20				11	9	13	M 14	x 1	144	3		3		3		3		3		3
100	22	20				11	9	12.5	M 14	x 1.5	146	3 ■		3 ■		3 ■		3 ■		3 ■		3 ■
100	22	20				12	9	15	M 16	x 1	164	4		4		4		4		4		4
100	22	20				12	9	14.5	M 16	x 1.5	166	4 ■		4 ■		4 ■		4 ■		4 ■		4 ■
110	25	25				14	11	17	M 18	x 1	184	4		4		4		4		4		4
110	25	22				14	11	16.5	M 18	x 1.5	186	4		4		4		4		4		4
125	25	25				16	12	19	M 20	x 1	204	4		4		4		4		4		4
125	25	22				16	12	18.5	M 20	x 1.5	206	4		4		4		4		4		4
125	25	25				18	14.5	21	M 22	x 1	224	4		4		4		4		4		4
125	25	25				18	14.5	20.5	M 22	x 1.5	226	4		4		4		4		4		4
140	28	22				18	14.5	22.5	M 24	x 1.5	246	4		4		4		4		4		4
												■ = Stock				EDP: T121 M 10x1 = 2502012110104

We reserve the right to make technical changes.
