Self-centering Steady Rests LUNIS- precision up to 5μ   |
| APPLICATION Automatically clamping, horizontal and vertical turning machines TYPE Support of long, slim turned parts for the highest accuracy up to 5 microns during turning |
| CUSTOMER BENEFITS » Modular system allows numerous combinations » Sealed housing as standard » Standard connection for sealing air |
|

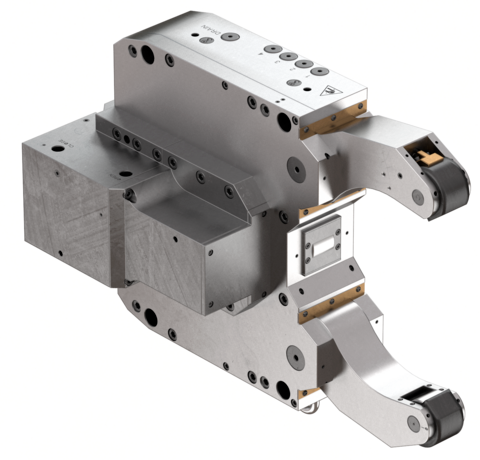

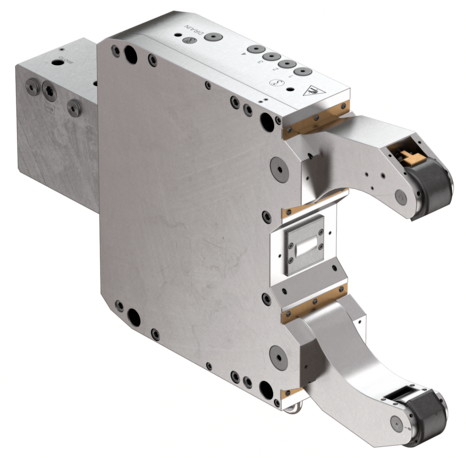

LUNIS-SERIES: The Lunis is a self-centering, hydraulically actuated steady rest. It is mainly used on CNC turning machines for supporting long, slim turned parts during machining. It enables concentricity and form tolerances of max. 5 μm to be maintained. Even in the basic version (from size 08-105), the Lunis is sealed as standard. For tight installation spaces, there is the Lunis-B version with a side-mounted cylinder. If required, compressed air can be used to prevent contamination from chips, coolant or debris. In the LUNIS-SC, coolant replaces compressed air for this function. Optional chip guards are available upon request to avoid scratching the surface of the workpiece. The Lunis replaces the Röhm steady rests from the SLZN and SLZNB series. The name "Lunis" comes from Latin (lat: Luna = moon) and refers to the figure of the crescent-shaped clamping arms. |
We reserve the right to make technical changes.
