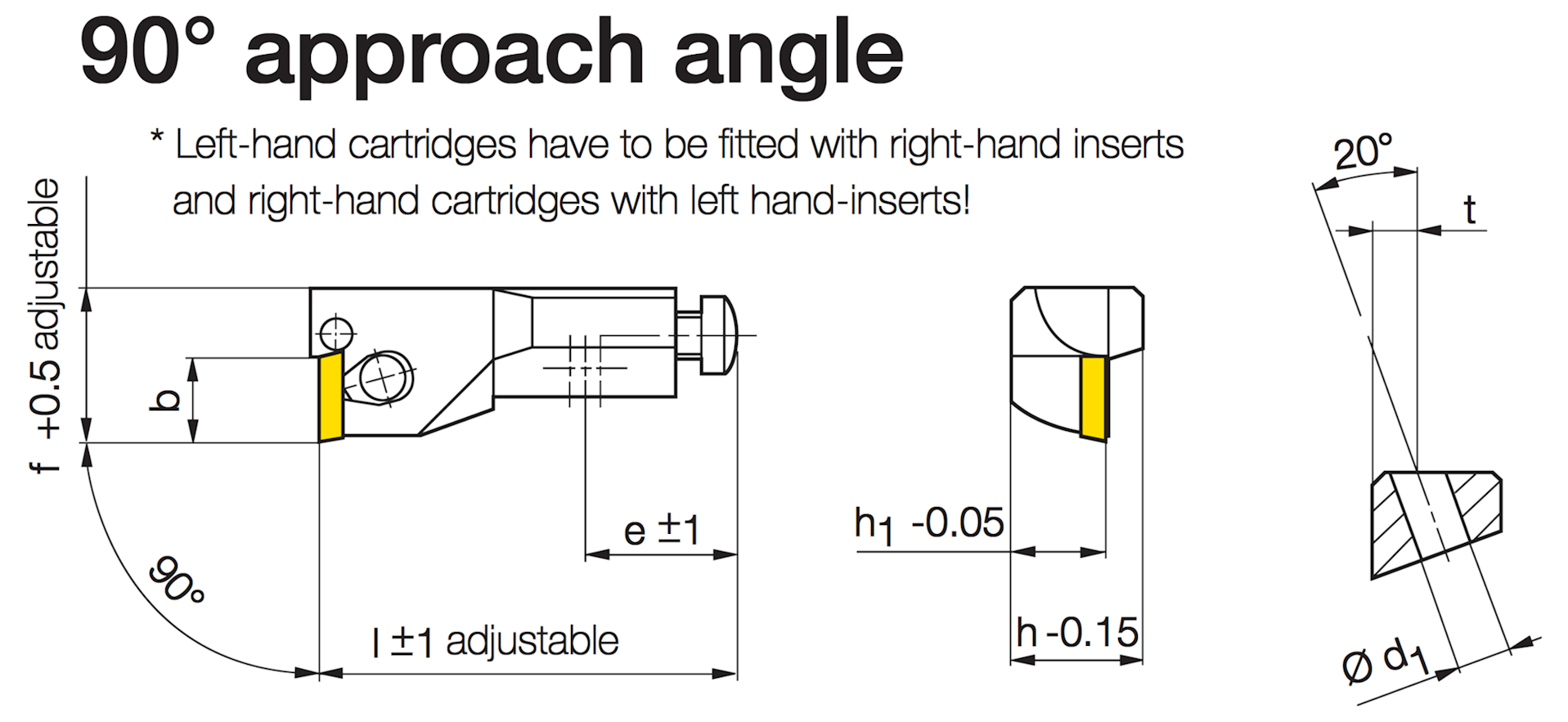

 90° approach angle |
Assembly measures |
 Spare Parts |
 Tapered adjustment |
Radial adjustment |
Cartridges |
 Inserts |
 |
Cartridges with tapered screw adjustment, μm-accurate adjustable |
| Part nr. 20040 |
|||||||||||
| Code | Drawing nr. | b | f | l | e | h1 | h | t | d1 | Inserts* | |
| 8,000 | H 1035-2088 0890R CBFP R 06 CA-04 |
3.9 | 8 | 25 | 12 | 6 | 8.5 | 3.5 | 4 | W1035-...L | |
| 10,000 | H 2850-2588 1090R CBFP R 08 CA-05 |
5 | 10 | 32 | 17 | 8 | 11 | 4.5 | 4.5 | W2850-...L | |
| 12,000 | H 3570-3088 1290R CBFP R 08 CA-07 |
7 | 12 | 40 | 17 | 8 | 11 | 4.5 | 4.5 | W357.-...L | |
| 14,000 | H 4090-3588 1490R CBFP R 10 CA-09 |
9 | 14 | 50 | 20 | 10 | 14 | 5 | 7 | W409.-...L | |
| H 3570-3088 1290 R/L are not included in the ISO-Norm | |||||||||||
| Part nr. 20041 |
|||||||||||
| Code | Drawing nr. | b | f | l | e | h1 | h | t | d1 | Inserts* | |
| 8,000 | H 1035-2088 0890L CBFP L 06 CA-04 |
3.9 | 8 | 25 | 12 | 6 | 8.5 | 3.5 | 4 | W1035-...L | |
| 10,000 | H 2850-2588 1090L CBFP L 08 CA-05 |
5 | 10 | 32 | 17 | 8 | 11 | 4.5 | 4.5 | W2850-...L | |
| 12,000 | H 3570-3088 1290L CBFP L 08 CA-07 |
7 | 12 | 40 | 17 | 8 | 11 | 4.5 | 4.5 | W357.-...L | |
| 14,000 | H 4090-3588 1490L CBFP L 10 CA-09 |
9 | 14 | 50 | 20 | 10 | 14 | 5 | 7 | W409.-...L | |
| ex stock on request Ordering example: 1 piece H 1035-2088 0890 R = Ordering number: 20040 8,000 |
|||||||||||
We reserve the right to make technical changes.
