Zoller Venturion

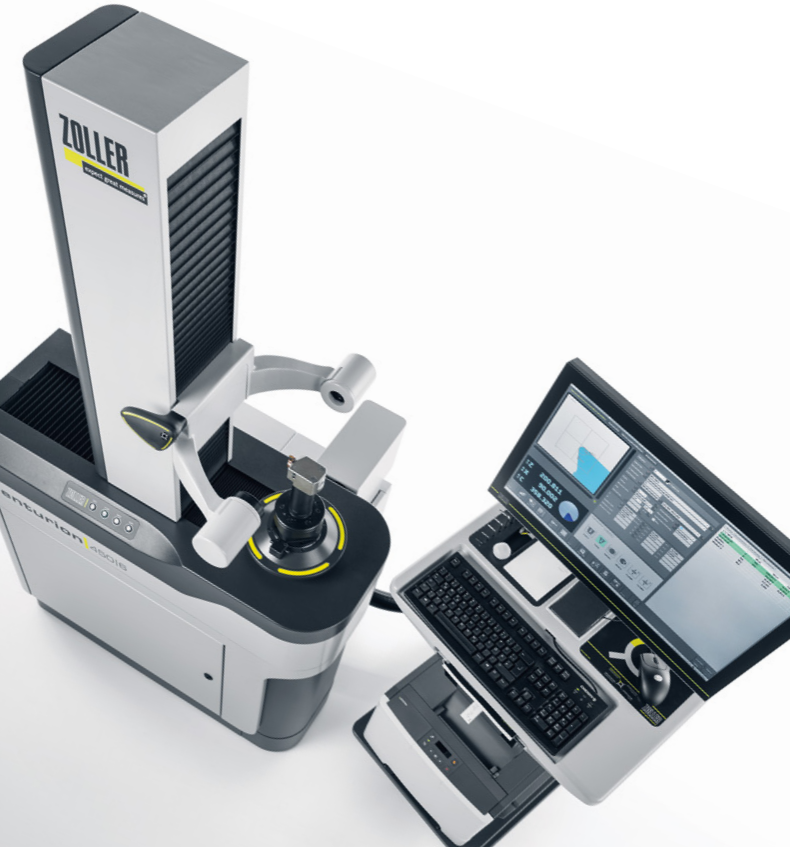

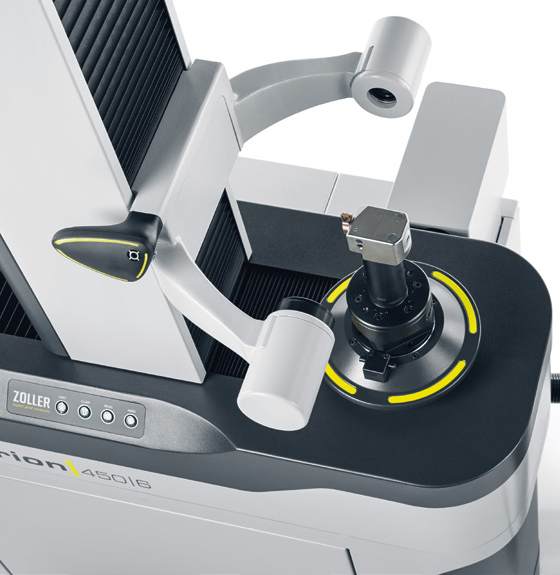

The premium presetting and measuring machine for tools of all kinds, ZOLLER »venturion« impresses with maximum ergonomics and strong optics. Insert a tool, push a button, finished. That's how simple it is to clamp tools from ZOLLER — always with the same precision, accurate and reliable to the last μm. Measuring tools is just the beginning. Exchanging generated data seamlessly with all production stations and profiting from consistent, μm-precise values from work preparation to the CNC machine.

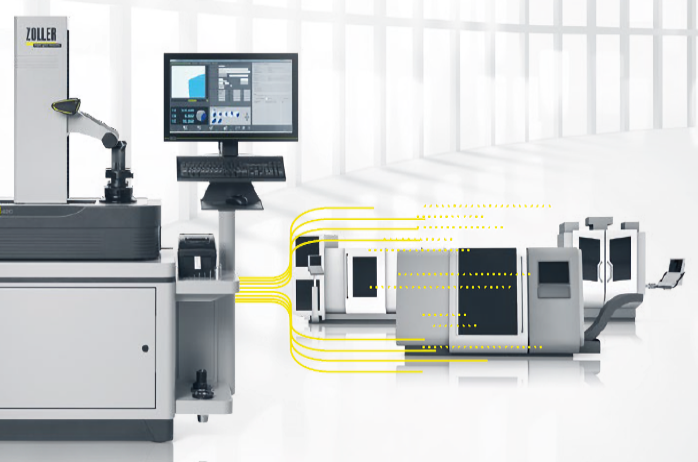

Team player – Can be networked with existing
production elements

  Maximum flexibility – Modular design - can be
        configured for optimum adjustment to individual
        production procedures

Quick and precise – Powerful optic and »pilot«
image processing

Reliable – Intelligent software and maximum
safety standards

Ergonomic – Mature, functional design

Efficient – Premium quality with the best
price-performance ratio

Technical Data	Maximum Tool Length Z	Measuring Range X Axis	Maximum Tool Diameter D	Maximum Snap Gauge Diameter D
»venturion 450«	450 / 620 / 820 mm	210 / 310 mm	420 / 620 mm	100 mm
»venturion 600«	600 / 800 / 1000 / 1200 mm	300 / 400 mm	600 / 800 mm	200 / 100 mm
»venturion 800«	600 / 800 / 1000 / 1200 / 1400 / 1600 mm	500 / 600 / 700 mm	1000 / 1200 / 1400 mm	200 / 0 mm

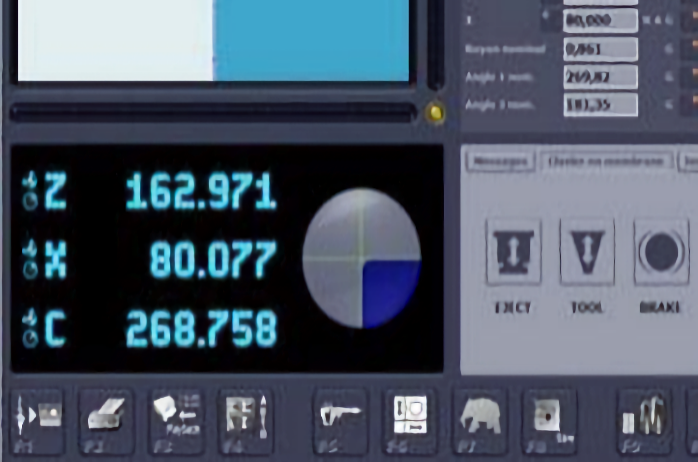

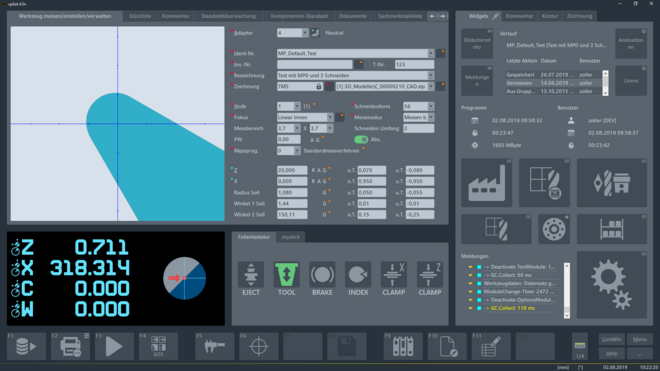

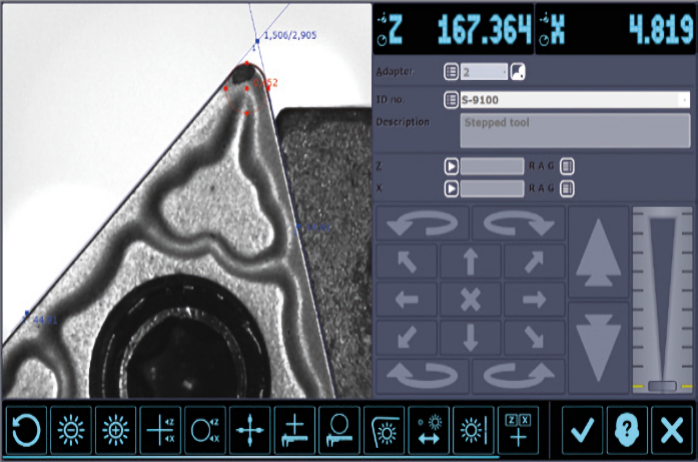

   Modern design and even more features:
   The software for all-inclusive tool
   measurement

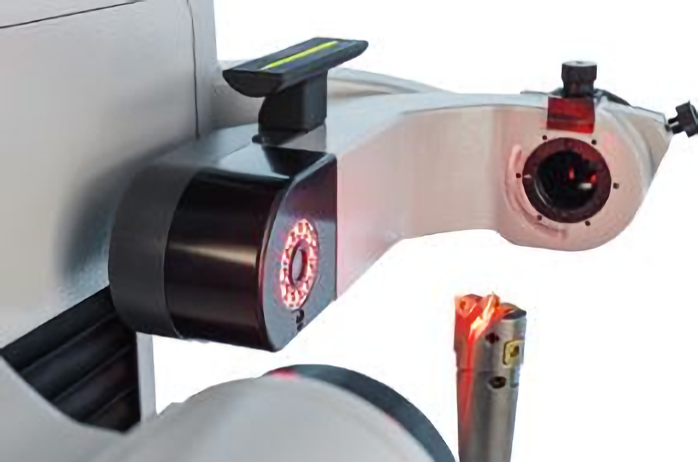

Autofocus for »pilot«	Cutting edge inspection	Center height measuring

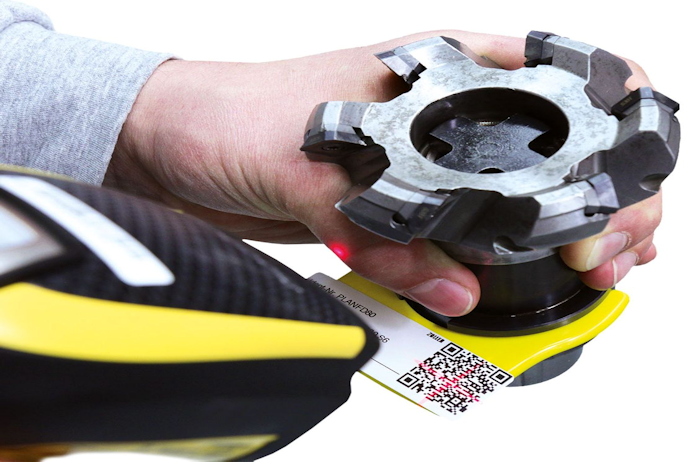

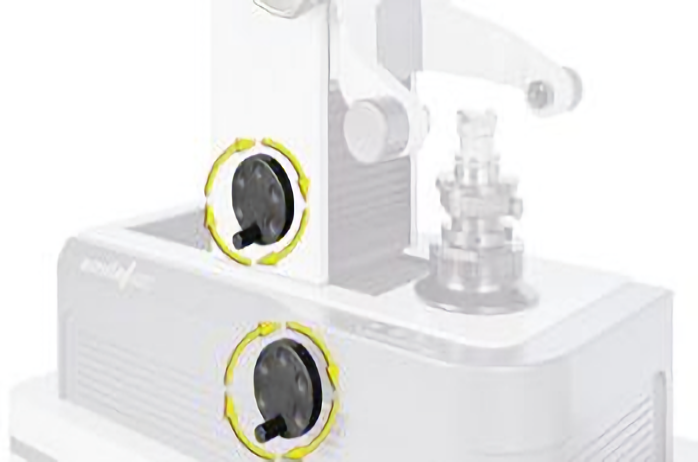

»zidCode« with labels	Automatic tool identification	Manual fine setting
Tool inspection	Precise/exact angle measurement	Data Transmission

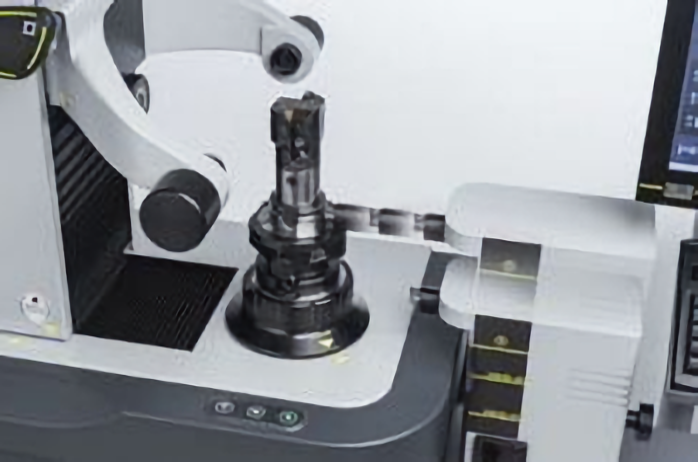

SK 50 High-precision Spindle	»ace« High-precision Spindle

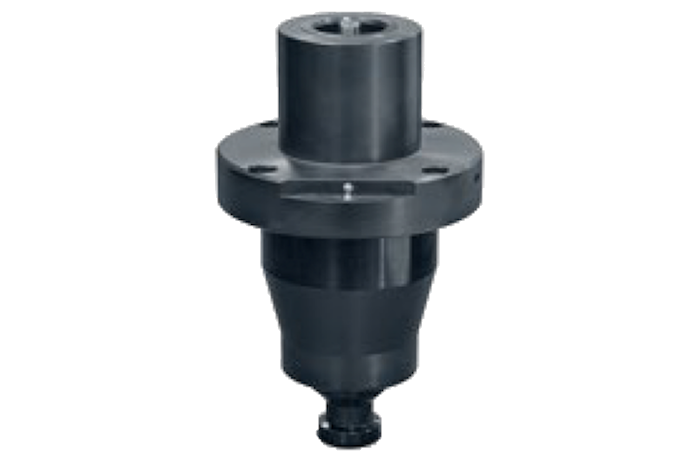

SK 10 to SK 60 steep taper adapter	HSK 25 to HSK 125 hollow shunk taper adapter	VDI 16 to VDI 60 cylinder shaft adapter
Coromant-Capto C3 to C8 adapter	Kennametal adapter	Hydro expansion adapter
SK 25 to SK 50 attachment holder	HSK 25 to HSK 63 hollow shunk attachment holder	Coromant-Capto C3 to C6 attachment holder
VDI 16 to VDI 60 attachment holder	Kennametal attachment holder	Hydro expansion attachment holder

We reserve the right to make technical changes.
