 Cooling Lubricant Preparation (Centrifugal System) |
The Problem :  With modern, highly productive processing machines, down times give rise to enormous costs. The fine abrasion (sludge) created by mechanical machining leads to high tool wear. Renewal of the cooling lubricants is unavoidable.  |

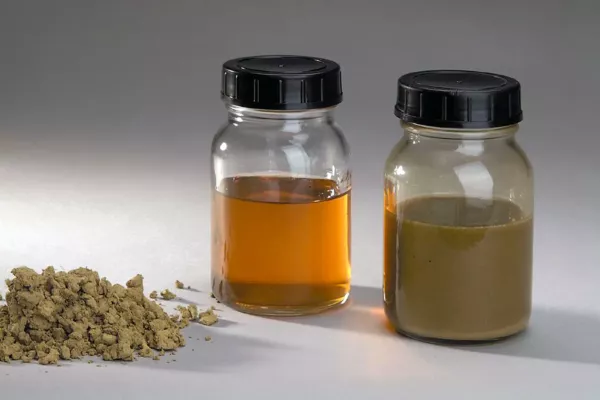

Our Solution : Centrifuges guarantee the optimal state of the cooling lubricant. Separation of oil and solid material from the emulsion with the 3-phase centrifuge. Separation of solid material from the cooling lubricant with the 2-phase centrifuge. The solid material dried at maximum speed (patented) can be disposed of with the swarf- avoidance of special waste. These centrifuges can be optionally equipped with suction units in order additionally to suck the cooling lubricant from the tank of the processing machine and to clean the tank. Our Advantages : No filter required Remove up to particle size of 3 µm No staging needed for the used coolant |
 |
 |
 |
| Tornado Series 200 / 300 / 400 | |||||
| Centrifuge | 2-phase separation of coolant/solids |
2-phase separation of coolant/oil/solids |
|||
| Tornado | 200 RT-S | 300 RT-S | 400 RT-S | 200 RT-S | 300 RT-S |
| Drive power kW | 2.2 | 3 | 4 | 2.2 | 3 |
| Rotor Speed rpm | 3900/4300 | 3000/3500 | 2500/3000 | 3900/4300 | 3000/3500 |
| Loading weight kg | 15 | 20 | 30 | 15 | 20 |
| Solid material volume dm3 | 4 | 8 | 12 | 3 | 8 |
| Separation factor g | 1760/2067 | 1500/2054 | 1400/2012 | 1760/2067 | 1500/2054 |
| Throughput capacity ltr/min. | 60 | 80 | 120 | 10-20 | 15-25 |
| All centrifuges can be supplied with suction unit and feed tank. Please contact us for customized solutions. |
|||||
 |

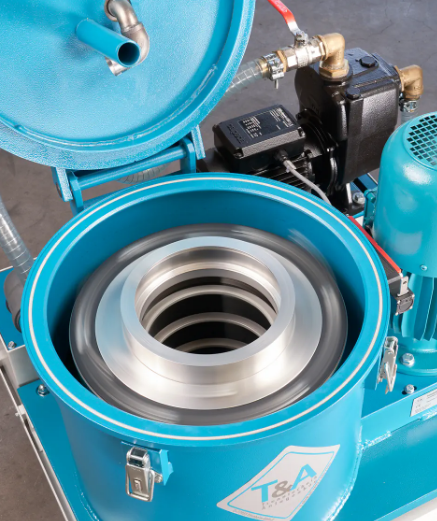

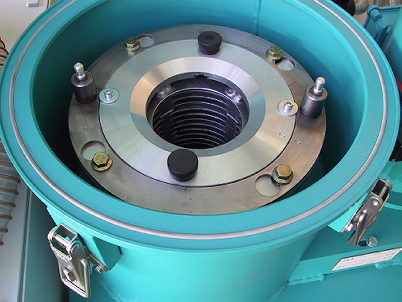

The drum lid fastening developed and patented by T&A guarantees maximum work safety. |
We reserve the right to make technical changes.
