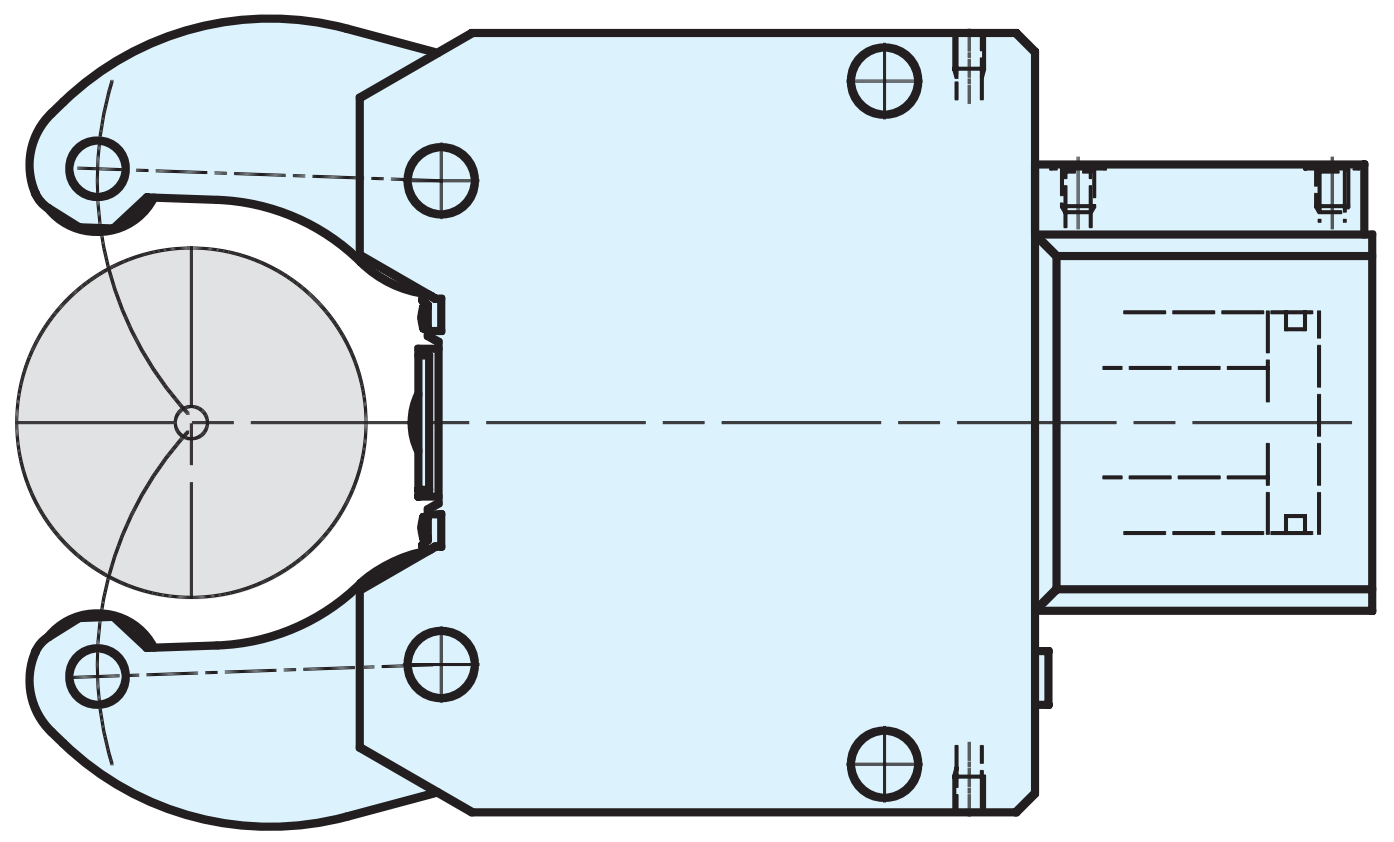

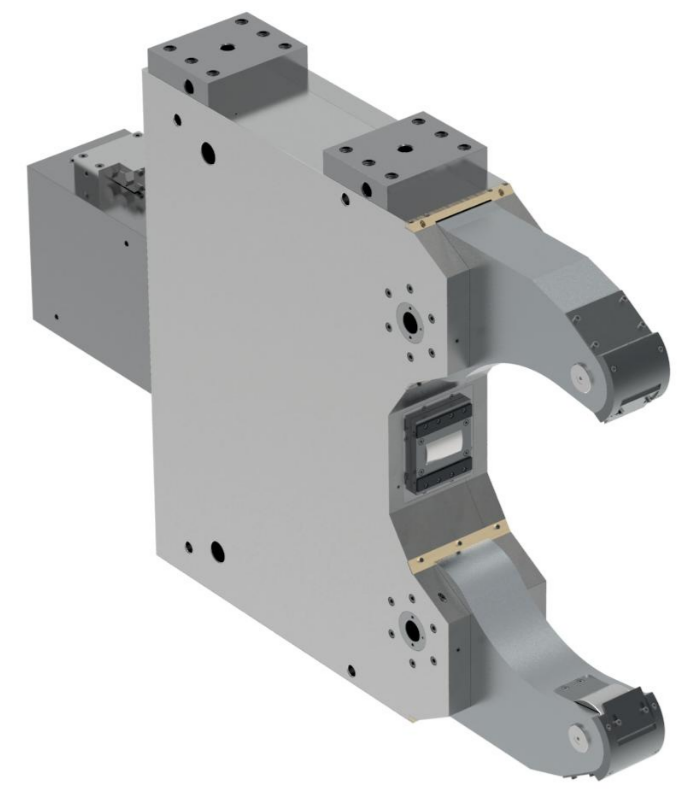

Self-centering Steady Rests SLZ - heavy design  |
| APPLICATION Support of shafts for rational turning and end machining preferential for heavy solid materials. TYPE Heavy design for high loads. TECHNICAL FEATURES |

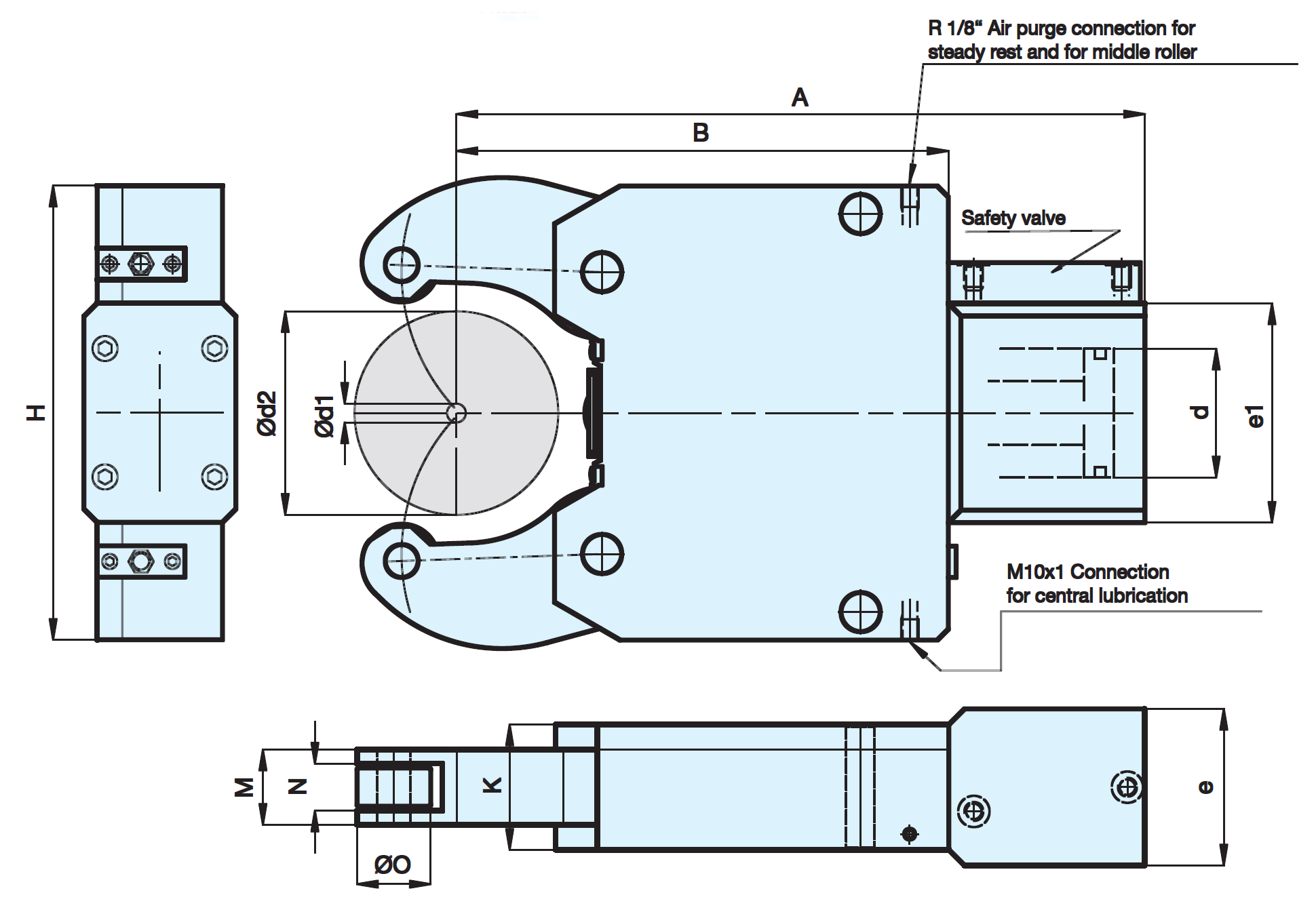

| - Central lubrication or manual lubrication possible, depending on the operating conditions - Standard version available with cylindrical or convex rollers - Available with and without chip protection - Prepared for end position check (limit switch not included in the scope of delivery) - Recommendation: Higher precision in case of vertical installation of the steady rest CUSTOMER BENEFITS » Large clamping range without change elements » Operational safety thanks to safety valve, even if pressure drops » Sturdy design for variable use - Increased stability thanks to steady rest fastened with clamping arm axis » High centering precision and repeatability thanks to proven cam lever system » Resilient chip protection for optimal workpiece wiping (for version "with chip protection") » Purge air connection to prevent penetration of dirt inside the steady rest |
We reserve the right to make technical changes.
