Röhm Vice RZM

5-axis vices

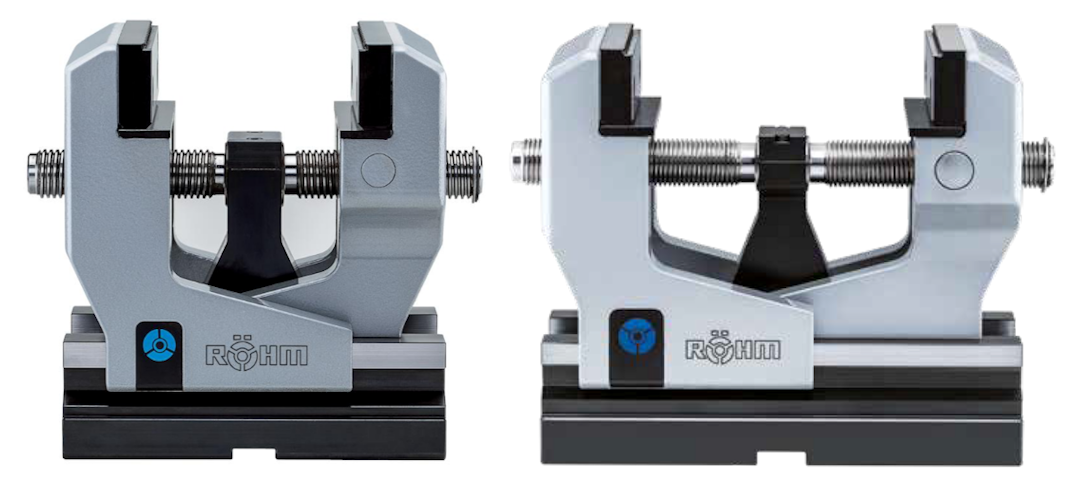

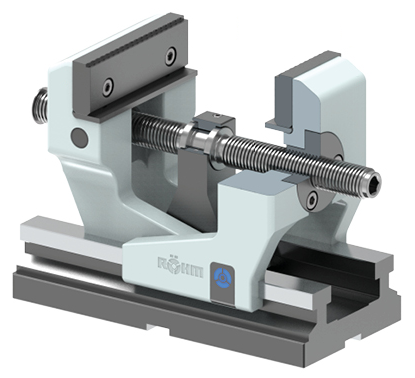

RZM - centrical, without
power transmitter

APPLICATION Optimized for 5-axis machining. TYPE Clamping system mechanical without power transmitter, manually operated. Centric clamping with two moving jaws. TECHNICAL FEATURES - Steel basic body hardened and ground - Highly positioned clamping jaw - Top spindle lying near the clamping jaws for optimal force transfer
- Long jaw guide and compact design - Including SKB clawed jaws - Clamping repeatability 0.02 mm
CUSTOMER BENEFITS » Ideal guidance characteristics of the jaws thanks to patented guidance system » Very large clamping stroke » Open design for optimized chip flow, which permits easy cleaning, even after heavy duty machining » Constant clamping force for every clamping operation and high clamping repeatability when a torque wrench is used » Optimally suitable for use of SKB clawed jaws. These top jaws can securely clamp raw and sawed parts with a max. strength of up to 900 N/mm² to a cutting depth of 2.5 mm

A32

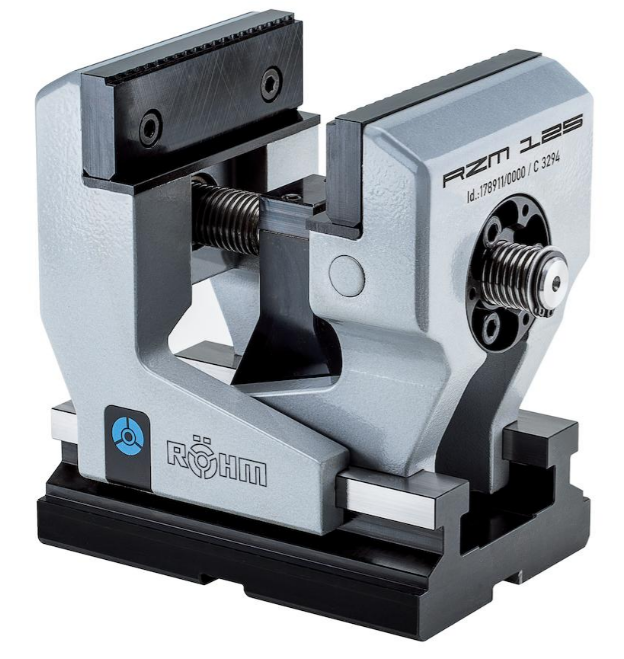

RZM, with SKB clawed jaws

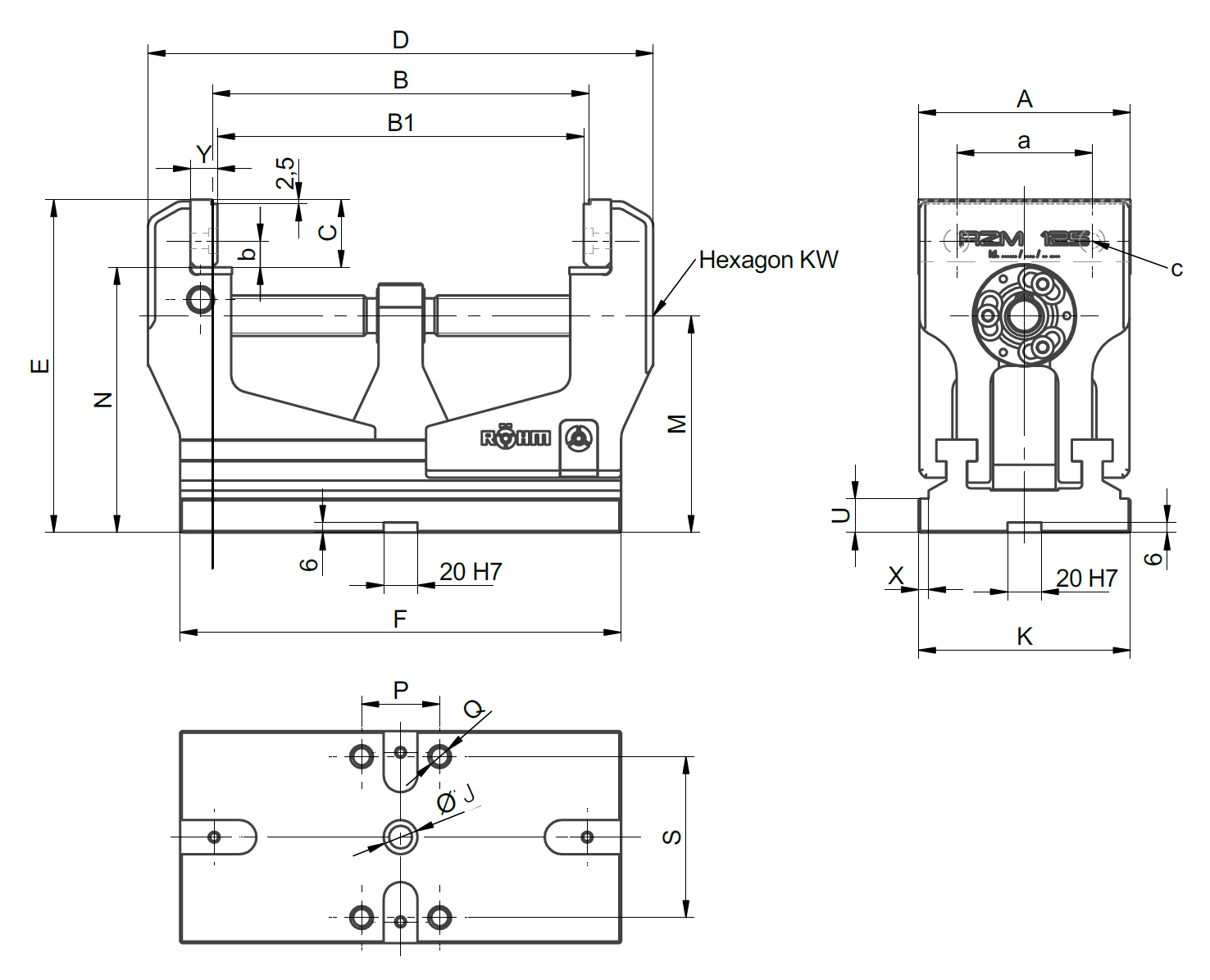

Item No.	182230	182231	178910	178911
Jaw width A mm	92	92	125	125
Design	long design	short design	long design	short design
B min.	24	24	23	23
B max.	160	100	222	142
B1 mm	18 - 154	18 - 94	17 - 216	17 - 136
C mm	32	32	40	40
D mm	230	170	298	218
E mm	174	174	196.5	196.5
F mm	200	200	260	180
Ø J x depth mm	Ø20^H7/6	Ø20^H7/6	Ø20^H7/6	Ø20^H7/6
K mm	94	94	125	125
M mm	120	120	128	128
N mm	142	142	156.5	156.5
U mm	20	20	20	20
X mm	6	6	6	6
Hexagon KW	10	10	12	12
Clamping force kN	20	20	25	25
Tightening torque Nm			150	150
Weight kg	11.7	11.5	20.3	17.4
a	63	63	80	80
b	13.6	13.6	15.6	15.6
c	M6	M6	M8	M8
p	75	75	46	46
Q	M10 - 18 deep	M10 - 18 deep	M12 - 20 deep	M12 - 20 deep
S	70	70	95	95

Accessories RZM

A37
Claw jaws SKB without step, universal for clamping depth > 2.5 mm

Item no.	Contents of delivery	Size	Width mm	Height mm	Thickness mm
166661	set	92	92	32	14
166667	set	125	125	40	16

Including fixing screws

A37
Claw jaws SKB with fine step, 2.5 mm clamping depth

Item no.	Contents of delivery	Size	Width mm	Height mm	Thickness mm
166514	set	92	92	32	14
166520	set	125	125	40	16

Including fixing screws

A37
Normal jaw SGN, one side smooth, one side grooved, both sides ground

Item no.	Contents of delivery	Size	Width mm	Height mm
162363	set	92	92	31.6
158897	set	125	125	39.7

Including fixing screws

A37
Normal jaw finely checkered SGNf, reversible, to increase the specific contact pressure (higher holding forces), one side finely checkered, one side longitudinally grooved

Item no.	Contents of delivery	Size	Width mm	Height mm
163223	set	92	92	32
163225	set	125	125	39.7

Including fixing screws

A37
V-jaw PB, horizontal and vertical

Item no.	Contents of delivery	Size	Width mm	Height mm	Thickness mm	Height prism mm	Chucking capacity mm Horizontal Vertical
162365	set	92	92	32	16	19.5	12-36	12-36
158641	set	125	125	40	20	24	15-40	18-60

A37
Normal jaw SGNA, with movable workpiece stop, hardened and ground

Item no.	Contents of delivery	Size	Width mm	Height mm
150739	piece	92	113	31.6
150740	piece	125	135	39.6

Including fixing screws

A37
V-jaw and standard jaw SBO, unhardened and burnished, with workpiece support

Item no.	Contents of delivery	Size	Width mm	Height mm	Chucking capacity mm Horizontal Vertical
317259	set	92	110	31.8	3-12	5-32
317260	set	125	135	39.8	3-13	6-40

Including fixing screws

A37
Spindle, for shortening the clamping range of the long RZM version

Item no.	Contents of delivery	Size	Length mm	Diameter mm
178958	piece	125	218	24
182233	piece	92	168	24

A26
Torque Wrench

Item no.	Torque Nm	Length mm	Output	Working accuracy
10004116	20 - 120	435	12.7 = 1/2"	3%
10004117	60 - 320	659	12.7 = 1/2"	3%

A99
Screwdriver bit for torque wrench

Item no.	Size	Key-width SW	Output
1339728	92	10	1/2"
1339729	125	12	1/2"

A37
Single clamp SPE, for mounting vices on end and on the base

Item no.	Contents of delivery	T-slot	Thread
149121	piece	12	M 10 x 50
149122	piece	14	M 12 x 55
149123	piece	16	M 12 x 60
149124	piece	18	M 16 x 60
155722	piece	20	M 16 x 65
151507	piece	22	M 16 x 65

A37
Fixed slot nuts NTS, hardened and ground, with fixing screw

Item no.	Contents of delivery	Size	Length mm
014823	set	20 x 12	22
014825	set	20 x 14	25
014827	set	20 x 16	25
014829	set	20 x 18	25
014831	set	20 x 20	22
014833	set	20 x 22	32

We reserve the right to make technical changes.
