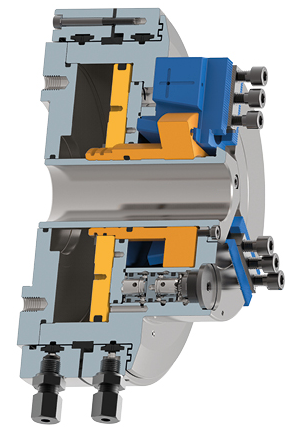

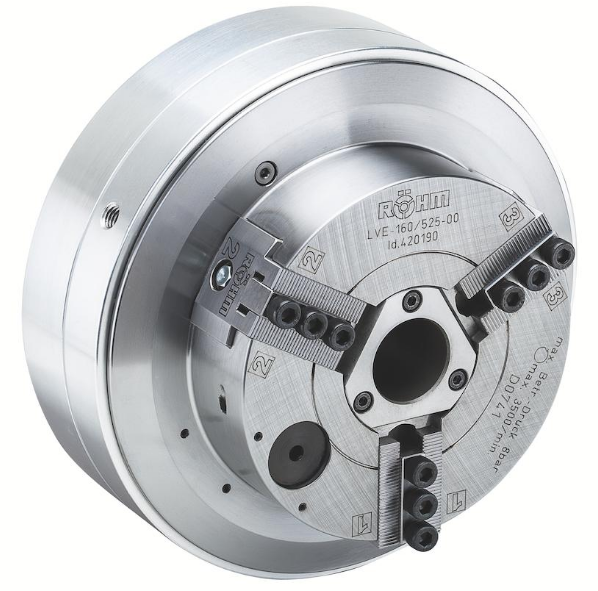

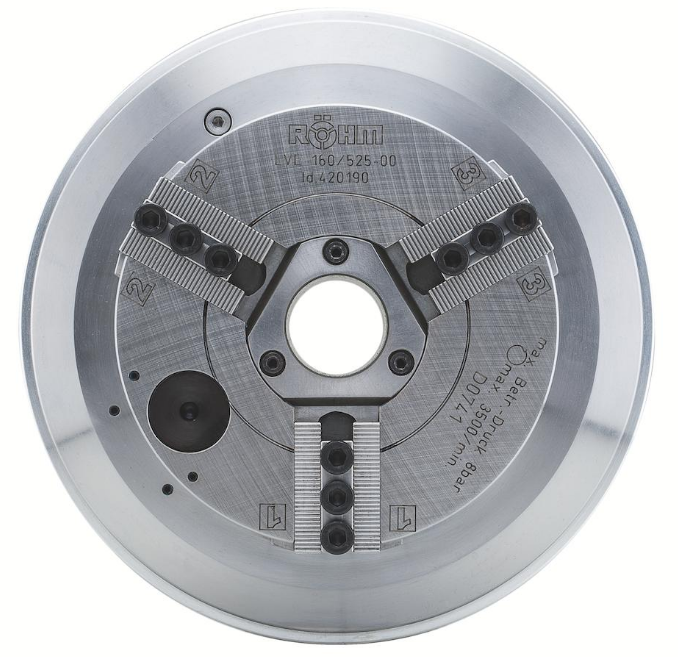

Air-operated Self-contained Chucks LVE - with integrated pneumatic cylinder   |
APPLICATION Optimally suited for flange, bar and tube machining, especially for machines without a clamping cylinder. TYPE Power chuck with integrated pneumatic cylinder and cylindrical centre mount. 3-jaw version with serration 90°. TECHNICAL FEATURES - Clamping and unclamping only when spindle at standstill - Wedge hook system with integrated clamping cylinder CUSTOMER BENEFITS » Large through-hole » Can be easily exchanged with manual clamping chuck » Compact system dimensions because it is self-contained » Unobstructed bore through spindle thanks to omission of the draw tube » High clamping force already at 6 bar |
 |
Included in the scope of delivery: Chuck, chuck and jaw mounting screws, slot nuts (without top jaws) |
