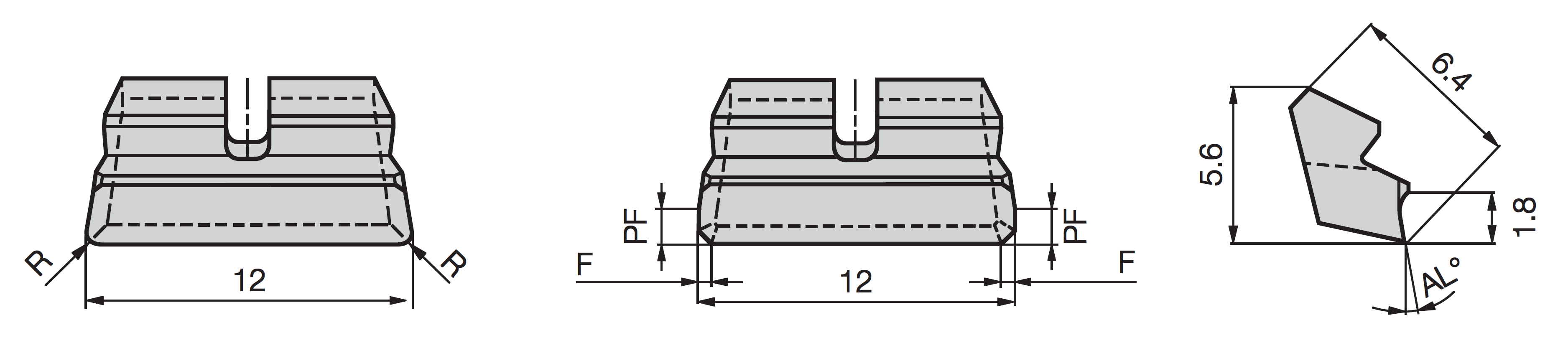

Insert W 6120-…. …. N Carbide / carbide coated / PCD |
with radius (R) or with chamfer (F) and wiper geometry (PF)
| Carbide |
Part nr. 20305 |
Part nr. 20499 |
Part nr. 20501 |
Part nr. 20503 |
|||||
| uncoated | coated | coated | coated | ||||||
| Code | Drawing nr. | R | AL° | F | PF | K10 | G12 | G16 | G26 |
| 61,200 | W6120-0318 1645N | 16 | 0.3x45° | 1 | |||||
| 61,201 | W6120-0418 1620N | 0.4 | 16 | ||||||
| 61,202 | W6120-0318 1045N | 10 | 0.3x45° | 1 | |||||
| 61,203 | W6120-0418 1000N | 0.4 | 10 | ||||||
| H | |||||||||
| PCD |
Part nr. 20309 |
Part nr. 20310 |
Part nr. |
Part nr. |
|||||
| Code | Drawing nr. | R | AL° | F | PF | PCD 10 | PCD 30 | ||
| 61,200 | W6120-0318 1045N | 10 | 0.3x45° | 1 | |||||
| 61,201 | W6120-0318 0045N | 0 | 0.3x45° | 1 | |||||
| 61,202 | W6120-0418 0000N | 0.4 | 0 | ||||||
| H | |||||||||
| PCD |
Part nr. 20390 |
Part nr. |
Part nr. |
Part nr. |
|||||
| Code | Drawing nr. | R | AL° | F | PF | PCD 10 | |||
| 61,201 | W 6120-0118 6245R | 6 | 0.1x45° | 1.8 | |||||
| ex stock in short time available Ordering example: 1 piece W 6120-0318 1645 N K10 = Ordering number: 20305 61,200 |
|||||||||
We reserve the right to make technical changes.
