Hydraulic Clamping Cylinder with Through-hole FORTO-HT  |
| APPLICATION Automatic clamping, horizontal turning machines TYPE For Turning of rods, tubes, flanges, washers TECHNICAL FEATURES - large through-hole - low weight - short construction - integrated coolant collector - switching disc for travel measuring system outside the dirty area - high speeds (up to 8,000 rpm in the 37/70 version) - large selection of matching power chucks from Röhm |
 |

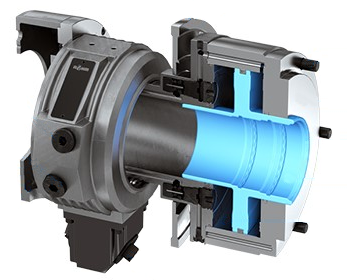

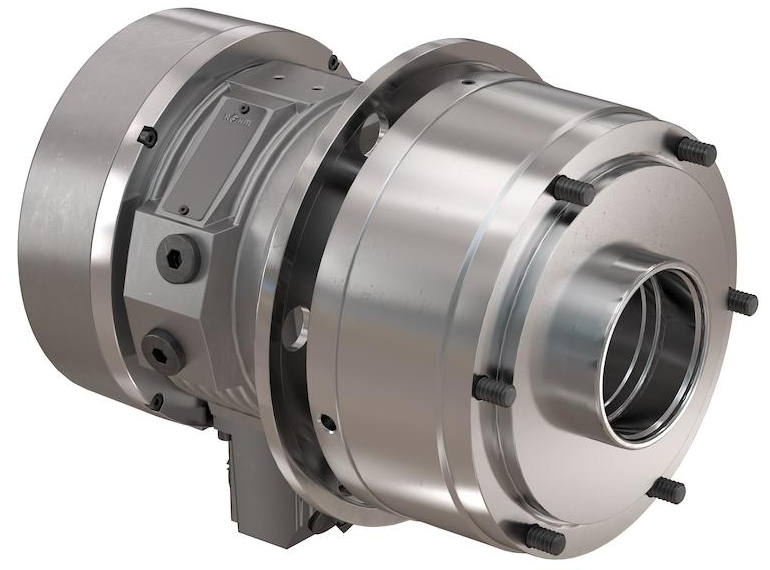

The Forto-HT is a hydraulic clamping cylinder with a through-hole for actuating power chucks and collet chucks. It is mainly used on CNC turning machines and machining centres for automatic clamping in hollow clamping. This makes it particularly well suited for machining long workpieces, up to bar material. In the Forto-HT name, the H stands for hydraulics and the T for through-hole. It scores with the highest actuating forces and high speeds with very good smooth running at the same time. Various (optional) rotary unions make it possible to feed media through to the clamping devices. Different (optional) travel measuring systems make it possible for the machine controller to monitor the piston stroke or alternatively piston position. In the event of an unexpected pressure drop during machining, a safety device ensures that the actuating force is maintained until the spindle comes to an emergency stop. The Forto-HT replaces the Röhm hollow clamping cylinders of the SZS series. |
