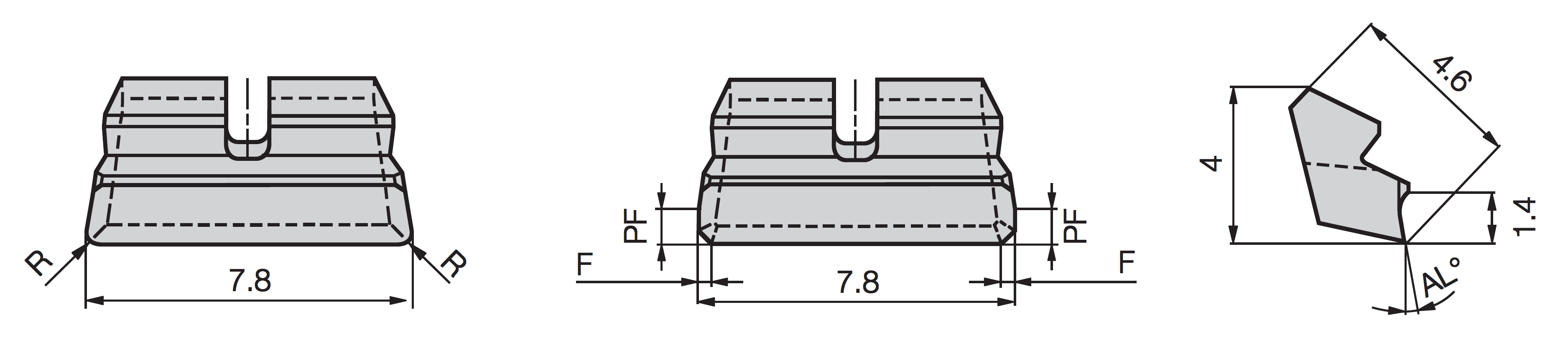

Insert W 3108-…. …. N Carbide / carbide coated / PCD |
with radius (R) or with chamfer (F) and wiper geometry (PF)
| Carbide |
Part nr. 20295 |
Part nr. 20494 |
Part nr. 20496 |
Part nr. 20498 |
|||||
| uncoated | coated | coated | coated | ||||||
| Code | Drawing nr. | R | AL° | F | PF | K10 | G12 | G16 | G26 |
| 31,080 | W3108-0314 1645N | 16 | 0.3x45° | 0.9 | |||||
| 31,081 | W3108-0414 1620N | 0.4 | 16 | ||||||
| 31,082 | W3108-0314 1045N | 10 | 0.3x45° | 0.9 | |||||
| 31,083 | W3108-0414 1000N | 0.4 | 10 | ||||||
| H | |||||||||
| PCD |
Part nr. 20299 |
Part nr. 20300 |
Part nr. |
Part nr. |
|||||
| Code | Drawing nr. | R | AL° | F | PF | PCD 10 | PCD 30 | ||
| 31,080 | W3108-0314 1045N | 10 | 0.3x45° | 0.9 | |||||
| 31,081 | W3108-0314 0045N | 0 | 0.3x45° | 0.9 | |||||
| 31,082 | W3108-0414 0000N | 0.4 | 0 | ||||||
| 31,083 | W3108-0814 0000N | 0.8 | 0 | ||||||
| ex stock in short time available Ordering example: 1 piece W 3108-0314 1645 N K10 = Ordering number: 20295 31,080 |
|||||||||
We reserve the right to make technical changes.
