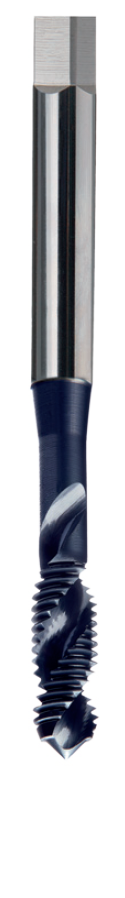

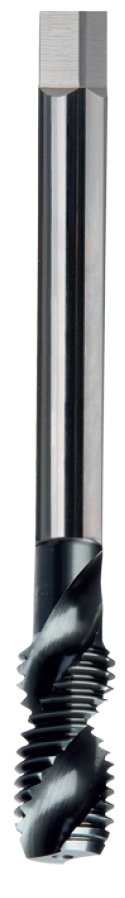

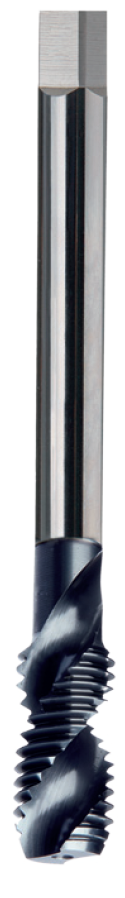

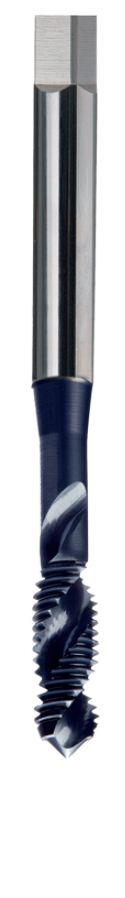

Ferg Threading Taps M AC140,DL140,AC140A,DL140A

Threading Taps
ISO Metric coarse thread DIN 13

Wrought aluminium alloys 6%>Si<10% (long-chipping)									High speed steel class E with 3% vanadium 1.3344 (EMo5V3) (M-3/2) High speed steel 1.3343 (DMo5) (M-2)		DIN 371 AC140A 2000014017	DIN 376 AC140 2500014017	DIN 371 DL140A 2000014019	DIN 376 DL140 2500014019
									HOLE		≤ 2 x d₁ Blind and through hole		≤ 2 x d₁ Blind and through hole
									Chamfer lead acc. to DIN 2197		C = 2.5xP		C = 2.5xP
									LIMIT		ISO 2 (6H)		ISO 2 (6H)
									COATING		AlCrN coating (Aluminium Chrome Nitride)		Diamond-like carbon
									DIN		371	376	371	376
									ORDER No. EDP = Nr.+ ★		DIN 371 2000014017* AC140A		DIN 371 2000014019* DL140A
l₁ mm	l₂ mm	l₃ mm	DIN 371		DIN 376		mm	d₁ mm	P mm	★	DIN 376 2500014017* AC140		DIN 376 2500014019* DL140
l₁ mm	l₂ mm	l₃ mm	d₂ mm	a mm	d₂ mm	a mm	mm	d₁ mm	P mm	★	DIN 376 2500014017* AC140		DIN 376 2500014019* DL140
											Z		Z
45	9	-	2.8	2.1			1.6	M 2	(0.4)	020	2		2
45	9	-	2.8	2.1			1.75	M 2.2	(0.45)	022	2		2
45	9	-	2.8	2.1			1.9	M 2.3	(0.4)	023	2		2
50	9	-	2.8	2.1			2.05	M 2.5	(0.45)	025	2		2
50	9	-	2.8	2.1			2.1	M 2.6	(0.45)	026	2		2
56	11	16	3.5	2.7	2.2	-	2.5	M 3	(0.5)	030	2 ■		2 ■
56	12	17	4	3	2.5	2.1	2.9	M 3.5	(0.6)	035	2		2
63	13	19	4.5	3.4	2.8	2.1	3.3	M 4	(0.7)	040	2 ■		2 ■
70	15	29	6	4.9	3.5	2.7	4.2	M 5	(0.8)	050	2 ■		2 ■
80	17	30	6	4.9	4.5	3.4	5	M 6	(1)	060	2 ■		2 ■
80	17	31	7	5.5	5.5	4.3	6	M 7	(1)	070	2 ■		2 ■
90	20	35	8	6.2	6	4.9	6.8	M 8	(1.25)	080	2 ■ ■		2 ■
100	22	38	10	8	7	5.5	8.5	M 10	(1.5)	100	2 ■ ■		2 ■
110	24				9	7	10.2	M 12	(1.75)	120	2 ■		2 ■
110	26				11	9	12	M 14	(2)	140	2 ■		2 ■
110	27				12	9	14	M 16	(2)	160	2 ■		2 ■
125	30				14	11	15.5	M 18	(2.5)	180	2		2
140	32				16	12	17.5	M 20	(2.5)	200	3		3
140	32				18	14.5	19.5	M 22	(2.5)	220	3		3
160	34				18	14.5	21	M 24	(3)	240	3		3
160	36				20	16	24	M 27	(3)	270	4		4
180	40				22	18	26.5	M 30	(3.5)	300	4		4
180	40				25	20	29.5	M 33	(3.5)	330	4		4
200	50				28	22	32	M 36	(4)	360	4		4
200	50				32	24	35	M 39	(4)	390	4		4
200	56				32	24	37.5	M 42	(4.5)	420	4		4
					■ = Stock			EDP: T140A M 5 = 2000014010050
