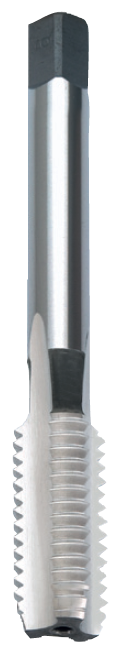

Ferg Threading Taps MF 206

Threading Taps
ISO Metric fine thread DIN 13

Short-chipping brass, Bronze									High speed steel class E with 3% vanadium 1.3344 (EMo5V3) (M-3/2)		DIN 2181 206 1802620600
									HOLE		≤ 2 x d₁ Blind and through hole
									Chamfer lead acc. to DIN 2197		E = 1.5 x P
									LIMIT		+ 0.1
									COATING		Bright (without Coating or without Surface treatment)
									DIN		2181
									ORDER No. EDP = Nr.+ ★		1802620600* 206
l₁ mm	l₂ mm	l₃ mm	DIN 371		DIN 374		mm	d₁ x P mm		★
			d₂ mm	a mm	d₂ mm	a mm
											Z
50		19	6		4.9		7.5	M 8	x 0.5	082	4
50		19	6		4.9		7.2	M 8	x 0.75	083	4
56		20	6		4.9		7	M 8	x 1	084	3
63		18	7		5.5		9	M 10	x 1	104	4 ■
70		22	7		5.5		8.8	M 10	x 1.25	105	3
70		20	9		7		11	M 12	x 1	124	4
70		22	9		7		10.8	M 12	x 1.25	125	4
70		22	9		7		10.5	M 12	x 1.5	125	4
70		20	11		9		13	M 14	x 1	144	4
70		20	11		9		12.8	M 14	x 1.25	145	4
70		20	11		9		12.5	M 14	x 1.5	146	4
70		20	12		9		15	M 16	x 1	164	4
70		20	12		9		14.5	M 16	x 1.5	166	4
80		22	14		11		17	M 18	x 1	184	4
80		22	14		11		16.5	M 18	x 1.5	186	4 ■
80		22	16		12		19	M 20	x 1	204	4
80		22	16		12		18.5	M 20	x 1.5	206	4 ■
80		22	18		14.5		21	M 22	x 1	224	4
80		22	18		14.5		20.5	M 22	x 1.5	226	4
90		22	18		14.5		23	M 24	x 1	244	4
90		22	18		14.5		22.5	M 24	x 1.5	246	4
			■ = Stock				EDP: A160 M 12x1.5 = 2502016012126
