Fineboring Tools Tapered screw adjustment μm-accurate adjustable |
Adjustment Instructions
| 1. Changing the insert | |
| Disassembly | |
| Loosen clamp set (1 to 2 turns) and remove the worn insert | |
| Clean the insert pocket | |

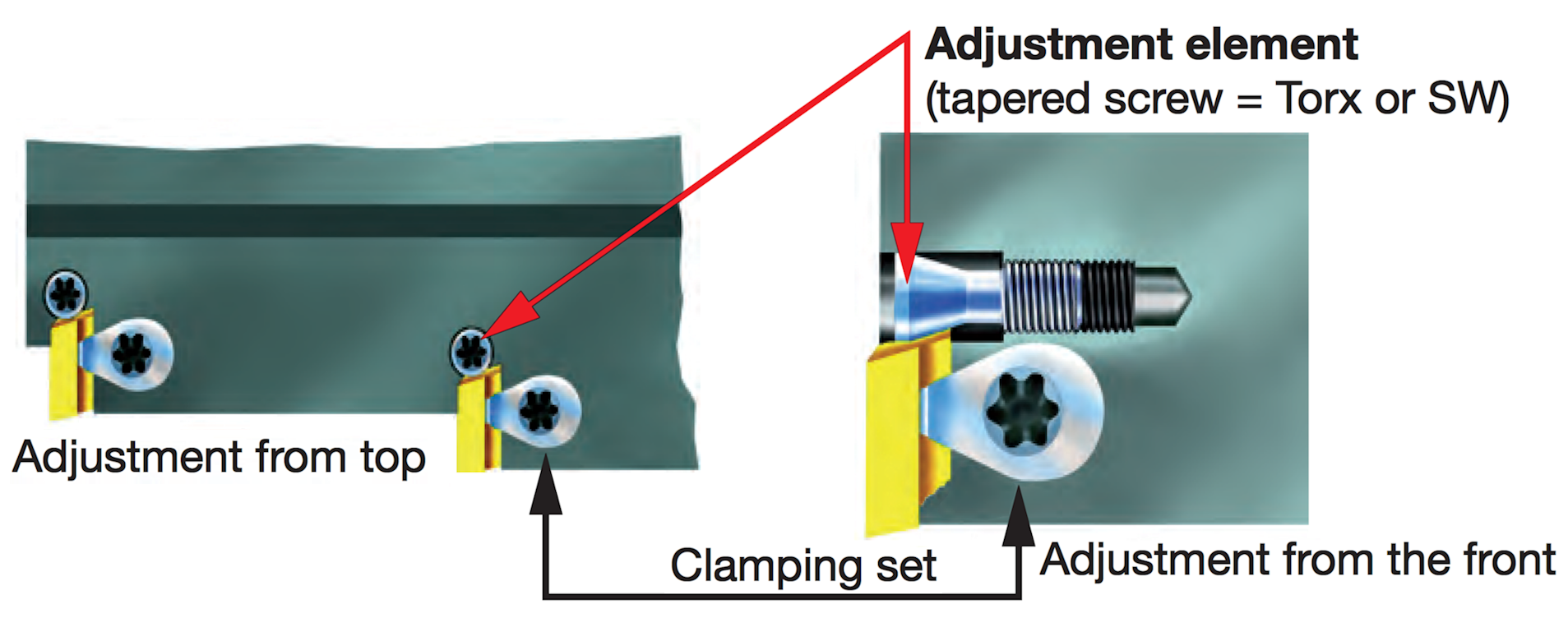

| Turn out the adjustment element 1 to 2 turns | |
| Assembly | |
| Put a new insert in the pocket seat | |
| Press insert into the pocket seat, keep under pressure and slightly tighten | |
| the clamp set: Torx 5 with 40 Ncm Torx 6 with 60 Ncm | |
| Torx 8 with 100 - 120 Ncm Torx 15 with 250 - 300 Ncm | |
| 2. Insert adjustment | |
| Clamp the holder in the presetting device | |
| Adjust the insert in diameter up to 0.05 mm smaller than target measure | |
| Tighten the clamp set | |
| Adjust insert to the required machining diameter | |
| It is not necessary to retighten the clamping set! | |
| Torque for clamp sets | |||||
| Tool type | Clamp set | Torque (Ncm) | Torx size | Torque wrench fixed DSF | |
| Part nr. | Code | ||||
| H 1035 / H 1730 | E 1100 / E 3441 | 45 | Tx 5 | 20063 | 0.450 |
| H 2850 | E 1085 / E 1112 | 70 | Tx 6 | 20063 | 0.700 |
| H 3570 | E 1060 | 140 | Tx 8 | 20063 | 1.400 |
| H 4090 | E 1040 | 345 | Tx 15 | 20063 | 3.450 |
| Torque wrench adjustable DS | 20- 120 | 20063 | 1.200 | ||
| 100 - 600 | 20063 | 6.000 | |||
| Security Advice: | ||
| For security reasons the tool must be returned to the manufacturer for inspection if the holder is damaged! The clamp sets must be replaced on a regular basis or in case that they show any sign of damage. Only original spare parts may be used! |
We reserve the right to make technical changes.
