Cartridges with tapered screw adjustment, μm-accurate adjustable |

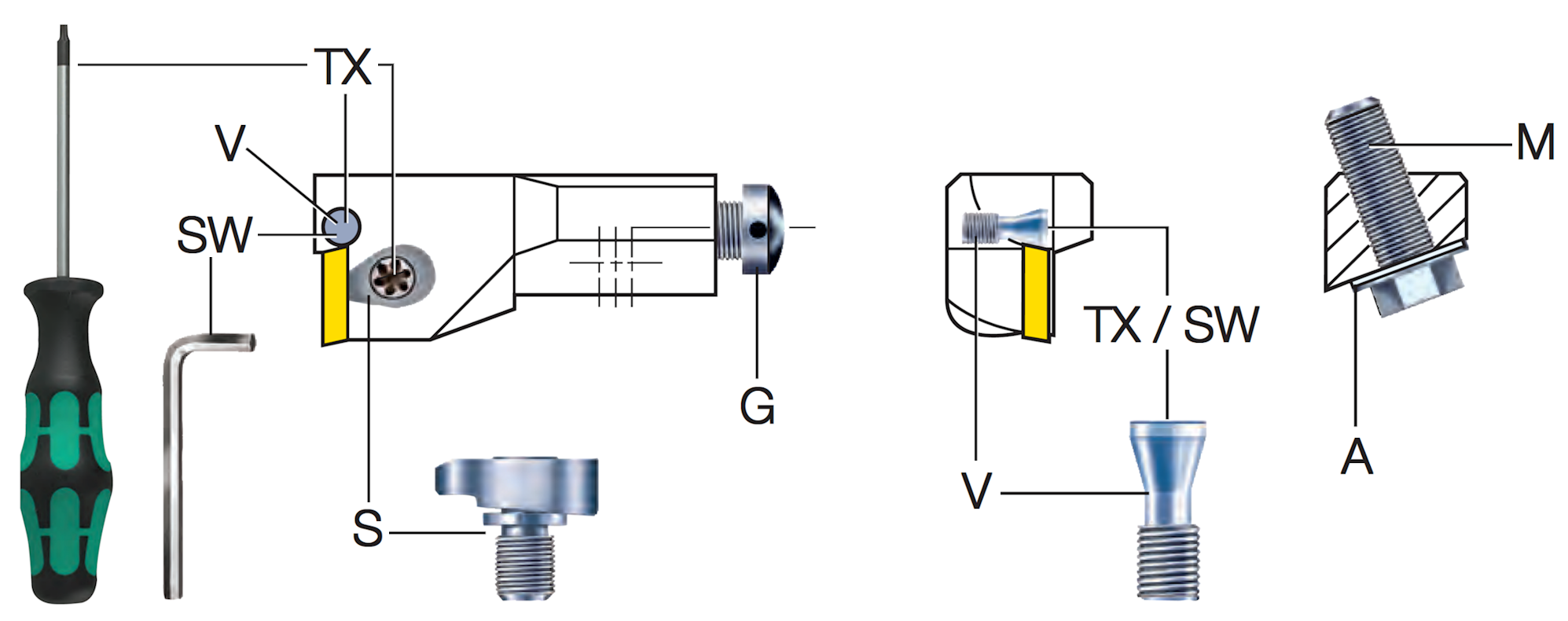

Spare Parts
| S | Clamping set | ||
| Tx | Torx-screw driver ( for operating clamping and adjustment screw ) | ||
| V | Adjustment screw ( tapered screw ) | ||
| SW | Hexagon socket screw key | ||
| M | Fastening screw | ||
| G | Axial adjustment screw | ||
| A | Disk | ||
Please note: Clamping set S contains: 1 Clamping element, 1 Retainer ring, 1 Clamping screw |
|||
| Tool | S | Tx | V | Tx / SW | G | M | A |
| H 1035-2088 0890 R/L CBFP R/L 06 CA-04 |
E 1100 E 1120 |
Tx 5 Tx 5 |
E 3007 | Tx 5 | E 2611-1 | E 2613-1 | E 2619-2 |
| H 2850-2588 1090 R/L CBFP R/L 08 CA-05 |
E 1112 | Tx 6 | E 2986 | Tx 6 | E 2611-2 | E 2613-2 | E 2619-2 |
| H 3570-3088 1290 R/L CBFP R/L 08 CA-07 |
E 1060 | Tx 8 | E 3093 | SW 1.3 | E 2611-2 | E 2613-2 | E 2619-2 |
| H 4090-3588 1490 R/L CBFP R/L 10 CA-09 |
E 1040 | Tx 15 | E 2997 | SW 1.5 | E 2611-3 | E 2613-3 | E 2619-3 |
