Röhm Grinding and Inspection Vices PS-ZD

Grinding and Inspection Vices
PS-ZD

APPLICATION
Mainly in tool construction on grinding, milling and engraving machines, on jig boring machines, for measuring and control work and for production operations requiring high clamping precision.

TECHNICAL FEATURES
- Fine adjustment screw on bottom section makes exact angular adjustment possible
- Size 2 for heavy machining
- Positive locking in any desired angular position using fixing screws
- Made of alloyed tool steel, hardened and very finely ground

CUSTOMER BENEFITS
» 2-dimensional angle adjustment via vernia, for size 1 with 3´-vernia, for size 2 with 5´-vernia
» 360° turnable

A29

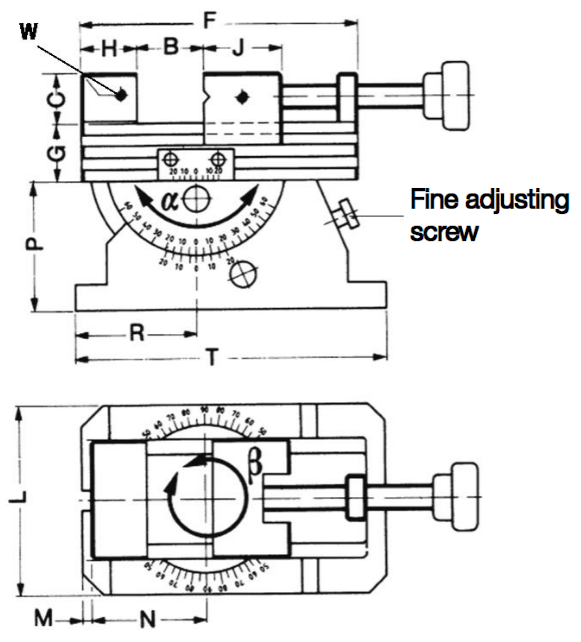

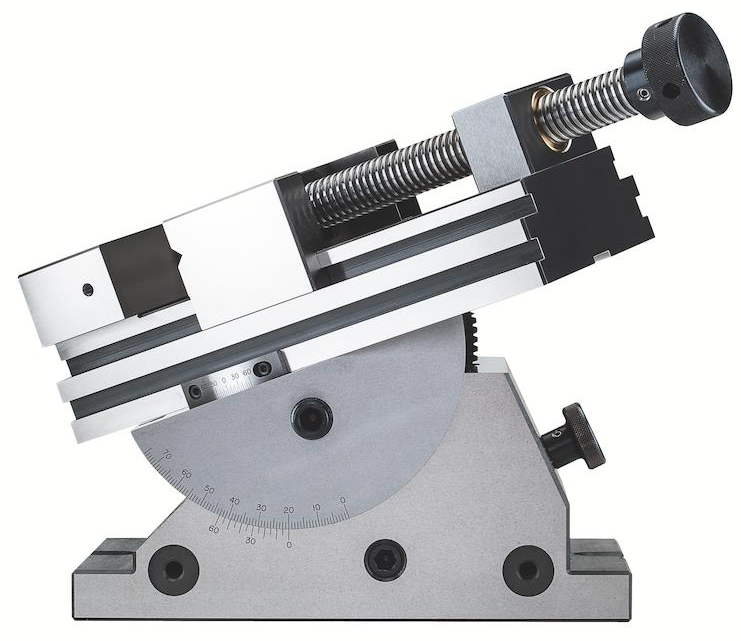

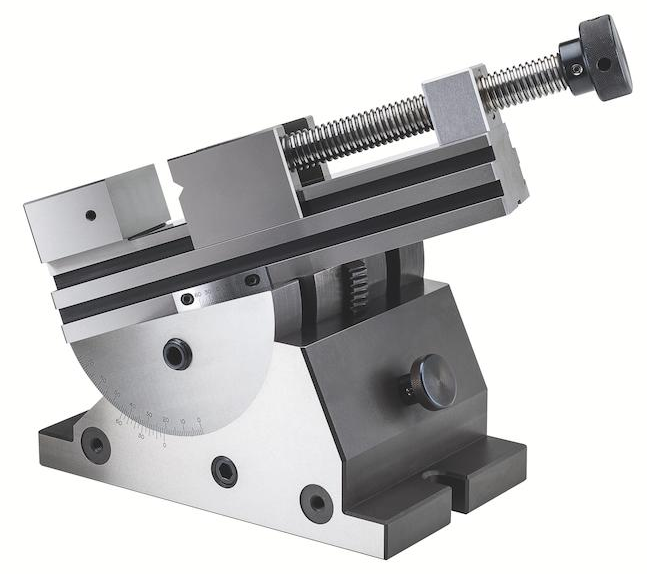

PS-ZD, 2-dimensional

Item No.	370783
Size	2
Squareness / 100 mm	0.005
Parallelism / 100 mm	0.002
Jaw width mm	120
B mm	150
Total height mm	210
C mm	40
Length body mm	270
G mm	50
H mm	55
J mm	70
L mm	160
M mm	10
N mm	105
P mm	120
R mm	105
T mm	270
β	360°
α	0° - 70°
W	2 x M 6 x 20
Weight kg	43

We reserve the right to make technical changes.
