   External Gripping  Internal Gripping  Pneumatical Actuated  Parallel Gripping |

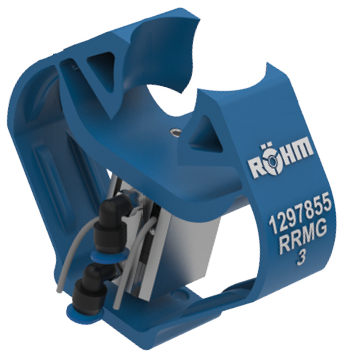

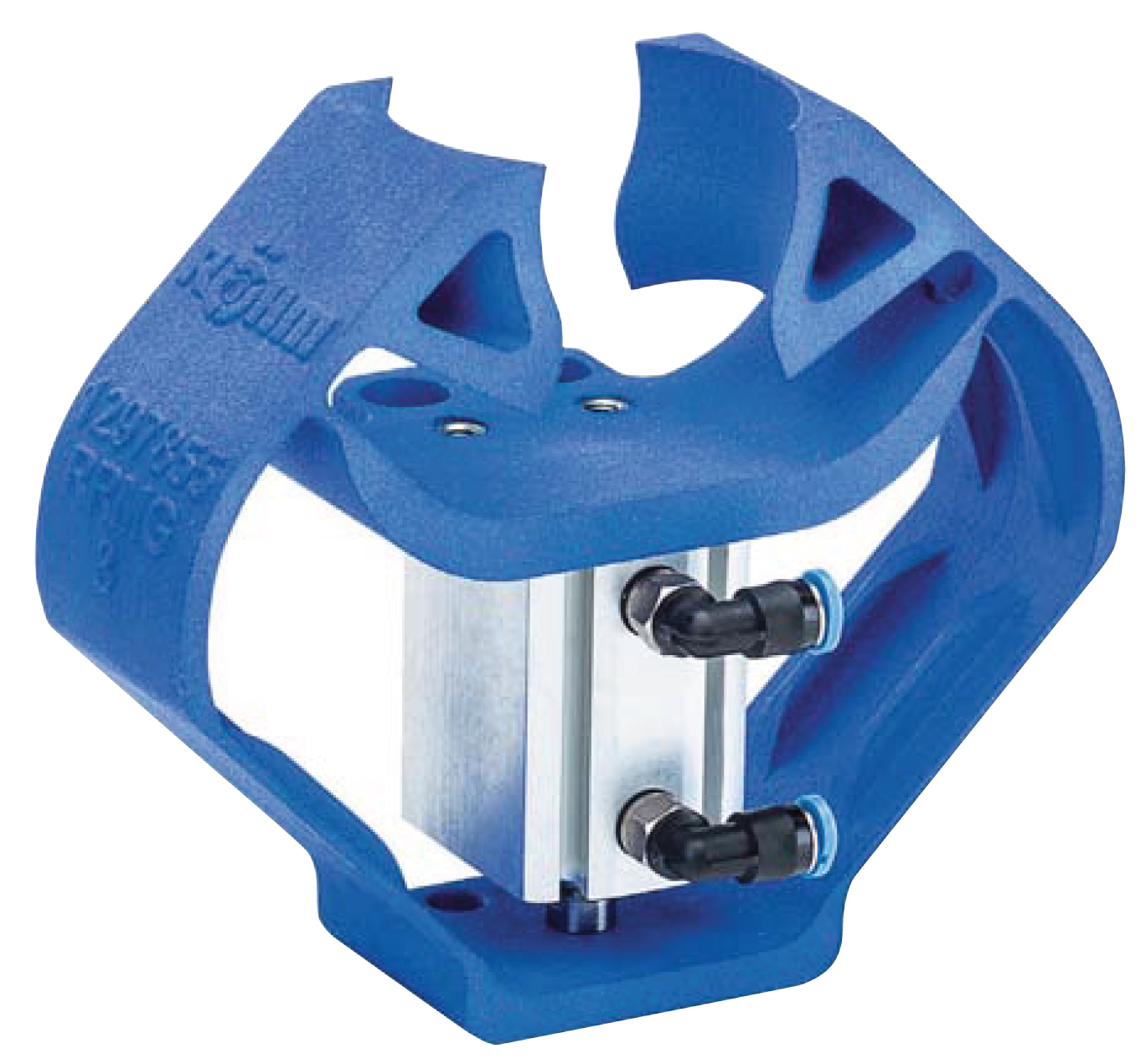

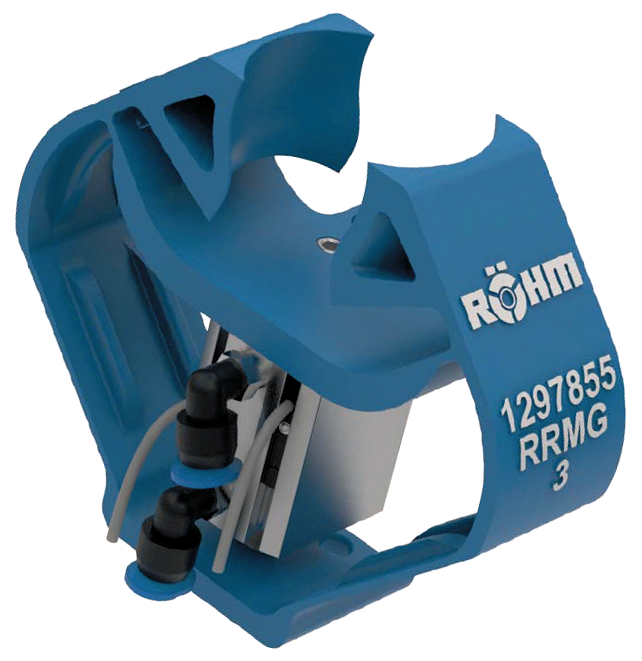

Synthetic Gripper RRMG  |
APPLICATION Synthetic gripper for light, sensitive workpieces with complex geometries. TYPE Customized and perfectly adapted jaws on the form of the workpiece. TECHNICAL FEATURES - Synthetically built by selective laser sinthering for short delivery times - Especially robust and durable material polyamid with FEM-optimized structure - Optional position monitoring by installable standard sensors - Position monitoring by magnetic sensors possible - Further designs and sizes on request (e.g. double gripper, internal gripper, etc.) |
 |
| CUSTOMER BENEFITS » Part specific unique gripper for sensitive workpieces with complex geometries » FEM optimized structure with 30 % higher clamping force » Customized and perfectly adapted to the workpiece using the 3D-model » Application specific design of the flange for maximum flexibility » Up to 16 million gripping cycles without maintenance or wear and tear |
We reserve the right to make technical changes.
