Grinding and Inspection Vices
PL-F

APPLICATION
Mainly in tool construction on grinding, milling and engraving machines, on jig boring machines, for measuring and control work and for production operations requiring high clamping precision.
TECHNICAL FEATURES
- With draw-down effect
- Made of alloyed tool steel, hardened and very finely ground
- Horizontally and vertically ground prism
- No spindle which could cause contamination during electric discharge machining, for example

CUSTOMER BENEFITS
» Easy clamping and unclamping with allen key
» Clamping jaw adjustable in stages, snaps in automatically




A29

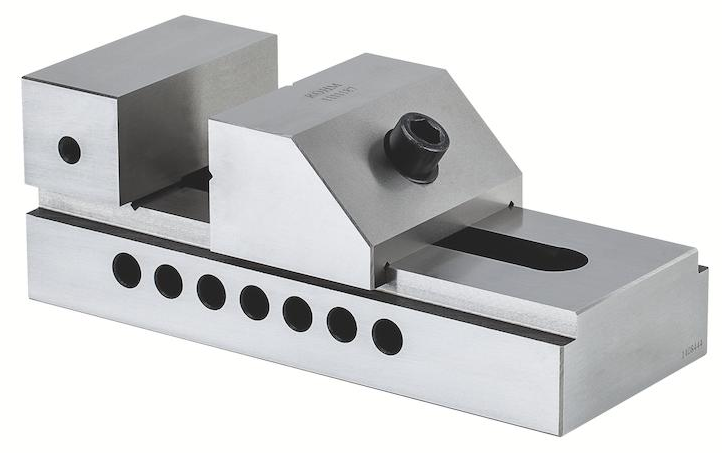

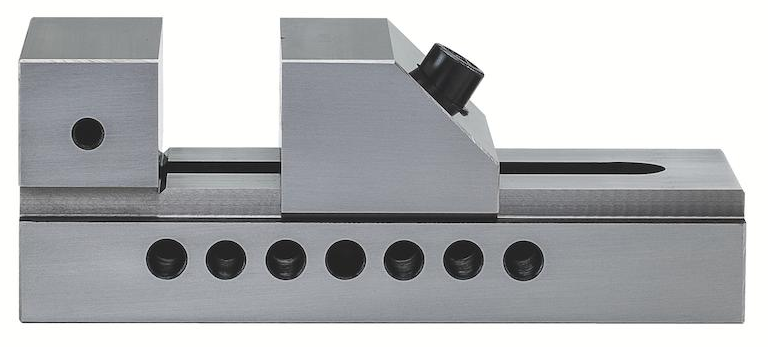

PL-F, with quick adjustment in gauge accuracy
 Item No.  1111185  1111186  1111187
 Size  0  1  2
 Squareness1) / 100 mm  0.005  0.005  0.005
 Parallelism2) / 100 mm  0.005  0.005  0.005
 Jaw width mm  50  73  100

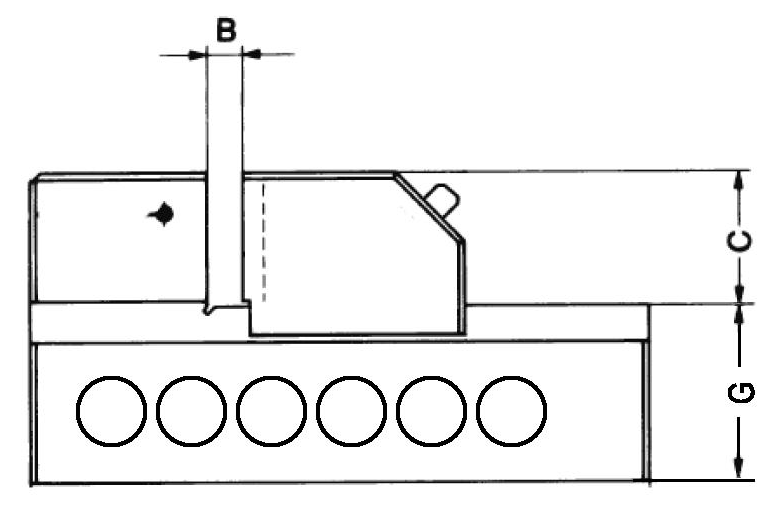

 B mm  65  100  125
 Total height mm  50  67  90
 C mm  25  35  45
 G mm  25  32  45
 Length body mm  140  190  245
 Weight kg  1.4  4.1  7.3
1) Base to stationary jaw clamping surface
2) Base to upper guide edge
