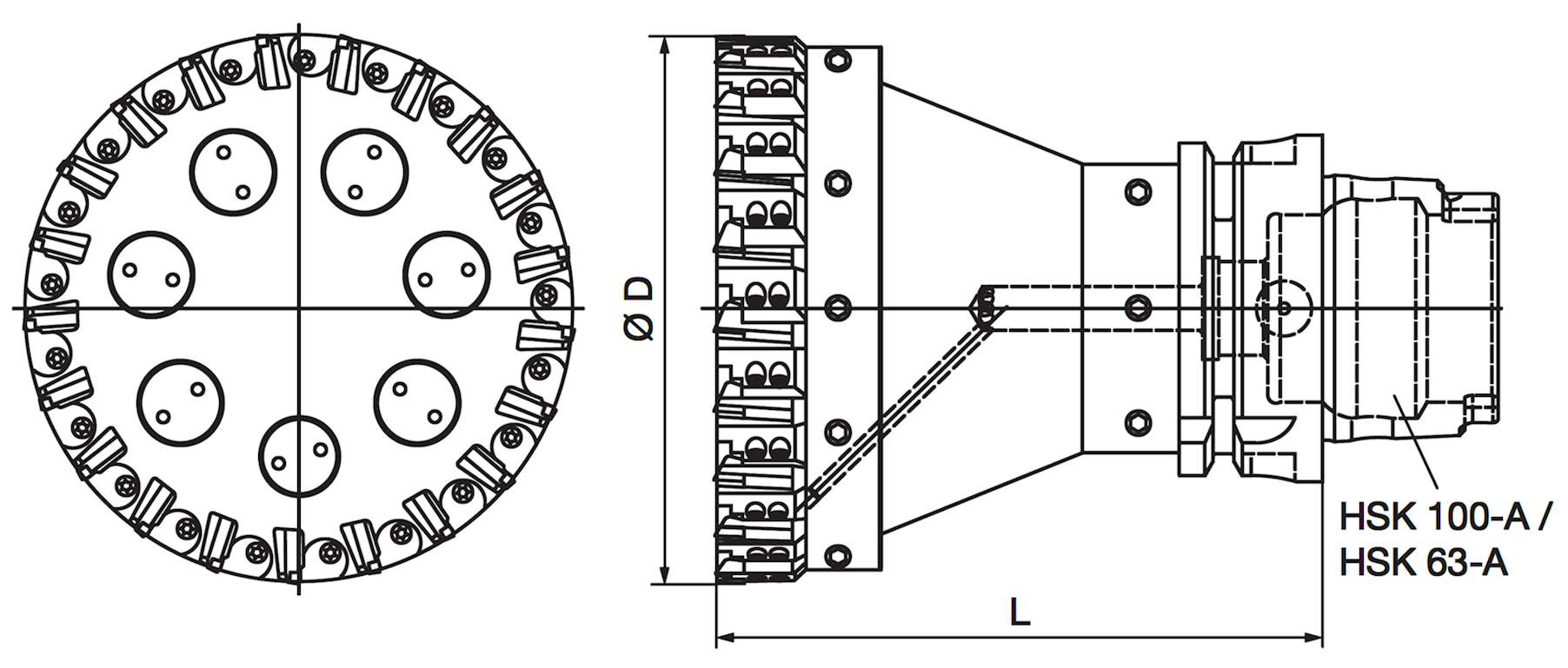

  HPC milling cutters
for finish machining.   Standard range with maximum number of
cutting edges for cutting depths up to max. 2 mm




Part nr.
20004
Code Drawing nr. Diameter/mm teeth L/mm max. rev./min. Shank Weight (kg)
         for maximum feed rates
50,101 Q9936-5000 1063R 50 9 100 32,000 HSK 63-A 1.5
63,101 Q9936-6300 1063R 63 12 100 31,000 HSK 63-A 1.9
80,101 Q9936-8000 1163R 80 15 110 28,000 HSK 63-A 2.7
100,101 Q9936-1000 1163R 100 21 110 24,000 HSK 63-A 3.7
125,101 Q9936-1250 1263R 125 27 123 20,000 HSK 63-A 5.5
160,101 Q9936-1600 1263R 160 33 123 15,000 HSK 63-A 7.7

Part nr.
20004
Code Drawing nr. Diameter/mm teeth L/mm max. rev./min. Shank Weight (kg)
         for maximum feed rates
50,103 Q9936-5000 1010R 50 9 100 32,000 HSK 100-A 2.8
63,103 Q9936-6300 1010R 63 12 100 31,000 HSK 100-A 3.2
80,103 Q9936-8000 1110R 80 15 110 28,000 HSK 100-A 4.2
100,103 Q9936-1000 1110R 100 21 110 24,000 HSK 100-A 5.7
125,103 Q9936-1250 1210R 125 27 123 20,000 HSK 100-A 7.7
160,103 Q9936-1600 1210R 160 33 123 15,000 HSK 100-A 10
Ordering example: 1 piece Q 9936-6300 1010 R = Ordering number: 20004 63,103



We reserve the right to make technical changes.
