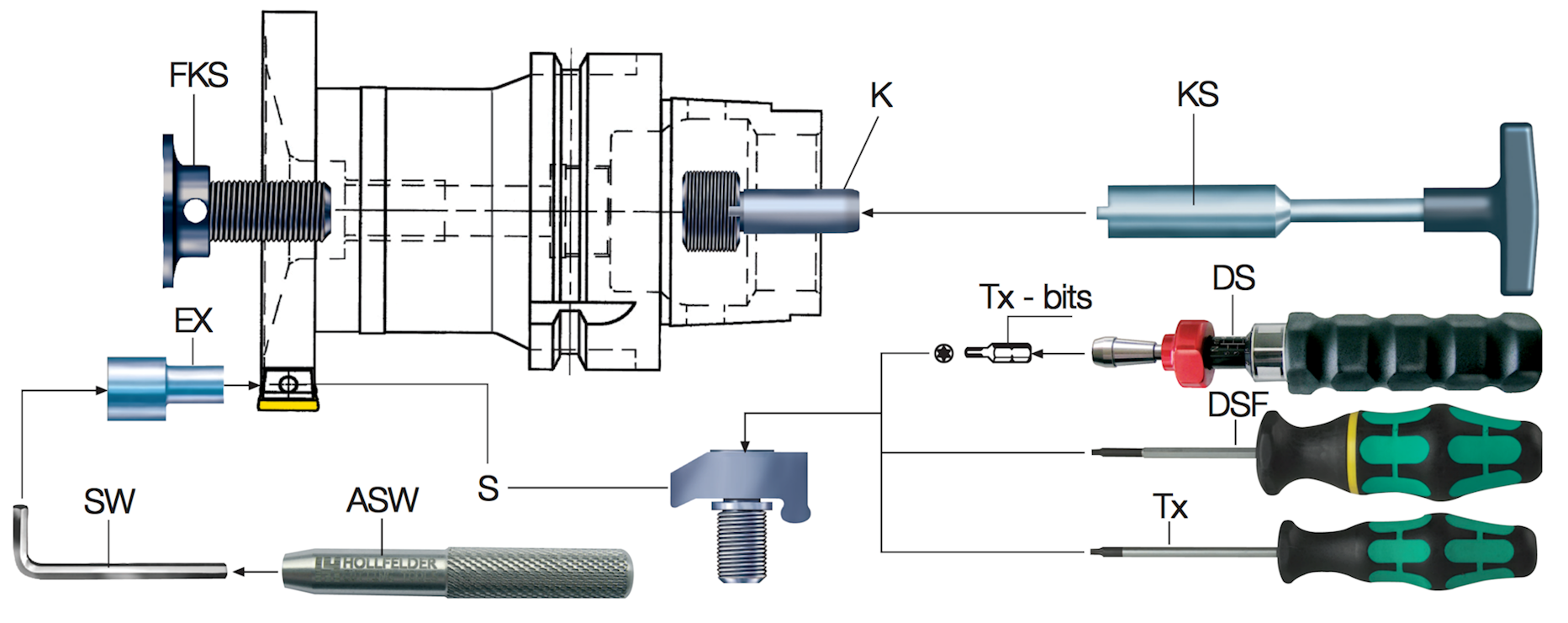

Spare Parts and Handling Tools
| S | Clamping set | SW | Adjusting key |
| Tx | Torx-screw driver | ASW | Adaptor |
| DS | Torque wrench adjustable | FKS | Coolant distribution screw |
| DSF | Torque wrench fixed | K | Coolant pipe |
| Tx-bits | Torx-bits | KS | Key for coolant pipe |
| EX | Eccentric bolt | Nm | Tightening torque ±10% |
Assembly paste E 5162 |
|||
Please note: Clamping set S contains: 1 Clamping set, 1 sealing ring, 1 clamping screw |
|||
| Tool | S | Tx | Tx-bits | EX | SW | ASW |
| H 3108-…. …. R | E 4265 | Tx 6 | Tx 6-bit | E 4349 | SW 1.3 | E 5005 |
| H 6120-…. …. R | E 4119 | Tx 8 | Tx 8-bit | E 4120 | SW 1.5 | E 5005 |
| DS / DSF - see adjustment instruction | ||||||
| Tool | FKS | K | KS |
| H 3108-…. …. R | for monobloc | DIN 69893 Viton-seals included |
|
| H 6120-…. …. R | Ø 32 E 4193 | for HSK 32 E 2807-1 | E 4298 |
| Ø 40 E 4192 | for HSK 40 E 2807-2 | E 4299 | |
| Ø 50 E 4230 | for HSK 50 E 2807-3 | E 4300 | |
| Ø 63 E 4154 | for HSK 63 E 2807-4 | E 4301 | |
| Ø 80 E 4121 | for HSK 80 E 2807-5 | E 4302 | |
| Ø 100 E 4247-1 | for HSK 100 E 2807-6 | E 4303 | |
| Ø 125 E 4247-1 | |||
| Ø 160 E 4275-1 | |||
| for put-on milling cutters | Nm | ||
| Ø 40 E 3805 | 40 | ||
| Ø 50 E 3806 | 60 | ||
| Ø 63 E 3806 | 60 | ||
| Ø 80 E 4079 | 80 | ||
| Ø 100 E 4247-2 | 95 | ||
| Ø 125 E 4275-2 | 100 | ||
| Ø 160 E 4275-2 | 100 |
We reserve the right to make technical changes.
