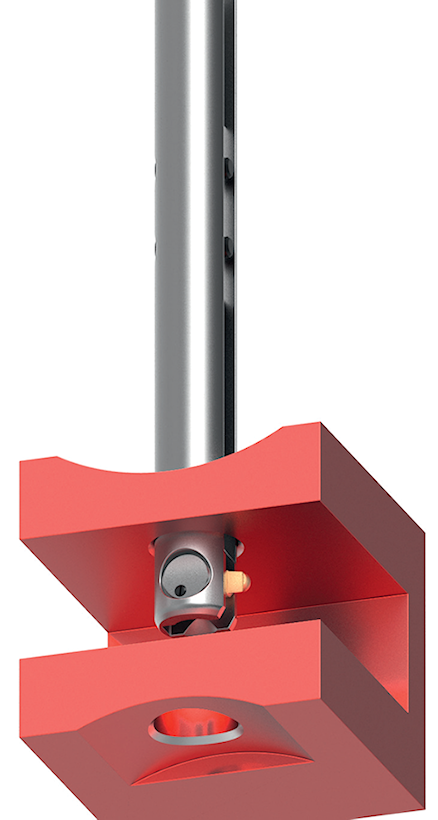

Forwards and backwards deburring of even and uneven bores in one single pass COFA is the first and unrivaled tool system that removes burrs on the front and back of a drilled through-hole on even and uneven surfaces in a single cycle. It radially removes the burrs off the bore edges, without requiring the workpiece to be turned or the spindle stopped. It is built for high volume production in CNC machines but can also be used for manual operation. The proven advanced system assures high efficiency and the required process capability. |
||
 |
|||
  |

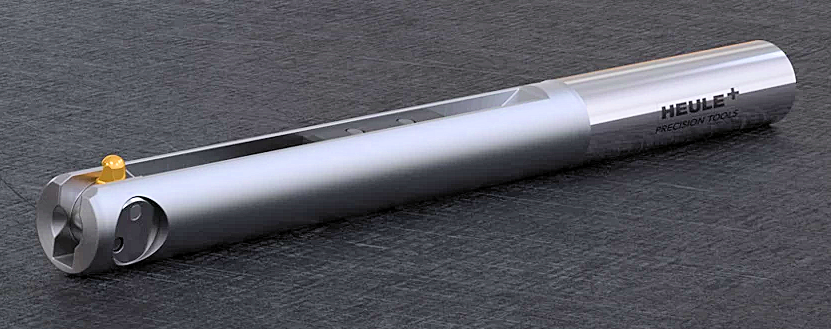

The COFA system guarantees a consistent, radially shaped deburring of even and uneven bore edges. Radius-shaped deburring profile. Deburring of bore diameters from Ø2.0 mm. Cassette solutions from bore diameter Ø10.0 mm to any size. It integrates the deburring process into an existing customer tool. The exchangable carbide blades are carried out with material dependent coatings. The ball shape of the blade protects the bore surface from damage when traversing the bore. The thread tool series has been optimized for easy center positioning of the screws. |
||

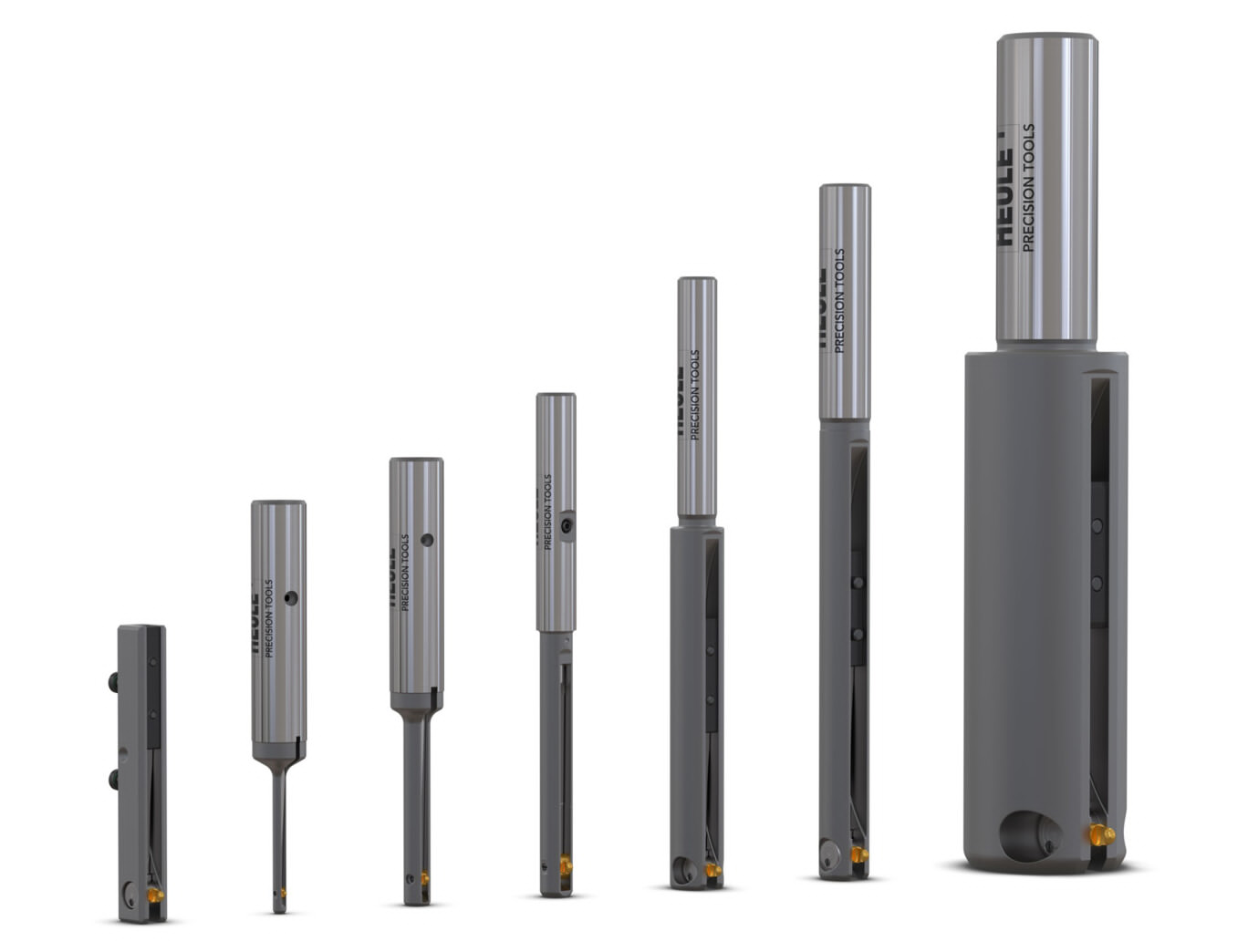

| Bore | Max. Deburring Size | Tool series |
| 2.0 – 3.1 mm | 0.15 mm | C2 |
| 3.0 – 4.1 mm | 0.25 mm | C3 |
| 4.0 – 5.0 mm | 0.25 mm | COFA 4M |
| 5.0 – 6.0 mm | 0.35 mm | COFA 5M |
| 6.0 – 8.4 mm | 0.70 mm | C6 |
| from 10.0 mm | 0.70 mm | C6 cassette |
| 8.0 – 12.4 mm | 0.90 mm | C8 |
| from 14.0 mm | 0.90 mm | C8 cassette |
| 12.0 – 26.0 mm | 1.40 mm | C12 |
| from 20.0 mm | 1.40 mm | C12 cassette |
We reserve the right to make technical changes.
