SNAP5 Cassette SNAP20 Cassette SNAP20 Cassette
> Ø12.6 mm > Ø25.0 mm > Ø35.0 mm
| Tool Table | |||

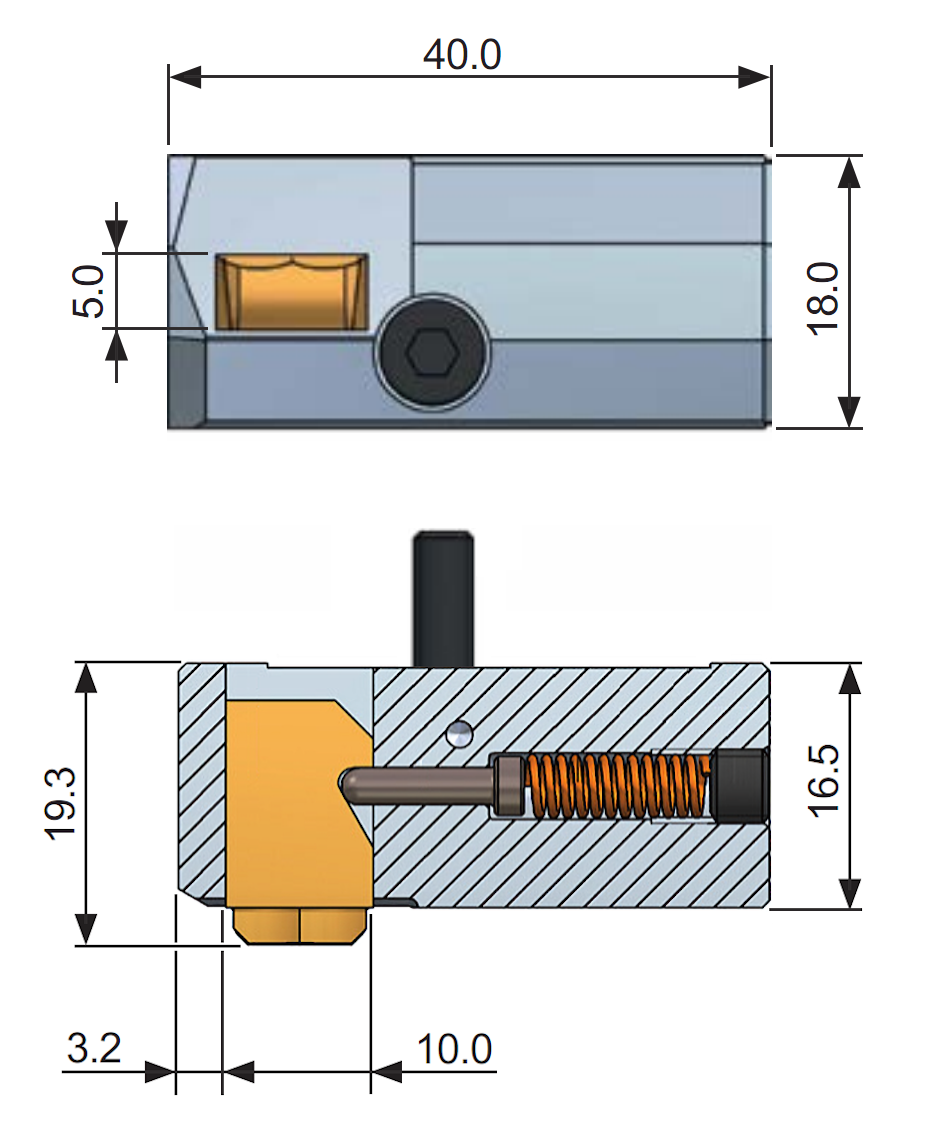

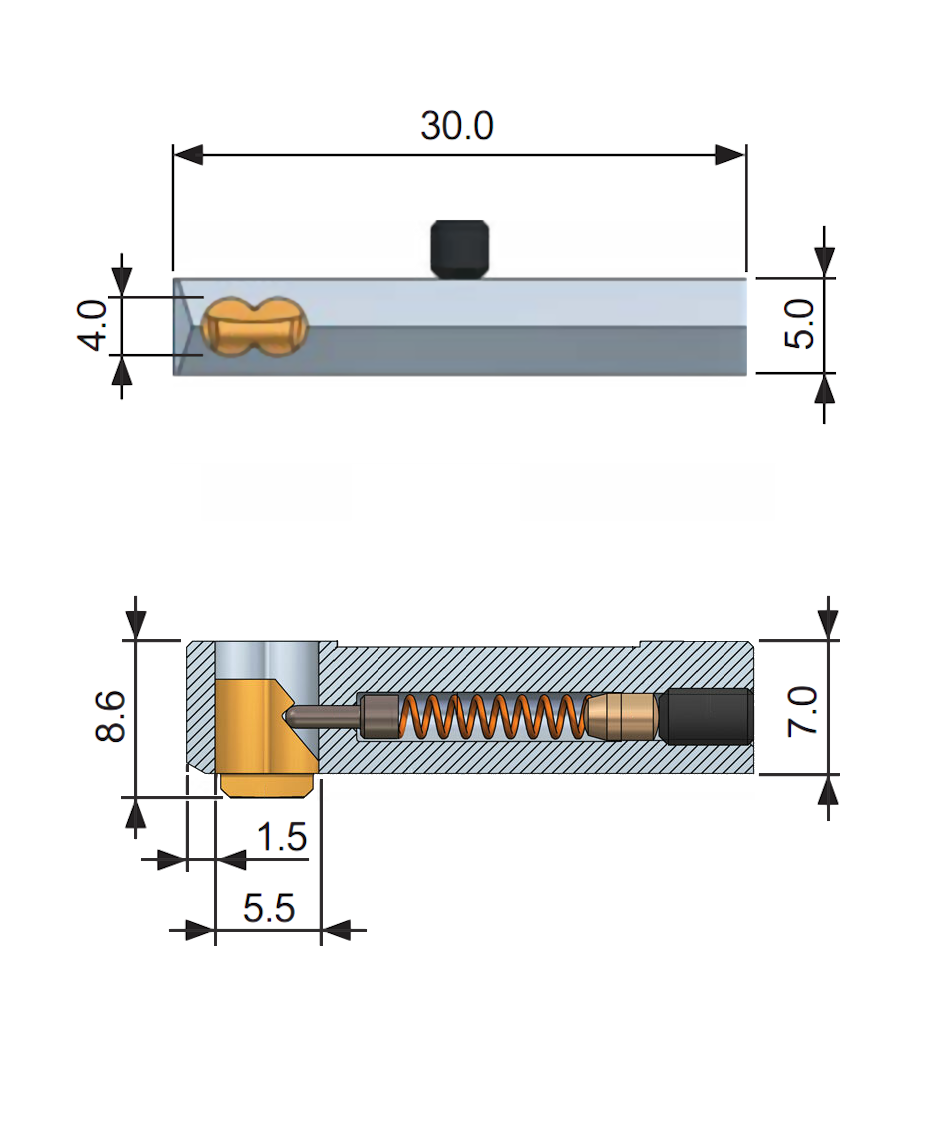

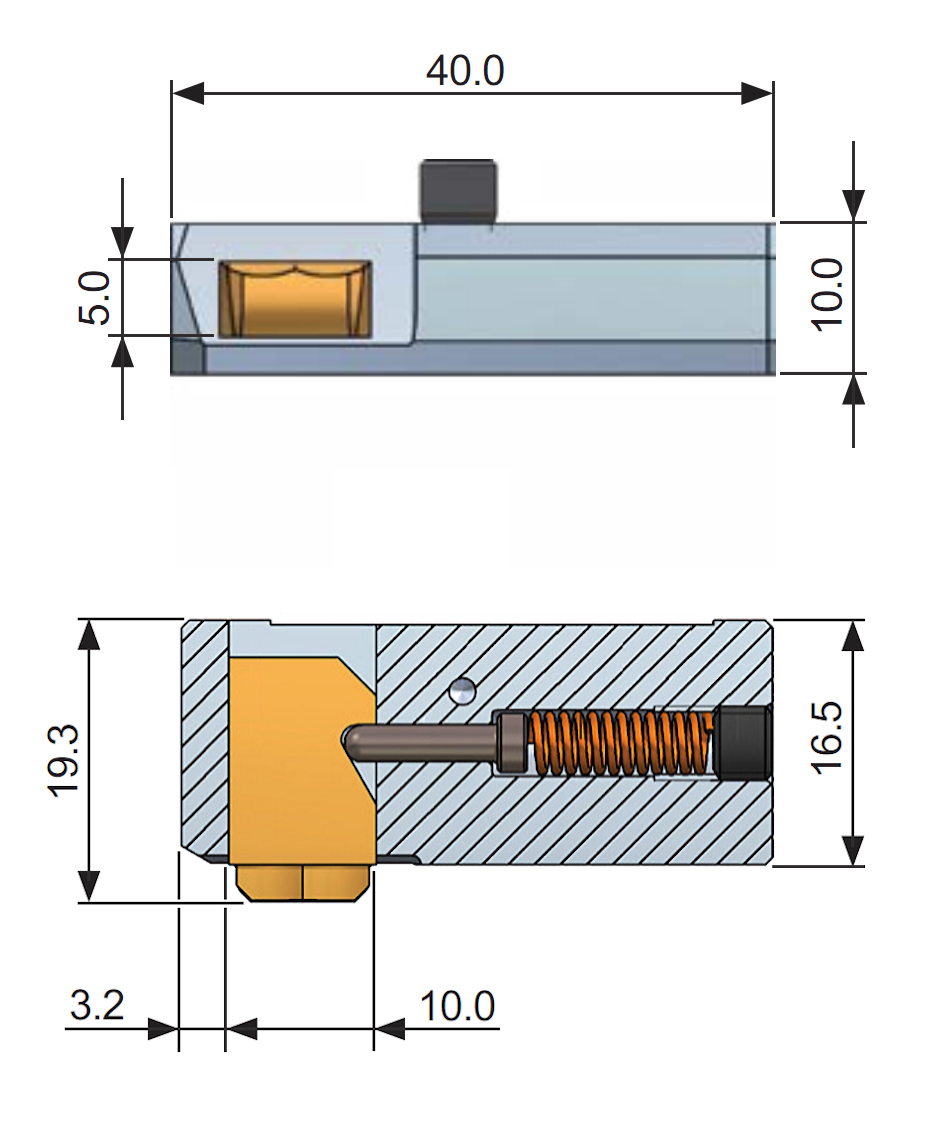

| Cassette complete without Blade |
|||
| Type | from Bore-Ø | Dimensions | Part No. |
| SNAP5 /12.6 Cassette | > Ø12.6 mm1 | see illustration above | GH-Q-O-1430 |
| SNAP20/25.0 Cassette | > Ø25.0 mm - Ø35.0 mm | see illustration above | GH-Q-O-1130 |
| SNAP20/35.0 Cassette | > Ø35.0 mm | see illustration above | GH-Q-O-1030 |
| 1) The standard range of cassette blades are available for the bore diameter range 20.0 to 150.0 mm. For bore diameters < 20.0 mm, the blades are available on request only. |
|||
| Spare Parts | ||||

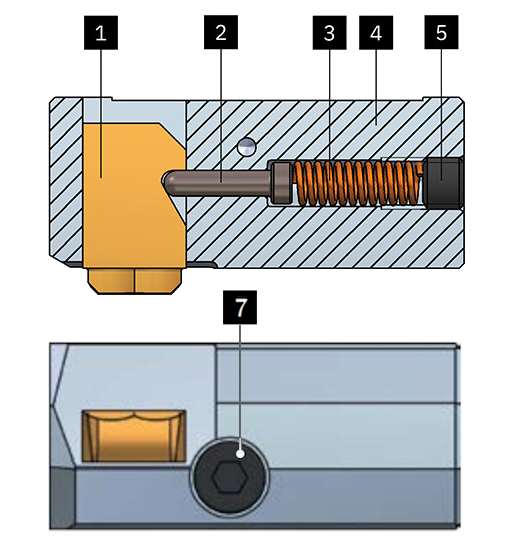

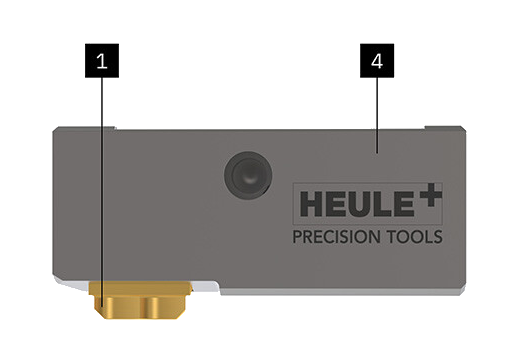

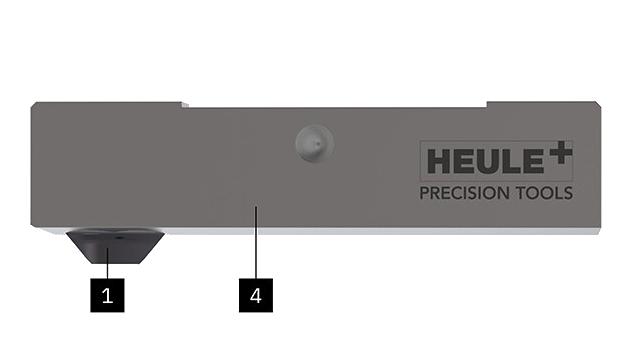

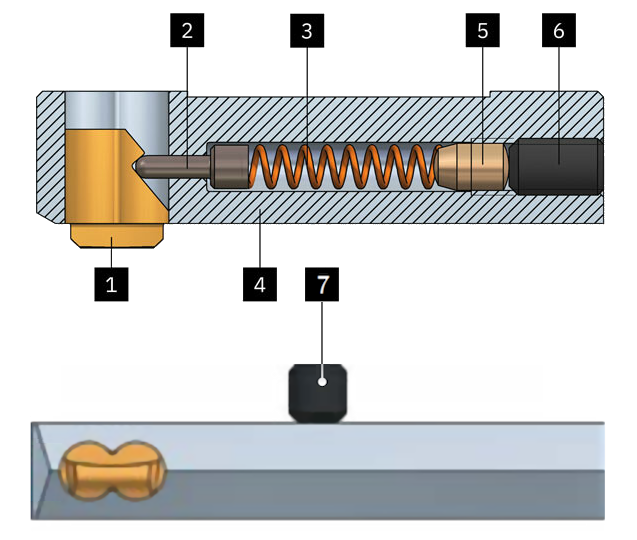

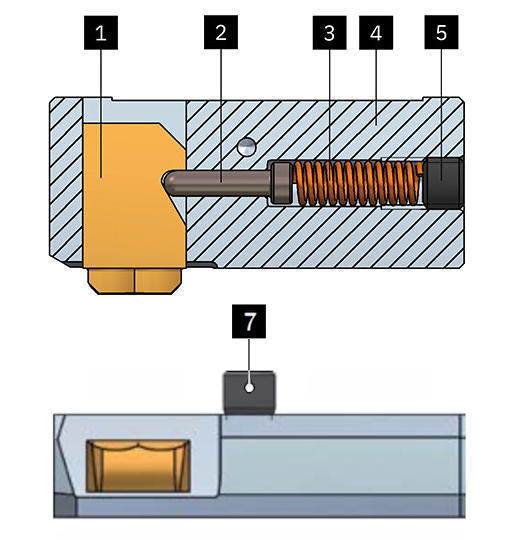

| Pos. | Description | SNAP5/12.6 | SNAP20/25 | SNAP20/35 |
| 1 | SNAP blade | see below | see below | see below |
| 2 | Control bolt | GH-Q-E-0008 | GH-Q-E-0003 | GH-Q-E-0003 |
| 3 | Spring | GH-H-F-0027 | GH-H-F-0012 | GH-H-F-0012 |
| 4 | Cassette tool body | GH-Q-G-1382 | GH-Q-G-1123 | GH-Q-G-1034 |
| 5 | Distance pin | GH-Q-E-0046 | - | - |
| 6 | Set screw | GH-H-S-0127 | GH-H-S-0120 | GH-H-S-0120 |
| 7 | Set screw Wrench to Pos. 7 |
GH-H-S-0355 GH-H-S-2101 |
GH-H-S-0202 GH-H-S-2100 |
GH-H-S-0502 GH-H-S-2100 |
| Blades GS Geometry 90° | |||||
| SNAP5 – Part No. forward and backward cutting |
backward cutting only |
||||
| Chamf.-1 | Bore-Ø | Coating A | Coating D | Coating A | Coating D |
| 0.5 | 20.0-85.0 | GH-Q-M-30780* | GH-Q-M-30980 | GH-Q-M-31780 | GH-Q-M-31980 |
| 1.0 | 20.0-85.0 | GH-Q-M-30781* | GH-Q-M-30981 | GH-Q-M-31781 | GH-Q-M-31981 |
| 1.5 | 20.0-85.0 | GH-Q-M-30782* | GH-Q-M-30982 | GH-Q-M-31782 | GH-Q-M-31982 |
| 0.5 | 90.0-150.0 | GH-Q-M-30783* | GH-Q-M-30983 | GH-Q-M-31783 | GH-Q-M-31983 |
| 1.0 | 90.0-150.0 | GH-Q-M-30784* | GH-Q-M-30984 | GH-Q-M-31784 | GH-Q-M-31984 |
| 1.5 | 90.0-150.0 | GH-Q-M-30785* | GH-Q-M-30985 | GH-Q-M-31785 | GH-Q-M-31985 |
| SNAP20 – Part No. forward and backward cutting |
backward cutting only |
||||
| Chamf.-1 | Coating A | Coating T | Coating A | Coating T | |
| 0.5 | GH-Q-M-01902* | GH-Q-M-01901 | GH-Q-M-01922 | GH-Q-M-01921 | |
| 1.0 | GH-Q-M-01905* | GH-Q-M-01904 | GH-Q-M-01925 | GH-Q-M-01924 | |
| 1.5 | GH-Q-M-01908* | GH-Q-M-01907 | GH-Q-M-01928 | GH-Q-M-01927 | |
| *) Standard items / Please enquire about stock or delivery times for all non-standard blades. 1) The indicated dimension is the theoretically possible chamfer capacity / depth maximum. Explanations to coatings T: Coating for normal requirements A: Coating for increased requirements D: Coating for aluminium alloys only |
|||||
| Limiting values | ||||
| SNAP5 | SNAP20 | SNAP20 | ||
| Bore-Ø | > Ø12.6 mm | > Ø25.0 mm | > Ø35.0 mm | |
| max. ØD | Ød + 3.0 mm | Ød + 3.0 mm | Ød + 3.0 mm | |
| max. ØD1 | Ød - 1.0 mm | Ød - 2.0 mm | Ød - 4.0 mm | |
We reserve the right to make technical changes.
