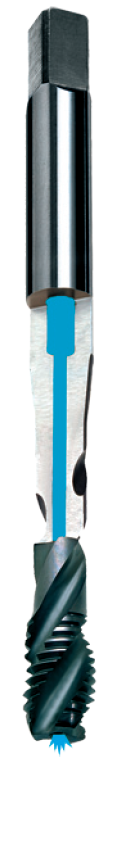

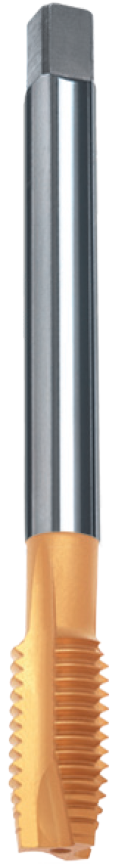

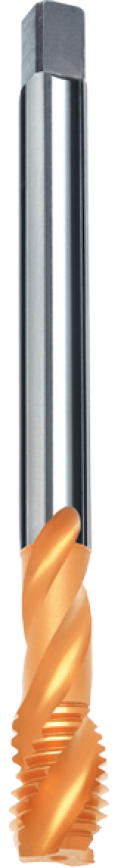

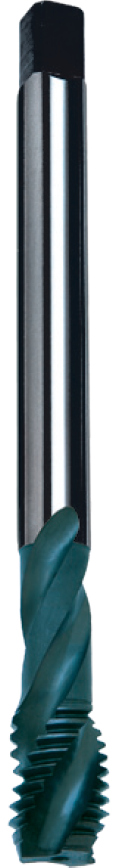

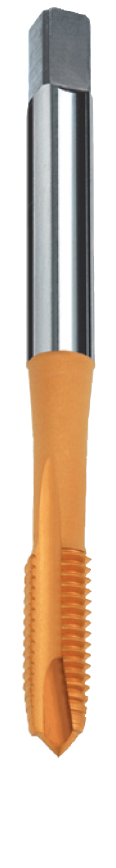

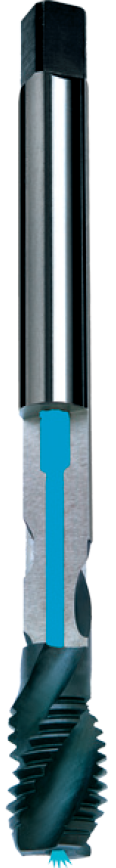

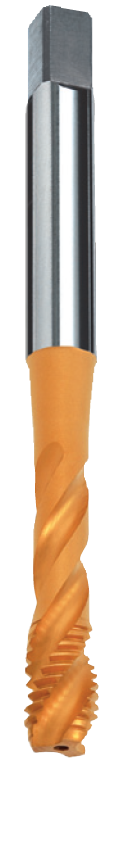

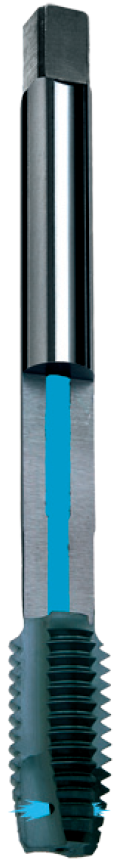

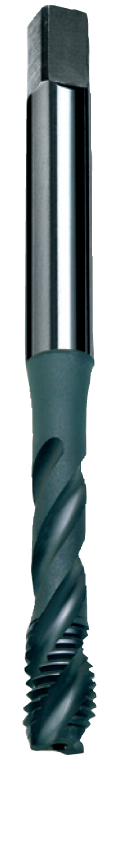

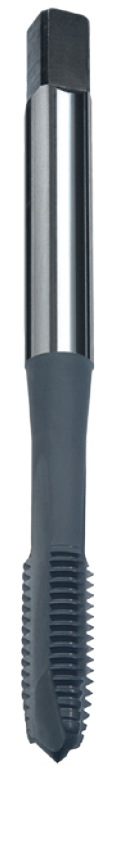

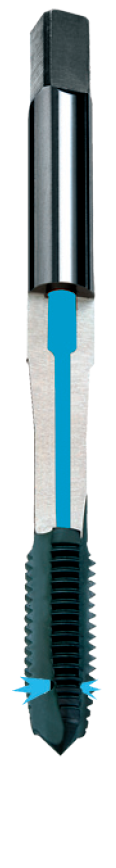

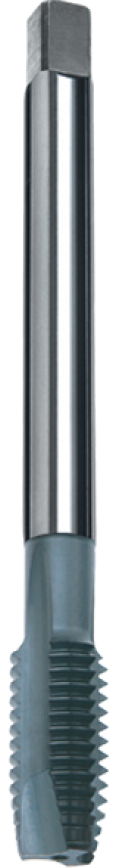

Ferg Threading Taps M T124A, T124, W124A, W124, W624A, W624, T122A, T122, W122A, W122, W622A, W622

Threading Taps
ISO Metric coarse thread DIN 13

Materials 500 ÷ 1.350 N/mm² or 42 HRC For long-chipping materials										Special High speed steel class E with vanadium		DIN 371 T124A 2000012410	DIN 376 T124 2500012410	DIN 371 W124A 2000012414	DIN 376 W124 2500012414	DIN 371 W624A 2000062414	DIN 376 W624 2500062414	DIN 371 T122A 2000012210	DIN 376 T122 2500012210	DIN 371 W122A 2000012214	DIN 376 W122 2500012214	DIN 371 W622A 2000062214	DIN 376 W622 2500062214
										HOLE		≤ 3 x d₁ Through hole		≤ 3 x d₁ Through hole		≤ 3 x d₁ Through hole		≤ 3 x d₁ Blind hole		≤ 3 x d₁ Blind hole		≤ 3 x d₁ Blind hole
										Chamfer lead acc. to DIN 2197		B = 4xP		B = 4xP		B = 4xP		C = 2.5xP		C = 2.5xP		C = 2.5xP
										LIMIT		6HX		6HX		6HX		6HX		6HX		6HX
										COATING		TiN coating (Titanium nitride)		TiAlN+WC/C coating (Titanium Aluminium Nitride + Tungsten carbide)		TiAlN+WC/C coating (Titanium Aluminium Nitride + Tungsten carbide)		TiN coating (Titanium nitride)		TiAlN+WC/C coating (Titanium Aluminium Nitride + Tungsten carbide)		TiAlN+WC/C coating (Titanium Aluminium Nitride + Tungsten carbide)
										DIN		371	376	371	376	371	376	371	376	371	376	371	376
										ORDER No. EDP = Nr.+ ★		DIN 371 2000012410* T124A		DIN 371 2000012414* W124A		DIN 371 2000062414* W624A		DIN 371 2000012210* T122A		DIN 371 2000012214* W122A		DIN 371 2000062214* W622A
l₁ mm	l₂ mm	mm	l₃ mm	DIN 371		DIN 376		mm	d₁ mm	P mm	★	DIN 376 2500012410* T124		DIN 376 2500012414* W124		DIN 376 2500062414* W624		DIN 376 2500012210* T122		DIN 376 2500012214* W122		DIN 376 2500062214* W622
				d₂ mm	a mm	d₂ mm	a mm
												Z		Z		Z		Z		Z		Z
45	9	9	-	2.8	2.1			1.6	M 2	(0.4)	020	3 ■		3 ■				3 ■		3 ■
50	9	9	-	2.8	2.1			2.05	M 2.5	(0.45)	025	3 ■		3 ■				3 ■		3 ■
56	11	5	16	3.5	2.7	2.2	-	2.5	M 3	(0.5)	030	3 ■		3 ■				3 ■		3 ■
56	12	6	17	4	3	2.5	2.1	2.9	M 3.5	(0.6)	035	3		3				3		3
63	13	7	19	4.5	3.4	2.8	2.1	3.3	M 4	(0.7)	040	3 ■		3 ■				3 ■		3 ■
70	15	8	29	6	4.9	3.5	2.7	4.2	M 5	(0.8)	050	3 ■		3 ■				3 ■		3 ■
80	17	10	30	6	4.9	4.5	3.4	5	M 6	(1)	060	3 ■		3 ■				3 ■		3 ■
80	17	10	31	7	5.5	5.5	4.3	6	M 7	(1)	070	3		3				3		3
90	20	12	35	8	6.2	6	4.9	6.8	M 8	(1.25)	080	3 ■		3 ■		3 ■		3 ■		3 ■		3 ■
100	22	15	38	10	8	7	5.5	8.5	M 10	(1.5)	100	3 ■		3 ■		3 ■		3 ■		3 ■		3 ■
110	24	16				9	7	10.2	M 12	(1.75)	120	4 ■		4 ■		4 ■		4 ■		4 ■		4 ■
110	26	20				11	9	12	M 14	(2)	140	4 ■		4 ■		4		4 ■		4 ■		4
110	27	20				12	9	14	M 16	(2)	160	4 ■		4 ■		4 ■		4 ■		4 ■		4 ■
125	30	25				14	11	15.5	M 18	(2.5)	180	4		4		4		4		4		4
140	32	25				16	12	17.5	M 20	(2.5)	200	4 ■		4 ■		4 ■		4 ■		4 ■		4 ■
140	32	25				18	14.5	19.5	M 22	(2.5)	220	4		4		4		4		4		4
160	34	30				18	14.5	21	M 24	(3)	240	4 ■		4 ■		4		4 ■		4 ■		4
160	36	30				20	16	24	M 27	(3)	270	4		4		4		5		5		5
180	40	35				22	18	26.5	M 30	(3.5)	300	4		4		4		5		5		5
180	40	40				25	20	29.5	M 33	(3.5)	330	4		4		4		5		5		5
200	50	45				28	22	32	M 36	(4)	360	4		4		4		5		5		5
										■ = Stock				EDP: W122A M 10 = 2000012214100

We reserve the right to make technical changes.
