Ferg Threading Taps M 183,682,183A,682A

Threading Taps
ISO Metric coarse thread DIN 13

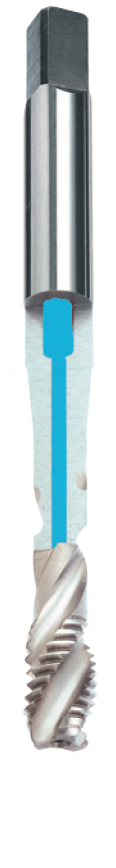

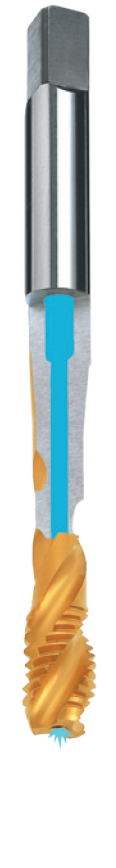

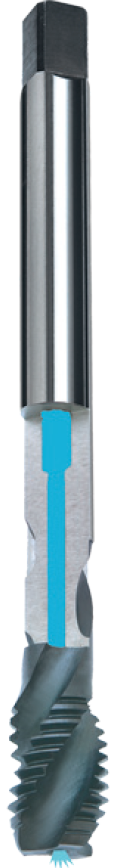

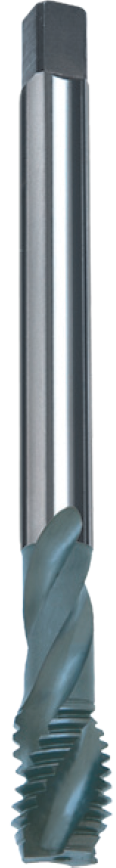

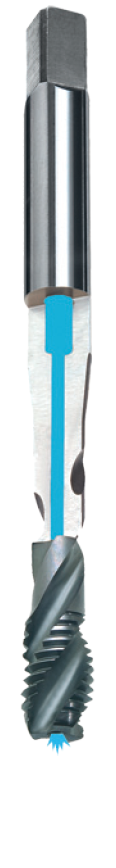

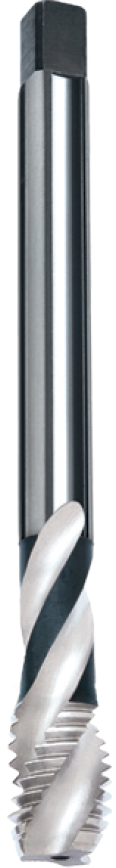

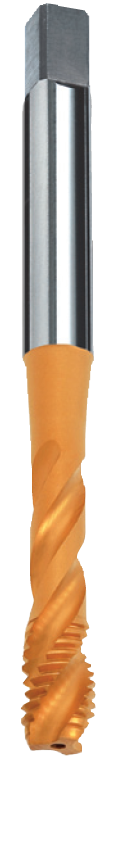

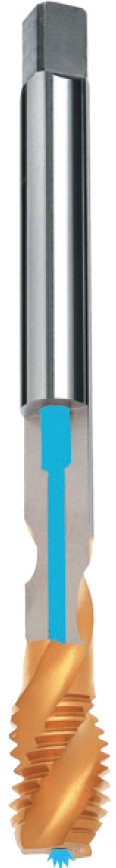

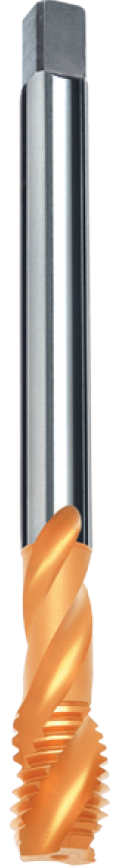

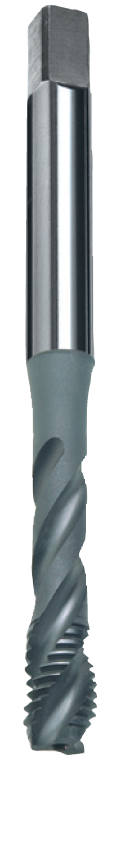

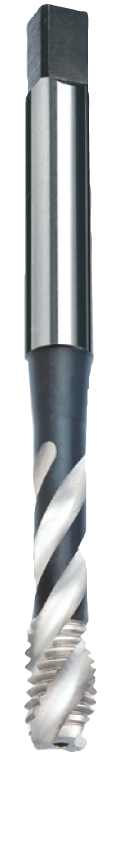

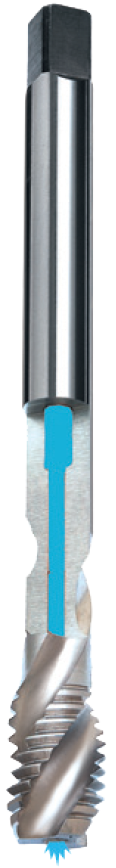

Heat treated and heat-resistant steels up to 1.000 N/mm² or 30 HRC										High speed steel class E with 3% vanadium 1.3344 (EMo5V3) (M-3/2) High speed steel 1.3343 (DMo5) (M-2)		DIN 371 183A 2000018300	DIN 376 183 2500018300	DIN 371 T183A 2000018310	DIN 376 T183 2500018310	DIN 371 A183A 2000018312	DIN 376 A183 2500018312	DIN 371 682A 2000068200	DIN 376 682 2500068200	DIN 371 T682A 2000068210	DIN 376 T682 2500068210	DIN 371 A682A 2000068212	DIN 376 A682 2500068212
										HOLE		≤ 3 x d₁ Blind hole		≤ 3 x d₁ Blind hole		≤ 3 x d₁ Blind hole		≤ 3 x d₁ Blind hole		≤ 3 x d₁ Blind hole		≤ 3 x d₁ Blind hole
										Chamfer lead acc. to DIN 2197		E = 1.5xP		E = 1.5xP		E = 1.5xP		C = 2.5xP		C = 2.5xP		C = 2.5xP
										LIMIT		ISO 2 (6H)		ISO 2 (6H)		ISO 2 (6H)		ISO 2 (6H)		ISO 2 (6H)		ISO 2 (6H)
										COATING		Bright (without Coating or without Surface treatment)		TiN coating (Titanium nitride)		TiAlN coating (Titanium Aluminium Nitride)		Bright (without Coating or without Surface treatment)		TiN coating (Titanium nitride)		TiAlN coating (Titanium Aluminium Nitride)
										DIN		371	376	371	376	371	376	371	376	371	376	371	376
										ORDER No. EDP = Nr.+ ★		DIN 371 2000018300* 183A		DIN 371 2000018310* T183A		DIN 371 2000018312* A183A		DIN 371 2000068200* 682A		DIN 371 2000068210* T682A		DIN 371 2000068212* A682A
l₁ mm	l₂ mm	mm	l₃ mm	DIN 371		DIN 376		mm	d₁ mm	P mm	★	DIN 376 2500018300* 183		DIN 376 2500018310* T183		DIN 376 2500018312* A183		DIN 376 2500068200* 682		DIN 376 2500068210* T682		DIN 376 2500068212* A682
				d₂ mm	a mm	d₂ mm	a mm
												Z		Z		Z		Z		Z		Z
40	6	6	-	2.5	2.1			0.75	M 1*	(0.25)	010
40	6	6	-	2.5	2.1			0.85	M 1.1*	(0.25)	011
40	6	6	-	2.5	2.1			0.95	M 1.2*	(0.25)	012
40	7	7	-	2.5	2.1			1.1	M 1.4*	(0.3)	014
40	8	8	-	2.5	2.1			1.25	M 1.6	(0.35)	016
40	8	8	-	2.5	2.1			1.3	M 1.7	(0.35)	017
40	8	8	-	2.5	2.1			1.45	M 1.8	(0.35)	018
45	9	9	-	2.8	2.1			1.6	M 2	(0.4)	020
45	9	9	-	2.8	2.1			1.75	M 2.2	(0.45)	022
45	9	9	-	2.8	2.1			1.9	M 2.3	(0.4)	023
50	9	9	-	2.8	2.1			2.05	M 2.5	(0.45)	025
50	9	9	-	2.8	2.1			2.1	M 2.6	(0.45)	026
56	11	5	16	3.5	2.7	2.2	-	2.5	M 3	(0.5)	030	3 ■		3 ■		3 ■		3		3		3
56	12	6	17	4	3	2.5	2.1	2.9	M 3.5	(0.6)	035	3		3		3		3		3		3
63	13	7	19	4.5	3.4	2.8	2.1	3.3	M 4	(0.7)	040	3 ■		3 ■		3 ■		3		3		3
70	15	8	29	6	4.9	3.5	2.7	4.2	M 5	(0.8)	050	3 ■		3 ■		3 ■		3 ■		3 ■		3 ■
80	17	10	30	6	4.9	4.5	3.4	5	M 6	(1)	060	3 ■		3 ■		3 ■		3 ■		3 ■		3 ■
80	17	10	31	7	5.5	5.5	4.3	6	M 7	(1)	070	3		3		3		3		3		3
90	20	12	35	8	6.2	6	4.9	6.8	M 8	(1.25)	080	3 ■		3 ■		3 ■		3 ■		3 ■		3 ■
90	20	12	35	9	7	7	5.5	7.8	M 9	(1.25)	090	3		3		3		3		3		3
100	22	15	38	10	8	7	5.5	8.5	M 10	(1.5)	100	3 ■		3 ■		3 ■		3 ■		3 ■		3 ■
110	24	16				9	7	10.2	M 12	(1.75)	120	3 ■		3 ■		3 ■		3 ■		3 ■		3 ■
110	26	20				11	9	12	M 14	(2)	140	3 ■		3 ■		3 ■		3		3		3
110	27	20				12	9	14	M 16	(2)	160	4 ■		4 ■		4 ■		4 ■		4 ■		4 ■
125	30	25				14	11	15.5	M 18	(2.5)	180	4		4		4		4		4		4
140	32	25				16	12	17.5	M 20	(2.5)	200	4 ■		4 ■		4 ■		4 ■		4 ■		4 ■
140	32	25				18	14.5	19.5	M 22	(2.5)	220	4		4		4		4		4		4
160	34	30				18	14.5	21	M 24	(3)	240	4 ■		4 ■		4 ■		4 ■		4 ■		4 ■
160	36	30				20	16	24	M 27	(3)	270	4		4		4		4		4		4
180	40	35				22	18	26.5	M 30	(3.5)	300	4		4		4		4		4		4
180	40	40				25	20	29.5	M 33	(3.5)	330	4		4		4		4		4		4
200	50	45				28	22	32	M 36	(4)	360	5		5		5		5		5		5
200	50	45				32	24	35	M 39	(4)	390	5		5		5		5		5		5
200	56	50				32	24	37.5	M 42	(4.5)	420	5		5		5		5		5		5
220	58	50				36	29	40.5	M 45	(4.5)	450	5		5		5		5		5		5
250	65	55				36	29	43	M 48	(5)	480	5		5		5		5		5		5
250	65	55				40	32	47	M 52	(5)	520	5		5		5		5		5		5
												■ = Stock				EDP: T184A M 8 = 2000018410080

We reserve the right to make technical changes.
