   2-jaw Chuck Serration 90° Pipe Bar Asymmetrical Workpiece |

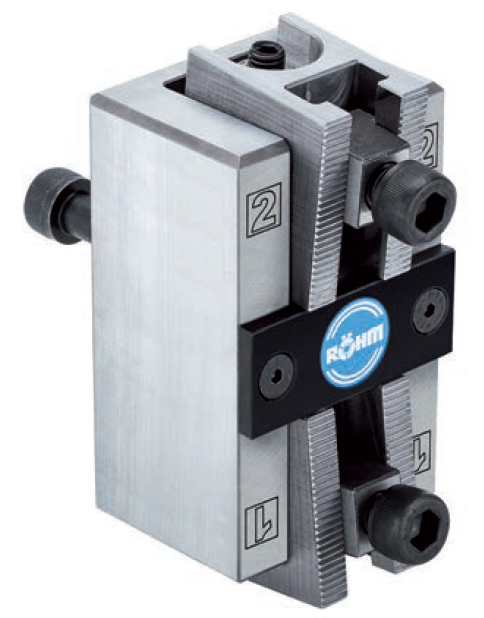

Gripper Chuck GF - for cylindrical shank DIN 69880  |
APPLICATION Optimal for moving and positioning bar material and pipes in automatic production sequence. TYPE 2-jaw gripper chuck GF for cylinder shaft DIN69880. TECHNICAL FEATURES - Clamping force by means of disc spring package - With exchangeable take-up shaft CUSTOMER BENEFITS » Simple, operationally safe system thanks to spring pretensioning with automatic jaw resetting » High efficiency thanks to direct placement on the tool turret without additional actuation device » Simple retrofitting » Clamping jaws can be adapted for special profiles |
Included in the scope of delivery: Chuck, chuck and jaw mounting screws, slot nuts (without top jaws) |
We reserve the right to make technical changes.
