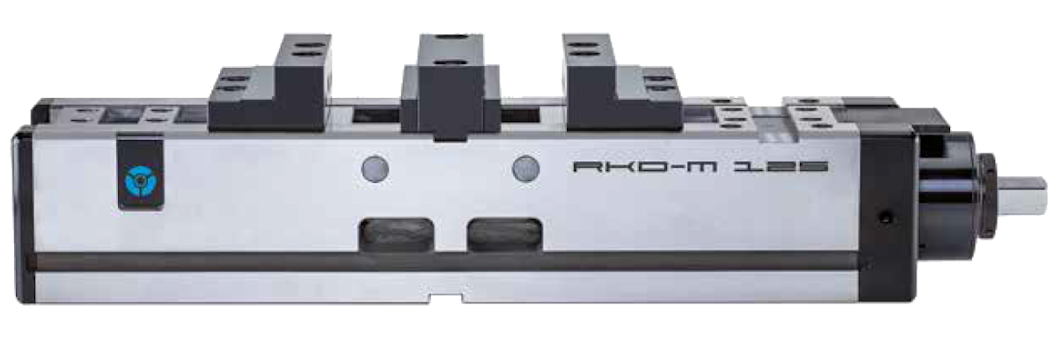

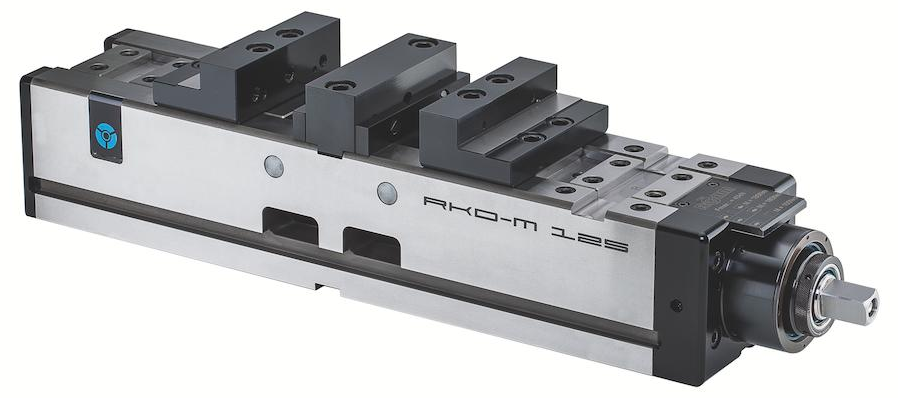

Röhm Vice RKD-M

NC-Compact Twin Vices
RKD-M- double clamping,
without power transmitter

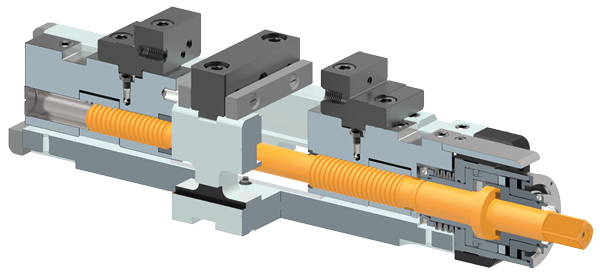

APPLICATION For flexible clamping tasks on machining centers and other production systems. Triple clamping function: Double clamping - Centric clamping - Single clamping. TYPE Clamping system mechanical without power transmitter, manually operated. With one-sided drive spindle.
TECHNICAL FEATURES - Vice with two movable clamping jaws and a stationary center jaw - Steel basic body as well as all guides hardened and ground on all sides - Fastening only possible with clamping claws (direct fastening on request) - Constant clamping force for every clamping operation and high repeatability when a torque wrench is used
CUSTOMER BENEFITS » Large clamp stroke (50 mm per jaw) » The clamping thread of the spindle is protected from dirt and chips in every basic jaw position » With grease nipples installed on both sides, that all guides and the spindle thread can be lubricated quickly and easily » Horizontal, vertical or side mounting

A32
RKD-M, with reversible stepped jaws and centre jaw

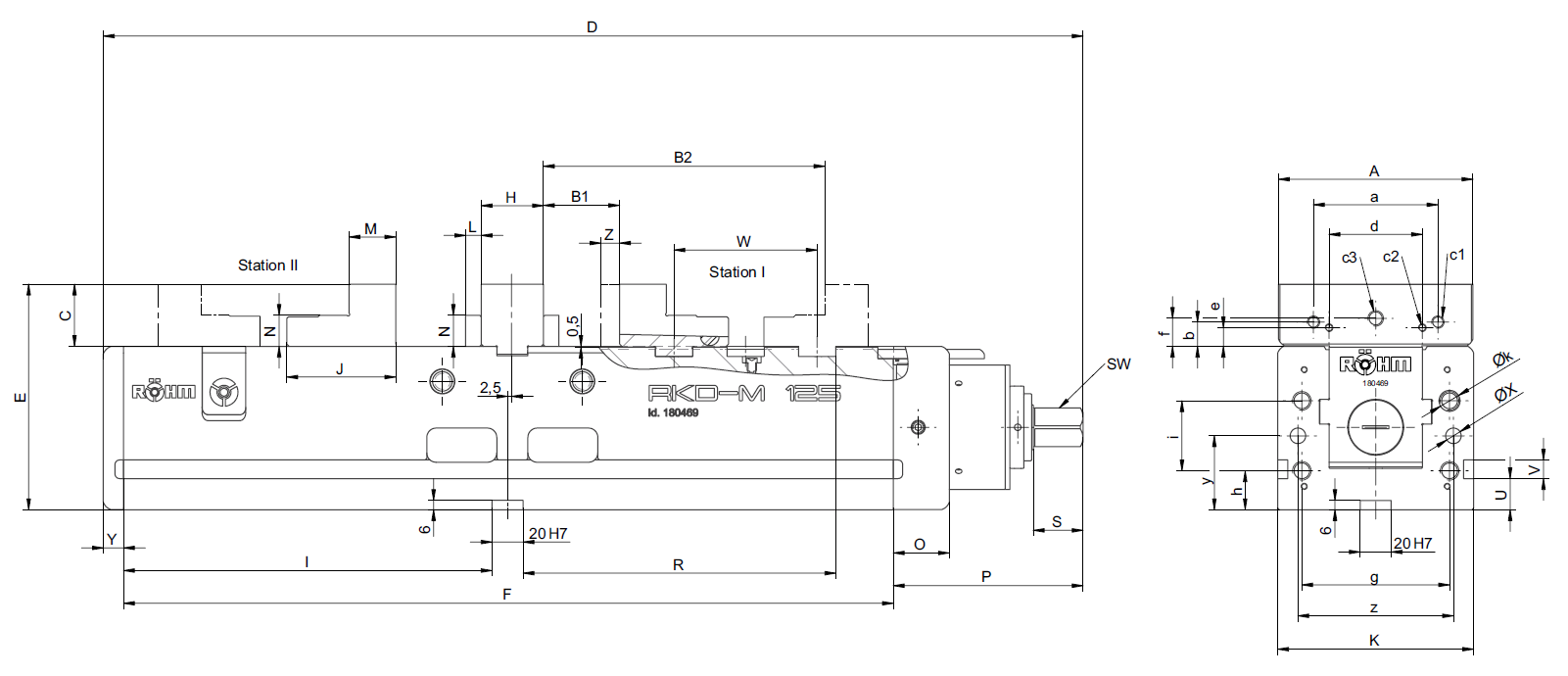

Item No.	180468	180469
Jaw width A mm	92	125
B1 slot 1 mm	0 - 48	0 - 48
B1 slot 2 mm	48 - 96	46 - 94
B1 slot 3 mm	-	92 - 140
B2 slot 1 mm	42 - 79	51 - 88
B2 slot 2 mm	79 - 127	86 - 134
B2 slot 3 mm	-	132 - 180
C mm	32	40
D mm	492	630
E mm	117	145
F mm	366	495
G_-0.02 mm	85	105
H_-0.02 mm	30	40
J mm	56	70
K mm	94	126
L mm	10	10
M mm	25	30
N_-0.01 mm	16	20
O mm	36	36
P mm	114	122
R mm	143	201
S mm	31	32
T_-0.02 mm	30	37.5
U mm	20	20
V mm	12	12
W mm	1 x 48	2 x 46
Y mm	12	13
Z mm	50/53	50/53
Key-width SW	17	19
a mm	63	80
b mm	13.6	15.6
c1	M 6 x 14	M 8 x 14
c2	M 5 x 9	M 5 x 10
c3	M 10 x 16	M 10 x 18
d mm	48	60
e mm	8	12
f mm	14	18
g mm	70	95
h mm	20	25
i mm	50	45
k x depth	M 10 x 18	M 12 x 22
l_-0.02 mm	177	237
y±0.01 mm	40	47.5
z mm	72	100
Clamping force kN	25	40
Weight kg	24	52

Accessories RKD-M

APPLICATION
Suitable for the complete setup of two NC compact clamps, back-to-back.

TYPE
With centering for machine table/pallet.
Without mounting or height adjustment of the clamps.
Incl. T-nuts, clamping claws and screws for aligning and fastening the clamps on the basic plate.

TECHNICAL FEATURES
- Bores for modular grid 40/50/63
- Without aligning groove/bore (machine side)

A37
Standard basic plate GP, for DUO-tower for NC-compact vices

Item no.	164016	164020
For	RKD-M 92	RKD-M 125
A mm	250	290
B mm	250	270
C mm	45	45
D mm	5 x 45°	5 x 45°
E mm	20	20
F	KM 12	KM 16
G	KM 16	KM 16
H	KM 16	KM 12
J mm	50	50
K mm	126	160
L mm	126	160
M mm	160	200
N mm	160	200
O mm	200	252
P mm	200	126
Weight kg	24	29

Accessories RKD-M

A37

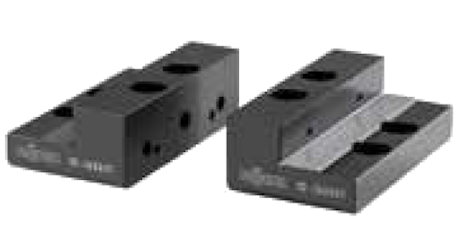

Stepped jaws SB, reversible, with fixing screws

Item no.	Contents of delivery	Size	Width mm	Height mm
161831	set	92	92	32
162631	set	125	125	40

A37

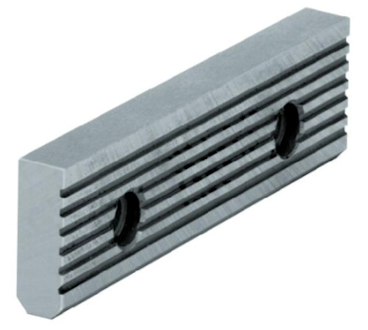

Standard jaws SGN, one side smooth, one side grooved, hardened and ground

Item no.	Contents of delivery	Size	Width mm	Height mm
162363	set	92	92	32
158897	set	125	125	39.7

A37

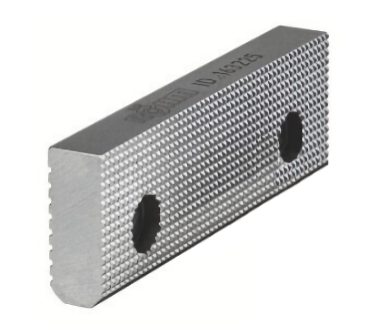

Standard jaws finely checkered SGNf, one side finely checkered, one side grooved, hardened and ground

Item no.	Contents of delivery	Size	Width mm	Height mm
163223	set	92	92	32
163225	set	125	125	39.7

A37

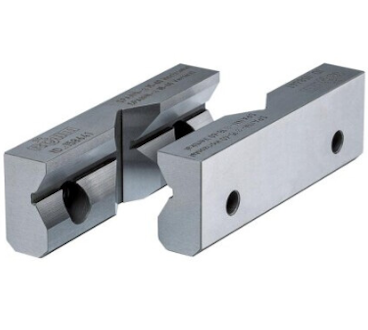

V-jaw PB, horizontal and vertical

Item no.	Contents of delivery	Size	Width mm	Height mm	Thickness mm	Height prism mm	Chucking capacity mm Horizontal Vertical
162365	set	92	92	32	16	19.5	12-36	12-36
158641	set	125	125	40	20	24	15-40	18-60

A37
Claw jaws SKB with fine step, 2.5 mm clamping depth

Item no.	Contents of delivery	Width mm	Height mm	Thickness mm
166514	set	92	32	14
166520	set	125	40	16

Including fixing screws

A37
Claw jaws SKB without step, universal for clamping depth > 2.5 mm

Item no.	Contents of delivery	Width mm	Height mm	Thickness mm
166661	set	92	32	14
166667	set	125	40	16

Including fixing screws

A37
Support rails Cliparc, set with 10 different pairs of rails and 4 clamps in wooden box

Item no.	Web height A	Jaw width B mm	Rail height H	Spare clamp (Set = 4 pieces)
1295913	53	92	10/16/18/20/23/25/26/27/28/29	1295916
1295914	73	125	10/15/20/25/28/30/33/35/36/37	1295917

A37
Draw-down jaws RNG, with two permanent magnets

Item no.	Contents of delivery	Width mm	Height mm
155237	set	92	32
159227	set	125	39.5

Including fixing screws

A37
Standard insert RNS, held by two permanent magnets

Item no.	Contents of delivery	Width mm	C mm	Y mm
155242	set	92	32	21
159232	set	125	40	26

A37
Standard insert finely checkered RNSf, held by two permanent magnets

Item no.	Contents of delivery	Width mm	C mm	Y mm
163270	set	92	32	21
163267	set	125	40	26

A37
Claw insert RNK, held by two permanent magnets

Item no.	Contents of delivery	Width mm	C mm	Y mm
155247	set	92	32	21
159235	set	125	40	26

A37

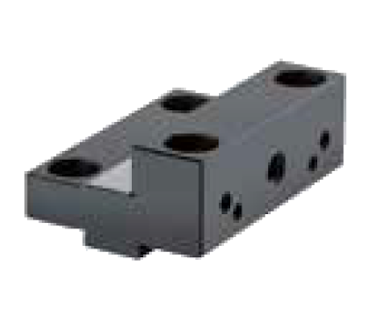

Fixed stepped jaw FSB, for single clamping, reversible

Item no.	Contents of delivery	Size	Width mm
178777	piece	92	92
178231	piece	125	125

A37

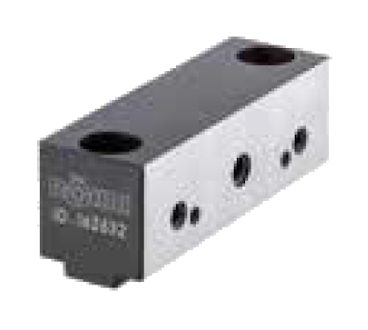

Center jaws MBA

Item no.	Contents of delivery	Size	Width mm	Height mm	Thickness mm
161833	piece	92	92	32	30
162632	piece	125	125	40	40

C15
Hand crank HKU

Item no.	Contents of delivery	Size	Inside octagon Key-width (KW)	L
009153	piece	92	17	160
009154	piece	125	19	200

A37
Drive adapter ATA

Item no.	Contents of delivery	Size	Square
162192	piece	92	17 - 1/2"
161730	piece	125	19 - 1/2"

A26
Torque Wrench

Item no.	Torque Nm	Length mm	Output	Working accuracy
10004116	20 - 120	435	12.7 = 1/2"	3%
10004117	60 - 320	659	12.7 = 1/2"	3%

A37
Single clamp SPE, for mounting vices on end and on the base

Item no.	Contents of delivery	T-slot	Thread
149121	piece	12	M 10 x 50
149122	piece	14	M 12 x 55
149123	piece	16	M 12 x 60
149124	piece	18	M 16 x 60
155722	piece	20	M 16 x 65
151507	piece	22	M 16 x 65

A37
Fixed slot nuts NTS, hardened and ground, with fixing screw

Item no.	Contents of delivery	Size	Length mm
014823	set	20 x 12	22
014825	set	20 x 14	25
014827	set	20 x 16	25
014829	set	20 x 18	25
014831	set	20 x 20	22
014833	set	20 x 22	32

A37
Workpiece stop with mounting thread

Item no.	Description
320400	Workpiece stop with M12 mounting thread

A37
Workpiece stop magnetic

Item no.	Description
184740	Workpiece stop with magnetic attachment - Premium (incl. base module)

We reserve the right to make technical changes.
