   power operated |

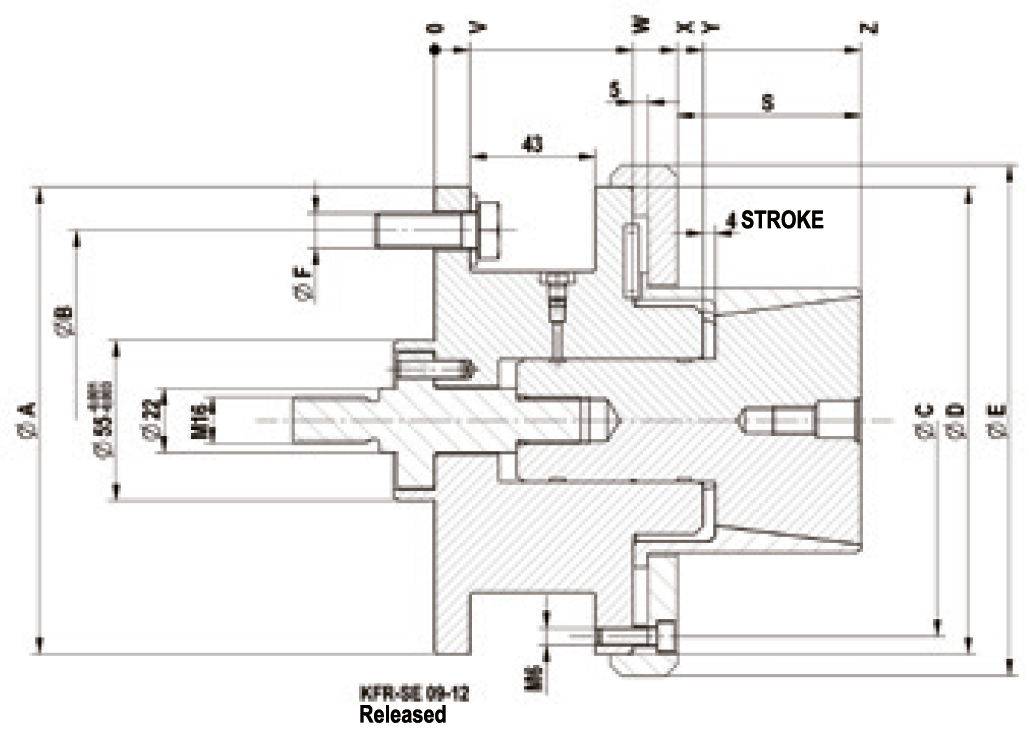

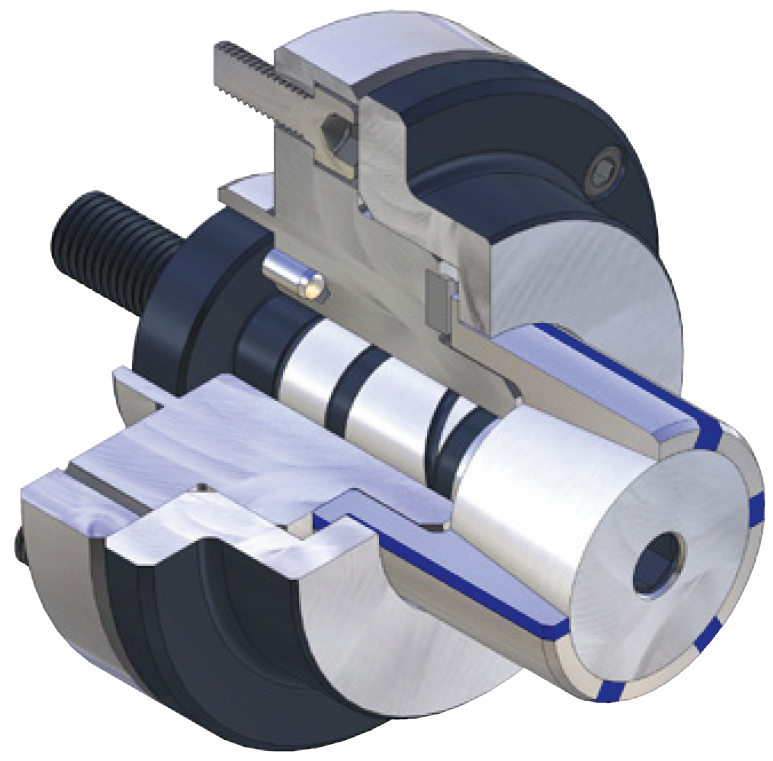

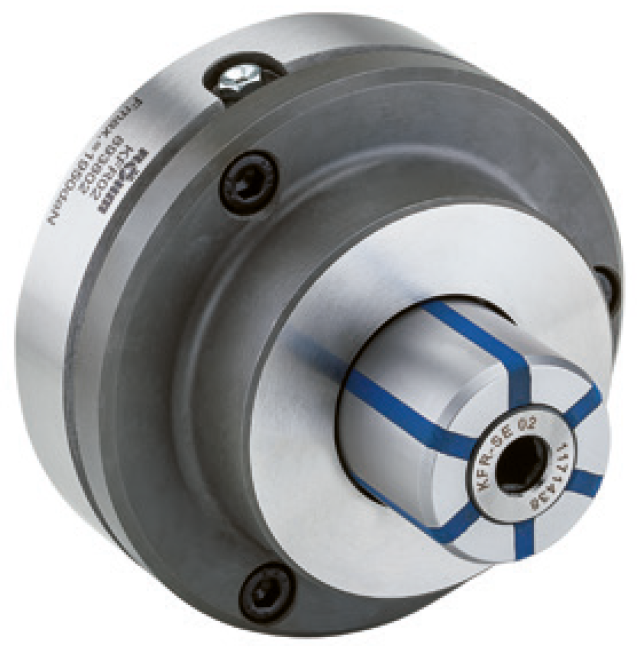

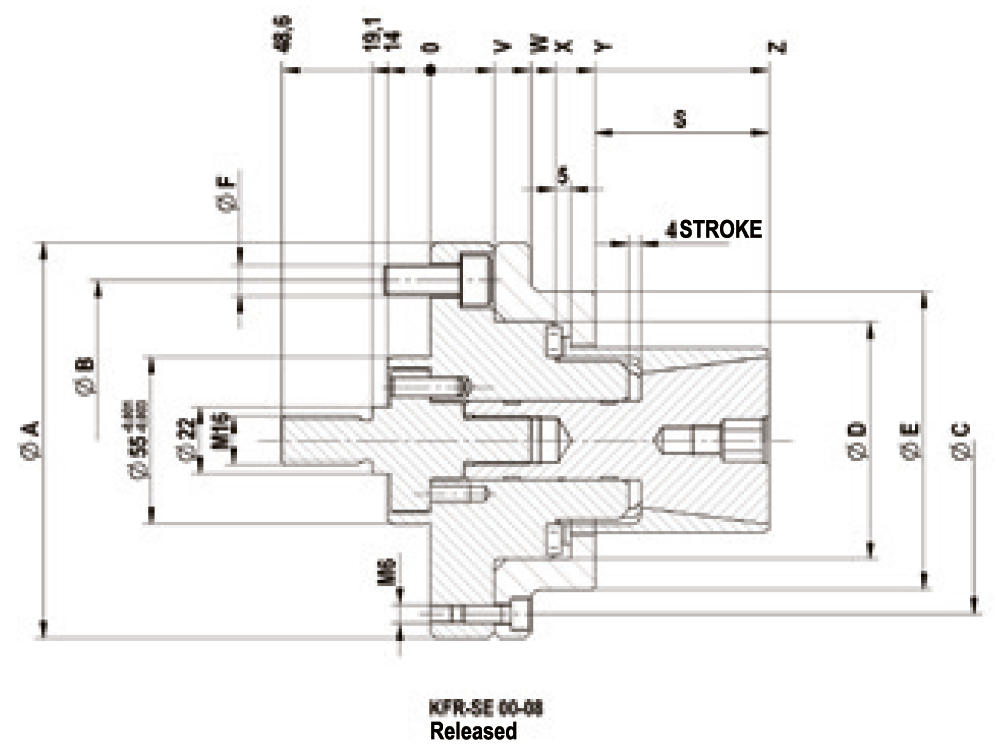

Segment Clamping Mandrel KFR-SE - without axial tightening, force-actuated  |
APPLICATION Internal clamping of round workpieces. Turning, grinding and toothing operations, as well as for balancing and measuring. TYPE Force-actuated. Ideal for short clamping lengths / workpieces. TECHNICAL FEATURES - Integrated lubrication - Air sensing prepared CUSTOMER BENEFITS » Short setup and non-productive times thanks to great expansion of the segment sleeves |
 |
| » Vibration damping due to high vulcanized rubber component of the clamping sleeves » No workpiece tension thanks to def. axial tension against the workpiece stop » High concentricity, axial run-out and repeatability |
We reserve the right to make technical changes.
