   power operated |

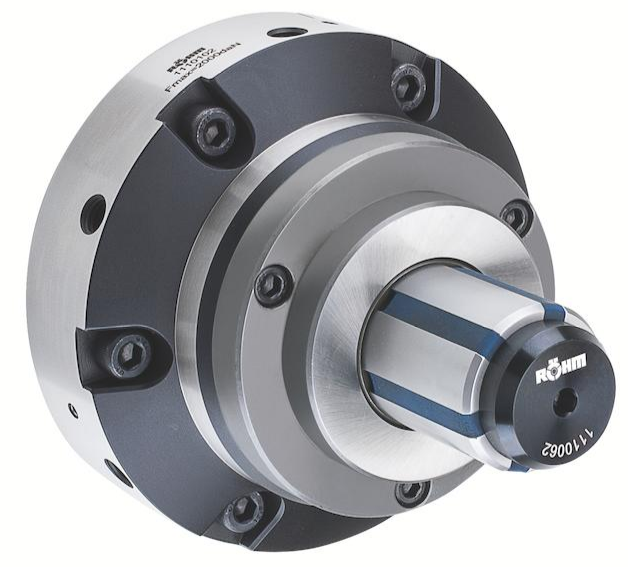

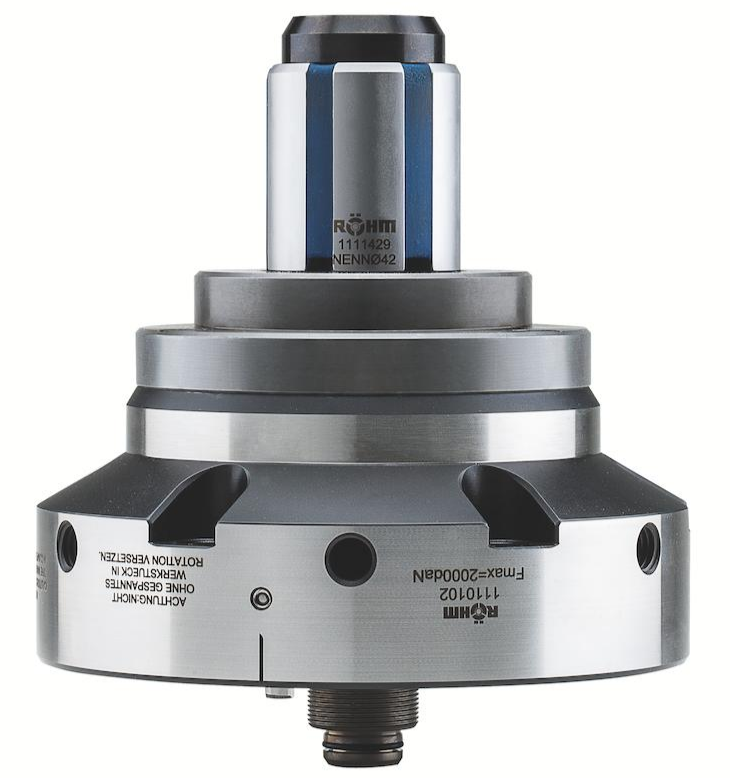

Segment Clamping Mandrel ABSIS - for long clamping lengths, with axial tightening   |
APPLICATION Internal clamping of round workpieces. Turning, milling, grinding and toothing operations, as well as for balancing and measuring. Ideal for clamping in through holes. TYPE Force-actuated. TECHNICAL FEATURES - Manual lubrication - Air sensing prepared CUSTOMER BENEFITS » High concentricity, axial run-out and repeatability |
 |
| » Short setup and non-productive times thanks to great expansion of the segment sleeves » Vibration damping due to high vulcanized rubber component of the clamping sleeves » Sturdy clamping of the workpiece thanks to axial tension against the workpiece stop » Fast change of segment sleeves thanks to central clamping screw |
We reserve the right to make technical changes.
