Röhm Vice RVM

5-axis Vices
RVM - acentrical, without
power transmitter

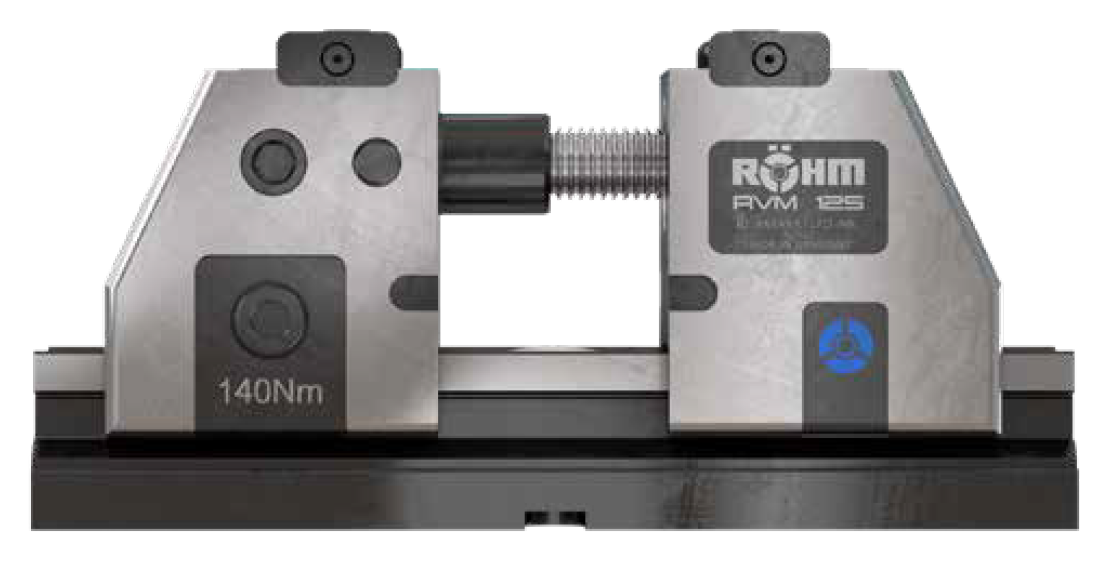

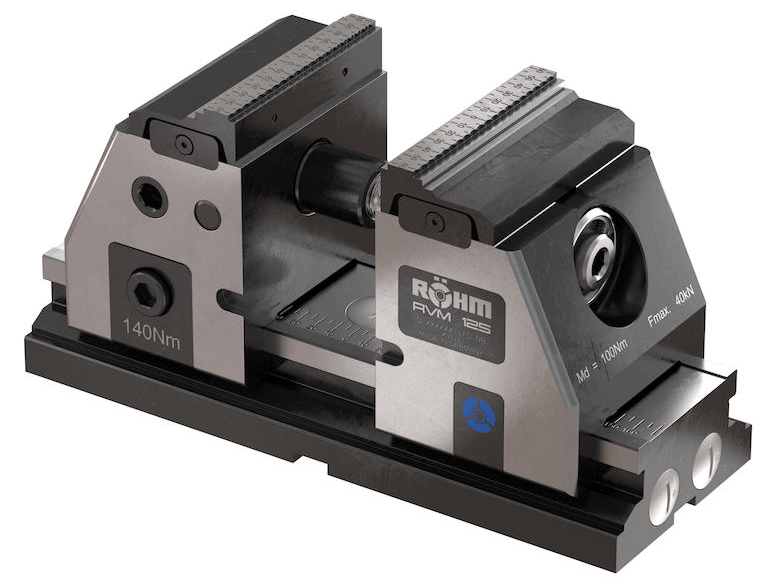

APPLICATION The RVM is designed for modern 5-axis machining. Equipped with a quick jaw change system to reduce setup times. The open design is easy to clean and prevents chip accumulation. TYPE Eccentric clamping, with one fixed and one movable jaw.
CUSTOMER BENEFITS » Quick jaw change system (jaw change within seconds) » Clamping center can be freely positioned on the base rail » Good accessibility for the machining tools » Versatile mounting options
MOUNTING POSSIBILITIES - with screws through the base rail (alignment via keyways possible) - via zero point clamping system (for EasyLock Ø25/M12) - by means of clamping claws on the outer rail contour (alignment possible via keyways). Rail lengths suitable for zero point clamping systems with carrier plate 350x350mm.
Scope of delivery: Vice, hexagon socket for 1/2“, operating instructions, without step jaws, without fastening wrench

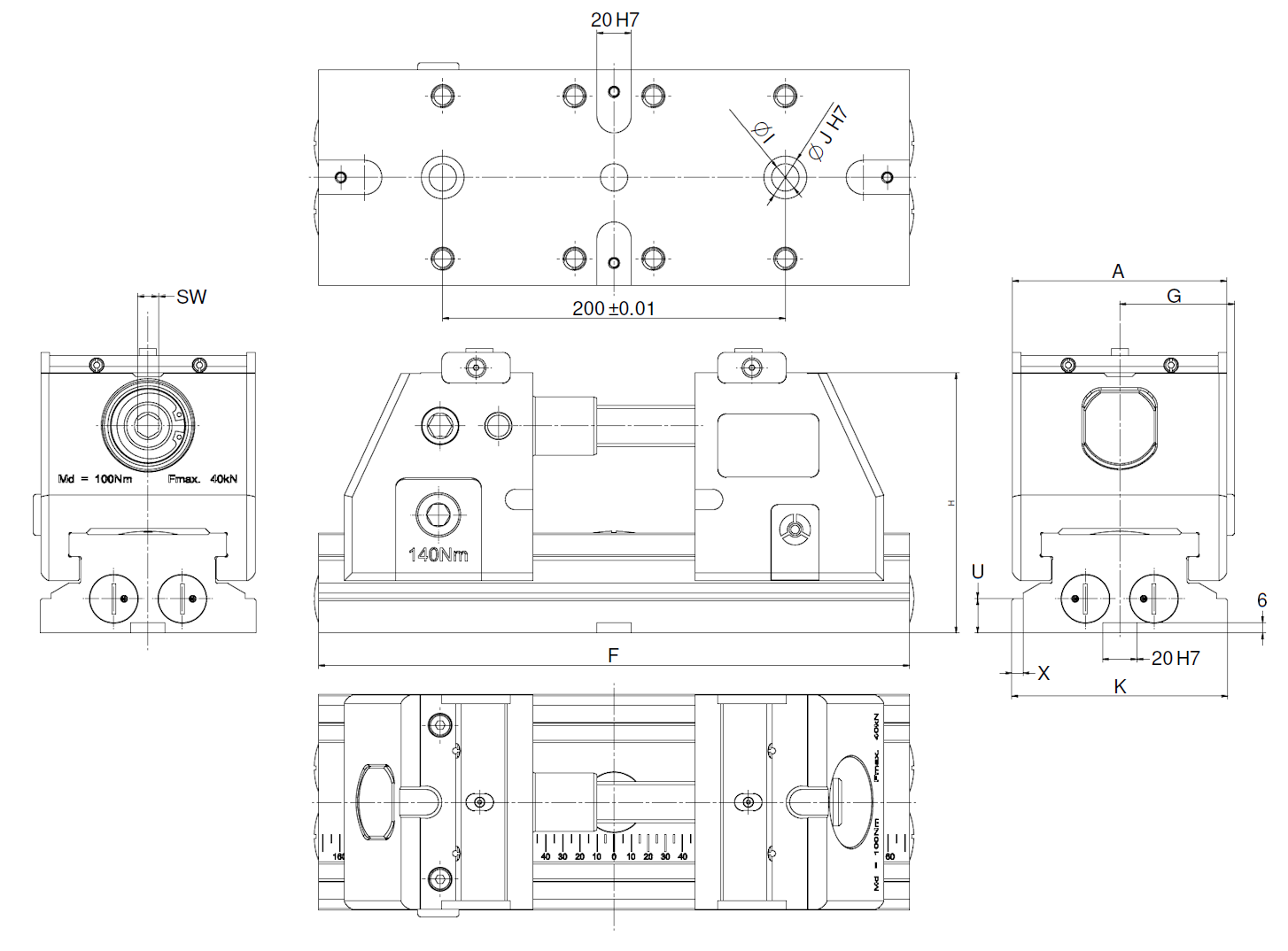

RVM, dimensions without step jaws

Item No.	184666	184717
Jaw width A mm	125	125
F mm	345	345
G mm	67	67
H mm	152	152
Ø I mm	16	13.5
Ø J / depth mm	Ø25+0.01 / 6	Ø25+0.01 / 6
K mm	126	126
U mm	20	20
X mm	6.5	6.5
Clamping stroke mm	95	95
Hexagon SW mm	12	12
Clamping force kN	40	40
Torque Nm	100	100
Weight kg	31.9	31.9
Prepared for zero point clamping system	Easylock (TELB2-112)	AMF (K20)
Interface to other zero point clamping systems available on request.

Accessories RVM

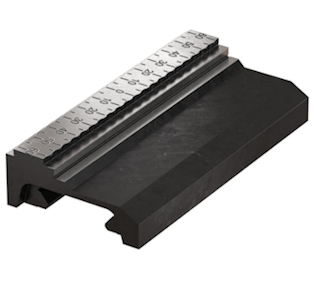

Stepped jaws 3 mm (Standard)
Two pieces standard jaw grip jaws with quick change geometry, 3 mm grip step and 4 mm smooth clamping step, reversible jaw, hardened

Description	Item no.	Dimensions mm
Stepped jaw set 3 mm	184704	125 x 62 x 26

Stepped jaws 5 mm
Two pieces of standard jaws with quick-change geometry, 5 mm grip step and 4 mm smooth clamping step, reversible jaw, hardened

Description	Item no.	Dimensions mm
Stepped jaw set 5 mm	184705	125 x 62 x 28

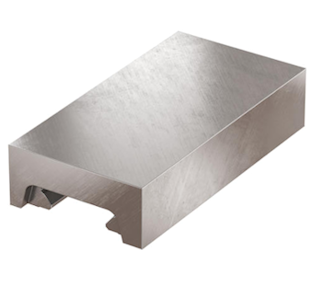

Top jaws in steel design
Two pieces of steel block jaw with quick jaw change geometry suitable for RVM, unhardened

Description	Item no.	Dimensions mm
Top jaws in steel design	184706	125 x 62 x 32

Workpiece support strips Cliparc, set in wooden box with 5 different pairs of strips and 4 clamps

Item no.	Web height mm	Jaw width mm	Rail height mm
184710	68	125	10/13/15/18/20

Torque Wrench

Item no.	Torque Nm	Length mm	Output	Working accuracy
10004116	20 - 120	435	12.7 = 1/2"	3%

A37

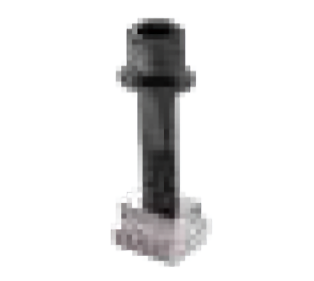

Single clamp SPE, for mounting vices on end and on the base

Item no.	Contents of delivery	T-slot	Thread
149121	piece	12	M 10 x 50
149122	piece	14	M 12 x 55
149123	piece	16	M 12 x 60
149124	piece	18	M 16 x 60
155722	piece	20	M 16 x 65
151507	piece	22	M 16 x 65

A37
Fixed slot nuts NTS, hardened and ground, with fixing screw

Item no.	Contents of delivery	Size	Length mm
014823	set	20 x 12	22
014825	set	20 x 14	25
014827	set	20 x 16	25
014829	set	20 x 18	25
014831	set	20 x 20	22
014833	set	20 x 22	32

Sword clamping bolt

Item no.	Contents of delivery
184707	Position clamping bolt cpl.(EasyLock Ø 112) Id.-No. 1352633 with fixing screw
184708	Sword clamping bolt cpl. (EasyLock Ø 112) Id.-No. 1352634 with fixing screw
184709	Set of clamping bolts consists of 1 position clamping bolt complete and one sword clamping bolt complete for EasyLock Ø 112

Direct fixing

Item no.	Contents of delivery
184742	Direct fixing screw RVM KP

A37
Workpiece stop with mounting thread

Item no.	Description
320400	Workpiece stop with M12 mounting thread

A37
Workpiece stop magnetic

Item no.	Description
184740	Workpiece stop with magnetic attachment - Premium (incl. base module)

We reserve the right to make technical changes.
