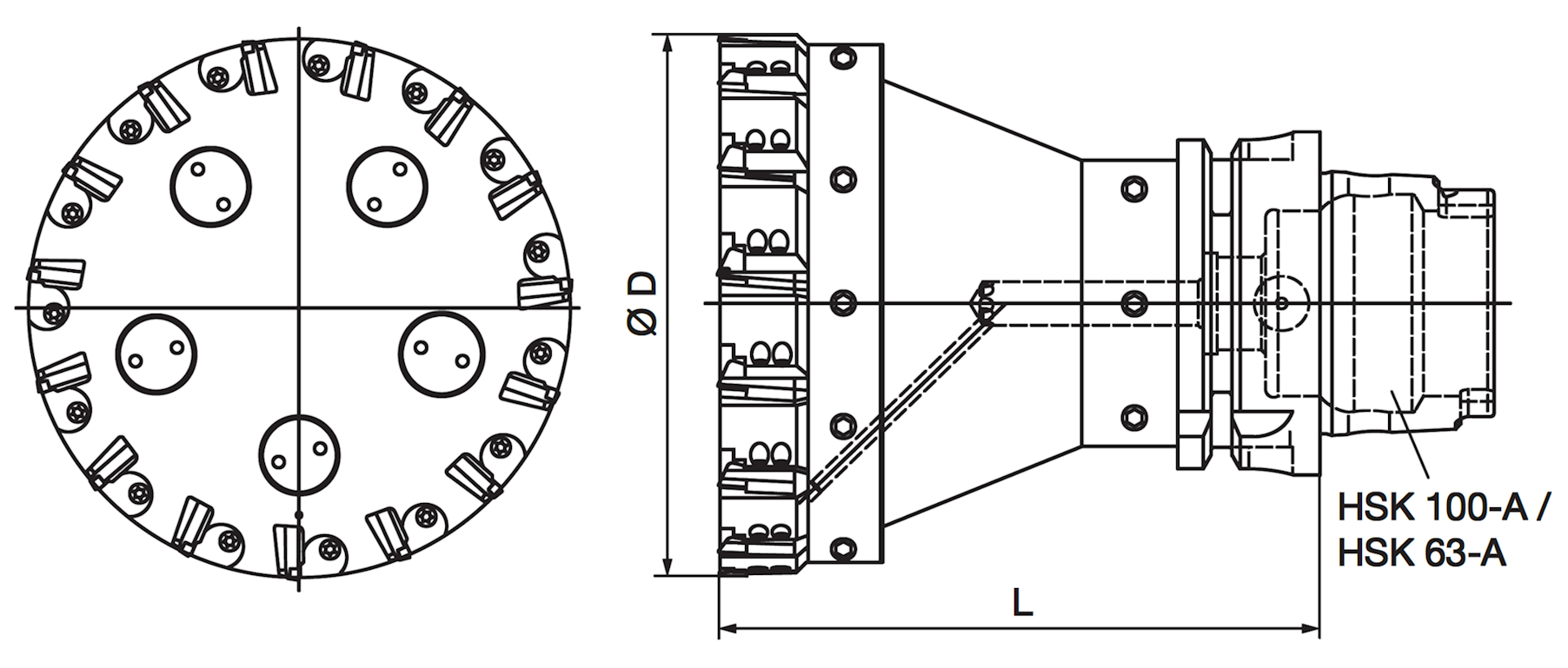

HPC milling cutters for finish machining. Standard range with a reduced number of cutting edges for cutting depths up to max. 2 mm |
 |
||||||||||||
| Part nr. 20004 |
||||||||||||
| Code | Drawing nr. | Diameter/mm | teeth | L/mm | max. rev./min. | Shank | Weight (kg) | |||||
| for lower spindle power | ||||||||||||
| 63,106 | Q9933-6300 1063R | 63 | 9 | 100 | 31,000 | HSK 63-A | 1.9 | |||||
| 80,106 | Q9933-8000 1163R | 80 | 12 | 110 | 28,000 | HSK 63-A | 2.7 | |||||
| 100,106 | Q9933-1000 1163R | 100 | 15 | 110 | 24,000 | HSK 63-A | 3.7 | |||||
| 125,106 | Q9933-1250 1263R | 125 | 18 | 123 | 20,000 | HSK 63-A | 5.5 | |||||
| 160,106 | Q9933-1600 1263R | 160 | 24 | 123 | 15,000 | HSK 63-A | 7.7 | |||||
| Part nr. 20004 |
||||||||||||
| Code | Drawing nr. | Diameter/mm | teeth | L/mm | max. rev./min. | Shank | Weight (kg) | |||||
| for lower spindle power | ||||||||||||
| 63,108 | Q9933-6300 1010R | 63 | 9 | 100 | 31,000 | HSK 100-A | 3.2 | |||||
| 80,108 | Q9933-8000 1110R | 80 | 12 | 110 | 28,000 | HSK 100-A | 4.2 | |||||
| 100,108 | Q9933-1000 1110R | 100 | 15 | 110 | 24,000 | HSK 100-A | 5.7 | |||||
| 125,108 | Q9933-1250 1210R | 125 | 18 | 123 | 20,000 | HSK 100-A | 7.7 | |||||
| 160,108 | Q9933-1600 1210R | 160 | 24 | 123 | 15,000 | HSK 100-A | 10 | |||||
| Ordering example: 1 piece Q 9933-6300 1010 R = Ordering number: 20004 63,108 | ||||||||||||
We reserve the right to make technical changes.
