HAM 40-5191 solid carbide end mill

Engineering data
• special geometry with unequal helix
• special chip breaker for short chips
• high chipping volume
• very smooth running
• centre cutting
• cutting area geometrical balanced

corner chamfer	d1	b
	≥ Ø 6	0.02 x d1

Material

40-5191

very suitable

limited suitable

tool design and mould and die production	cutting material solid carbide ultra micro grain	number of teeth - 5	helix angle 43° right hand fluted	HAM Standard	Type normal	Machining Direction	cylindrical shank acc. DIN
Special-polishing process	High Speed Cutting	High Performance Cutting	Shrink Fit	Clamping Fixture Weldon

Ø d1 (e8) mm	l2 mm	l3 mm	Ø d3 (Hals) mm	l1 mm	Ø d2 (h6) mm	Ø d1 (e8) mm	l2 mm	l3 mm	Ø d3 (Hals) mm	l1 mm	Ø d2 (h6) mm
6	18	26	5.8	64	6	12	36	48	11.5	95	12
8	24	32	7.5	70	8	16	48	60	15.5	110	16
10	30	40	9.5	82	10	20	60	76	19.5	127	20

Particularly suitable for trochoidal and highspeed milling

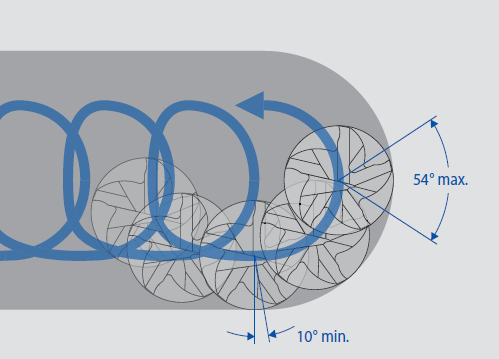

Trochoidal milling

hm = constant (hm = mean chip thickness)

Overlapping of feed motion with a circular movement

We reserve the right to make technical changes.
