Fineboring Tools Radial adjustment, μm-accurate adjustable |

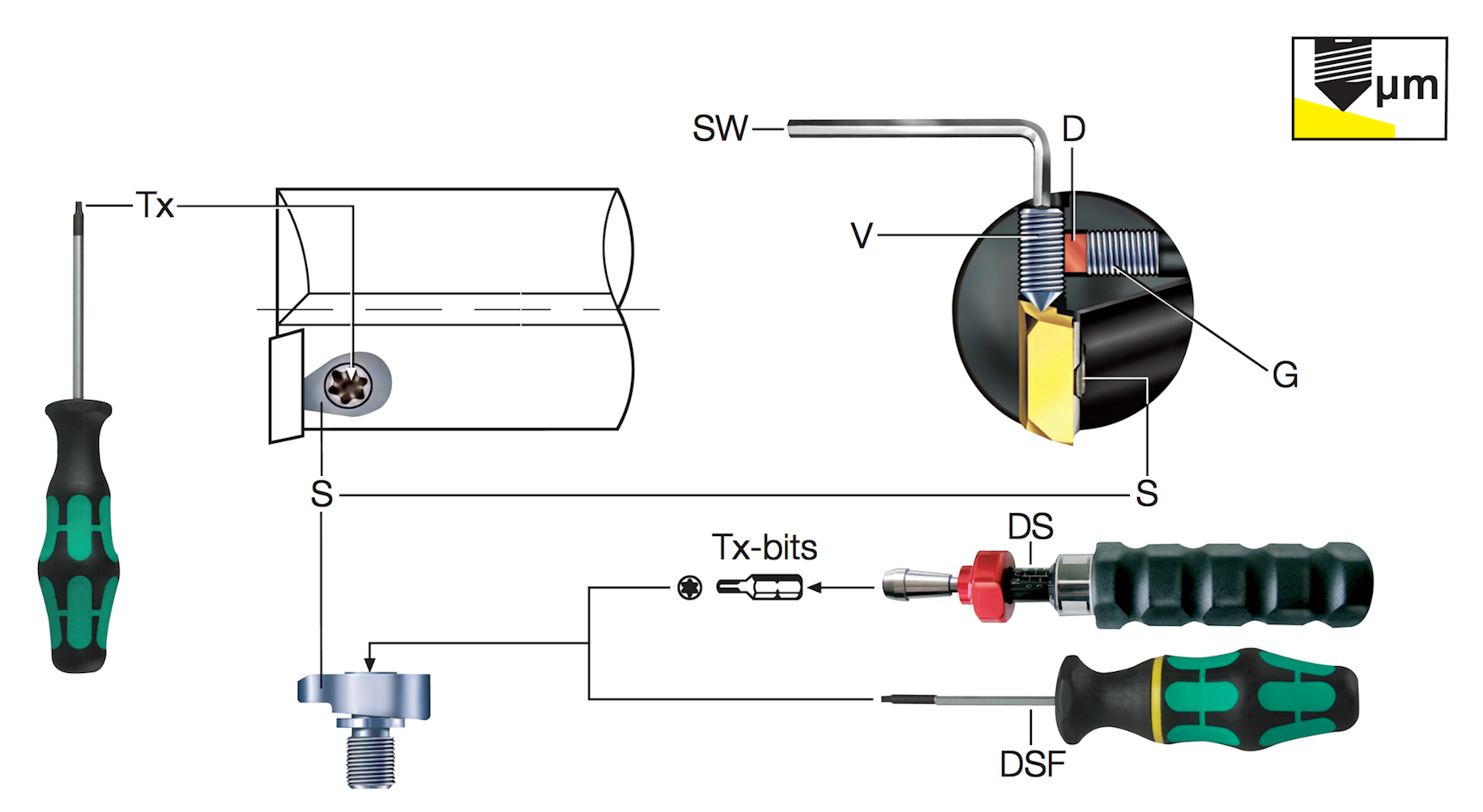

Spare Parts 1 cutting edge
| S | Clamping set | ||
| Tx | Torx-screw driver ( for operating clamping ) | ||
| DS | Torque wrench adjustable | ||
| DSF | Torque wrench non-adjustable | ||
| Tx-bits | Torx-bits | ||
| V | Adjustment screw ( tapered screw ) | ||
| SW | Hex key | ||
| G | Clamping screw | ||
| D | Pushing pin | ||
Please note: Clamping set S contains: 1 Clamping element, 1 Sealing ring, 1 Clamping screw |
|||
| Tool | S | Tx | Tx-bits | V | SW | G | D |
| H 1035-0700 …. R | E 1100 | Tx 5 | Tx 5-bit | E 2450-1 | 0.7 | E 2608-1 | E 2649-1 |
| H 1035-0800 …. R | E 1100 | Tx 5 | Tx 5-bit | E 2450-2 | 0.7 | E 2608-2 | E 2649-1 |
| H 1035-0900 …. R | E 1100 | Tx 5 | Tx 5-bit | E 2450-3 | 0.7 | E 2608-3 | E 2649-1 |
| H 2850-1000 …. R | E 1085 | Tx 6 | Tx 6-bit | E 2323-1 | 0.9 | E 2610-2 | E 2649-2 |
| H 2850-1100 …. R | E 1085 | Tx 6 | Tx 6-bit | E 2323-2 | 0.9 | E 2610-2 | E 2649-2 |
| H 2850-1200 …. R | E 1085 | Tx 6 | Tx 6-bit | E 2323-2 | 0.9 | E 2610-3 | E 2649-2 |
| H 2850-1300 …. R | E 1085 | Tx 6 | Tx 6-bit | E 2323-3 | 0.9 | E 2610-4 | E 2649-2 |
| H 3570-1400 …. R | E 1060 | Tx 8 | Tx 8-bit | E 2108-1 | 1.3 | E 2612-1 | E 2649-3 |
| H 3570-1600 …. R | E 1060 | Tx 8 | Tx 8-bit | E 2108-2 | 1.3 | E 2612-1 | E 2649-3 |
| H 3570-1800 …. R | E 1060 | Tx 8 | Tx 8-bit | E 2108-2 | 1.3 | E 2612-2 | E 2649-3 |
| DSF / DS - see adjustment instruction | |||||||
We reserve the right to make technical changes.
