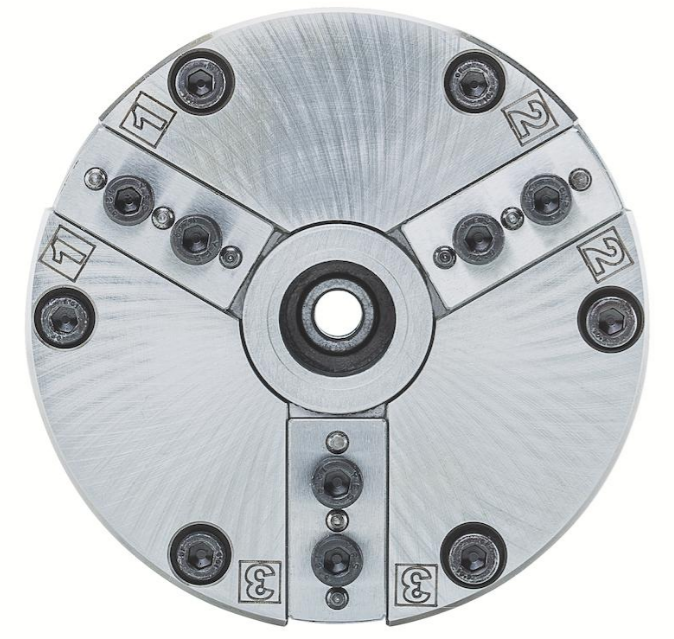

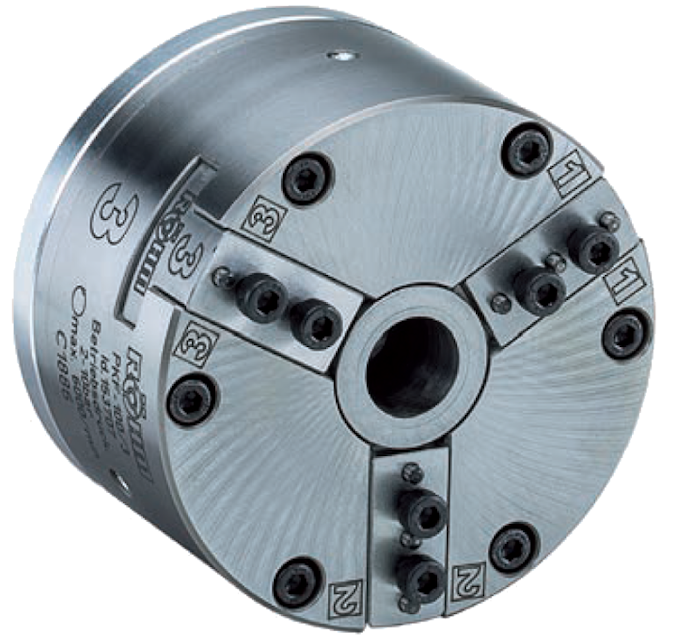

Power Chucks with Through-hole PKF - Air-Operated Wedge Hook Chuck   |
APPLICATION Suitable for very high concentricity and clamping repeatability. TYPE Air-operated high precision wedge hook clamping chuck. TECHNICAL FEATURES - Clamping piston construction with power transmission on both sides according to the RÖHM KFD-HS principle - Integrated pneumatic operation |
 |
| - Through-hole for coolant supply for sizes 100-200 CUSTOMER BENEFITS » Concentricity and axial run-out precision within 0.003 mm » High amount of safety in event of pressure failure thanks to self-locking » Low-maintenance thanks to oil-mist lubrication » Optimal adaption of the clamping force for clamping deformation-sensitive parts thanks to large actuation range from 2-10 bar |
|
| Note: Please order air supply tube, maintenance unit, top jaws and actuation valves separately Included in the scope of delivery: Chuck, chuck and jaw mounting screws (without top jaws) |
|
We reserve the right to make technical changes.
