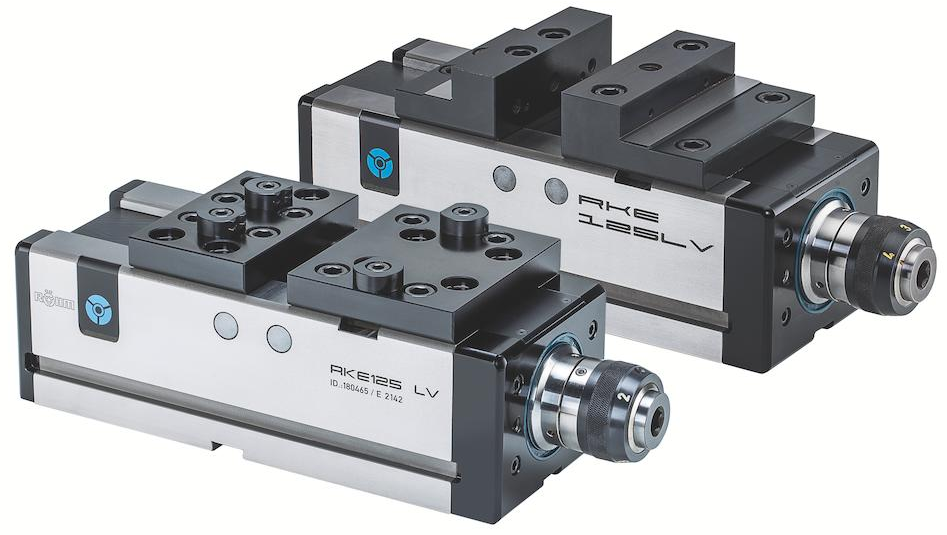

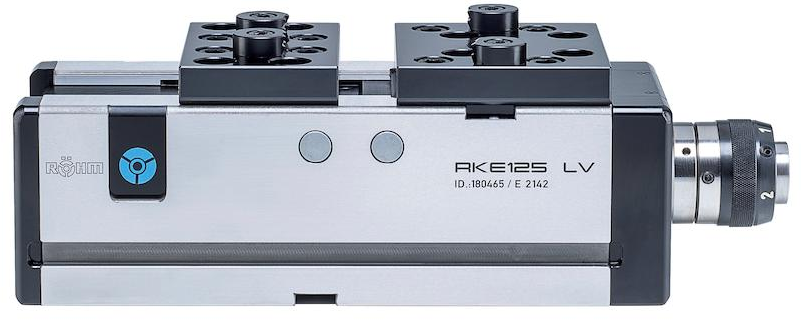

Röhm Vice RKE-LV

NC-Compact Vices
RKE-LV - without power
transmitter, short design

APPLICATION Optimized for collision-free 5-axis machining in one set-up. Specially suited for 5-axis machines in combination with a base plate. TYPE Clamping system mechanical-mechanical with power transmitter, manually operated. Short, compact design.
TECHNICAL FEATURES - Sturdy steel body and all guides are hardened and ground on all sides - Carrier jaws incl. swivelable claw inserts for round and rectangular workpieces - Clamping ranges carrier jaws: Rightangular workpieces: 35 - 215 mm Circular workpieces: 65 - 225 mm
CUSTOMER BENEFITS » With tension clamping, zero point of the workpiece on the operator side » Large clamping range » High-precision positioning » Stable chip guard for longer life

A32

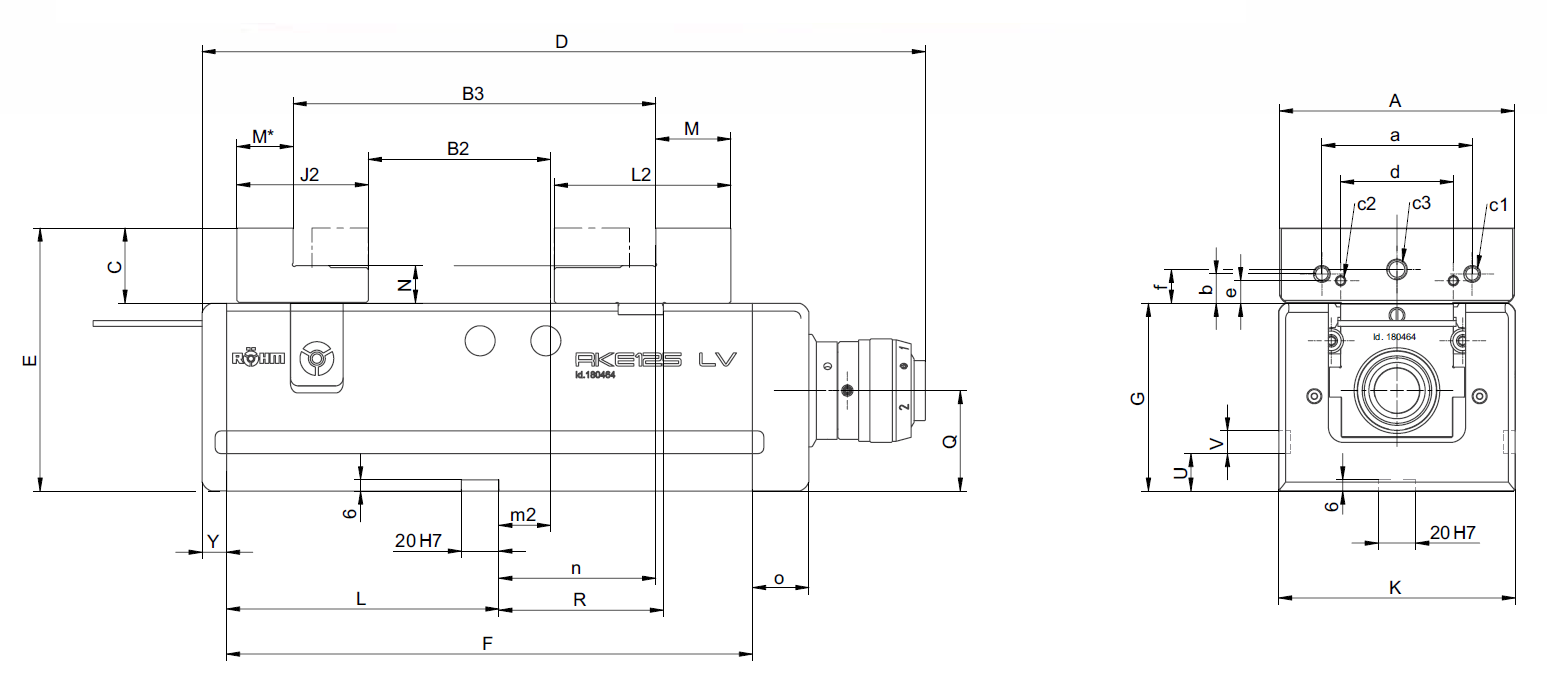

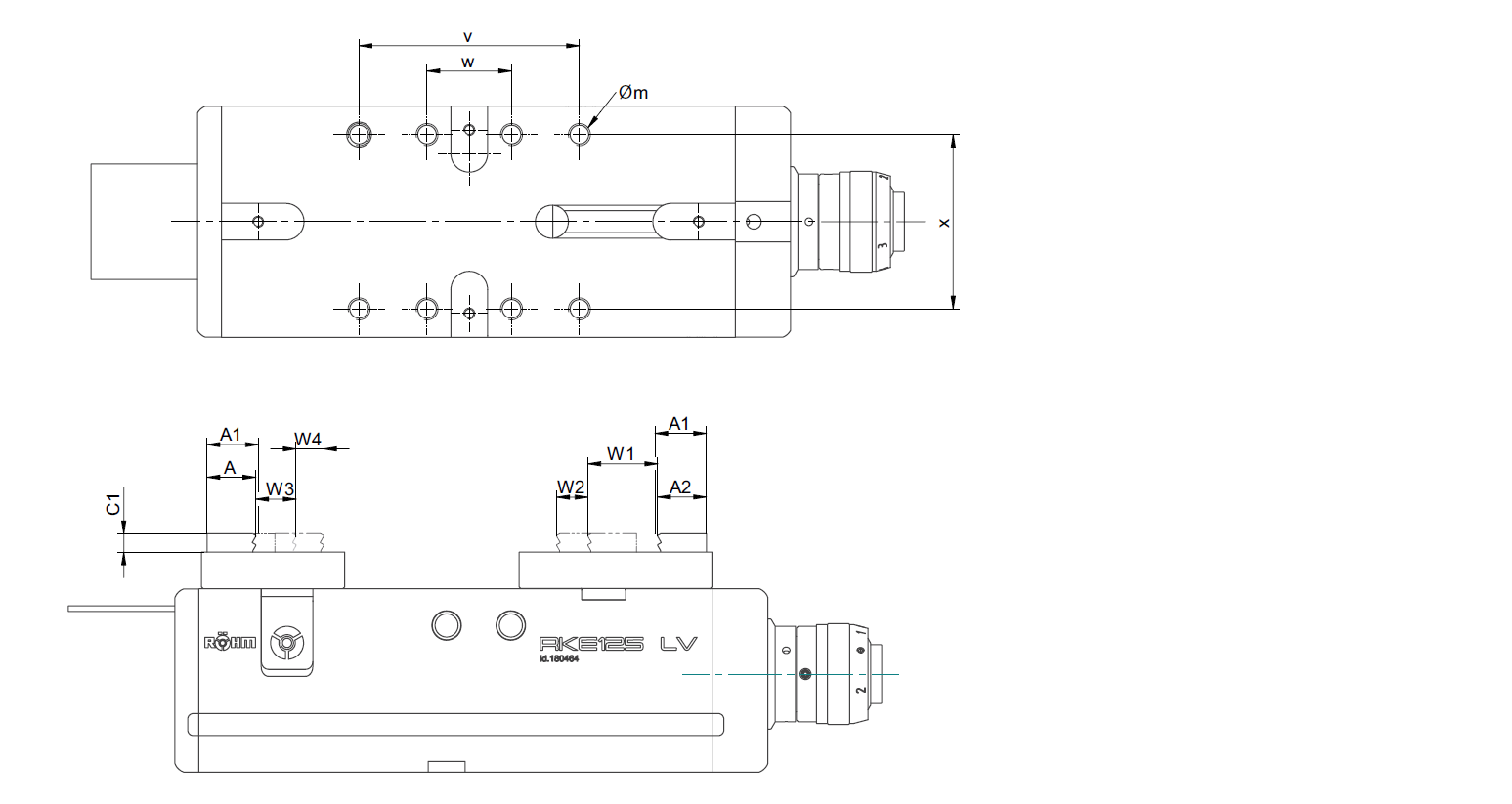

RKE-LV, with reversible stepped jaws or carrier jaws

Item No.	180464	180465
Jaw width A mm	125	125
Jaw design	stepped jaws	carrier jaws
B2 mm	0 - 96	35 - 215
B3 mm	96 - 192	65 - 225
C mm	40	20
D mm	385	385
E mm	140	130
F mm	280	280
G_-0.02 mm	100	100
J2 mm	70	78
K mm	126	126
L mm	145	145
L2 mm	94	105
M mm	40	-
M* mm	30	-
N_-0.01 mm	20	20
O mm	30	30
Q mm	53.5	53.5
R mm	87.5	87.5
U mm	20	20
V mm	12	12
Y mm	13	13
a mm	60	-
b mm	15.6	-
c1 mm	M 8	-
c2 mm	M 5	-
c3 mm	M 10	-
d mm	80	-
e mm	12	-
f mm	18	-
m2±0.02 mm	27.5	-
n±0.02 mm	83.5	-
o mm	30	30
v mm	120	120
w mm	46	46
x mm	95	95
Ø m x depth	M 12 x 20	M 12 x 20
Clamping force kN	40	40
A1 mm	-	28
A2 mm	-	26.5
C1 mm	-	10
W1 mm	-	38
W2 mm	-	17
W3 mm	-	22
W4 mm	-	15
Weight kg	29	29

Accessories RKE-LV

A37

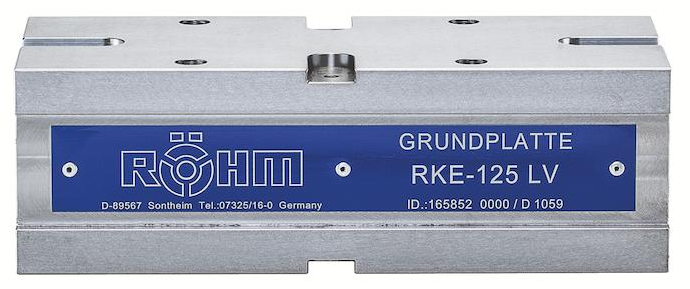

Standard base plate GP

Item no.	Contents of delivery	Size	Length mm	Width mm	Height mm	Weight kg
165852	piece	125	280	126	90	24

A37
Standard top jaws SA, reversible

Item no.	Contents of delivery	Size	Width mm	Height mm
162628	set	125	125	40

A37
One-piece steel top jaws, for self-production of formed jaws or for clamping formed parts

Item no.	Contents of delivery	Size	Width mm	Height mm
160352	set	125	125	60

A37
Stepped jaws SB, reversible

Item no.	Contents of delivery	Size	Width mm	Height mm
178230	set	125	125	40

A37
Double stepped jaws DSB, „smooth“

Item no.	Contents of delivery	Size	Width mm	Height mm
168693	set	125	62	60

A37
Carrier jaws TB, without swivelling claw inserts

Item no.	Contents of delivery	Size	Width mm	Height mm
165856	set	125	125	20

A37
Carrier jaws, without claw inserts

Item no.	Contents of delivery	Size	Width mm	Height mm
165861	set	125	160	20

A37
Swivelling claw inserts, for carrier jaws 743-72

Item no.	Contents of delivery	Size	Height mm
165854	piece	125	10

A37
Tensioner, for carrier jaws 743-72

Item no.	Contents of delivery	Size	Height mm
169389	piece	125	10

A37
Claw jaws SKB with fine step, 2.5 mm clamping depth

Item no.	Contents of delivery	Size	Width mm	Height mm	Thickness mm
166520	set	125	125	40	16

Including fixing screws

A37
Claw jaws SKB without step, universal for clamping depth > 2.5 mm

Item no.	Contents of delivery	Size	Width mm	Height mm	Thickness mm
166667	set	125	125	40	16

Including fixing screws

A37
Support rails Cliparc, set with 10 different pairs of rails and 4 clamps in wooden box

Item no.	Web height A	Jaw width B mm	Rail height H	Guiding width C	Spare clamp (Set = 4 pieces)
1269622	68	125	10/15/20/25/28/30/33/35/36/37	126	1269625

A37

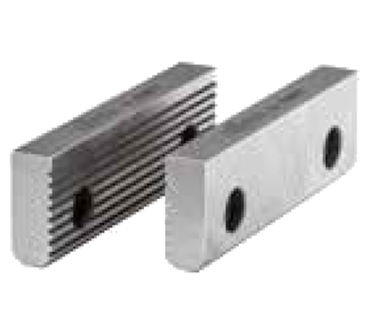

Standard jaws SGN, one side smooth, one side grooved, hardened and ground

Item no.	Contents of delivery	Size	Width mm	Height mm
158897	set	125	125	39.7

A37

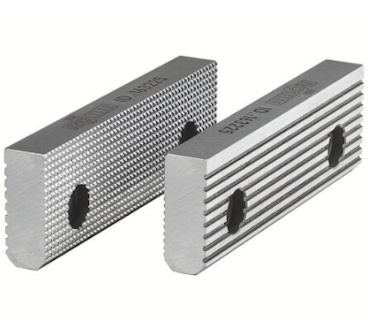

Normal jaw finely checkered SGNf, reversible, to increase the specific contact pressure (higher holding forces), one side finely checkered, one side longitudinally grooved

Item no.	Contents of delivery	Size	Width mm	Height mm
163225	set	125	125	39.7

A37
V-jaw SPR, with vertically and horizontally ground-in prisms, hardened, for combination with SGN

Item no.	Contents of delivery	Size	Width mm	Height mm	Chucking capacity mm Horizontal Vertical
082363	piece	125	135	39.6	4-20	6-40

Including fixing screws

A37
Normal jaw SGNA, with movable workpiece stop, hardened and ground

Item no.	Contents of delivery	Size	Width mm	Height mm
150740	piece	125	135	39.6

Including fixing screws

A37
Draw-down jaws SNF, with spring plate, hardened and ground

Item no.	Contents of delivery	Size	Width mm	Height mm
077105	set	125	135	39.6

Including fixing screws

A37
V-jaw and standard jaw SBO, unhardened and burnished, with workpiece support

Item no.	Contents of delivery	Size	Width mm	Height mm	Chucking capacity mm Horizontal Vertical		Step
317260	set	125	135	39.8	3-13	6-40	4 x 4.3

Including fixing screws

A37
Hand crank, turnable handle, hexagon socket

Item no.	Contents of delivery	Size	External hexagon Key-width (KW)	A	L
134600	piece	125	14	104	160

A37

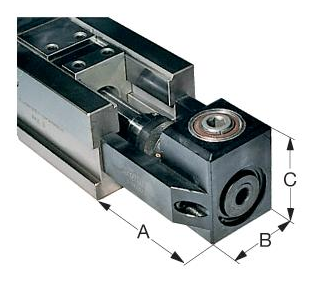

Angle drive 90°

Item no.	Contents of delivery	Size	A	B	C
158339	piece	125	133	106	98

A37
Single clamp SPE, for mounting vices on end and on the base

Item no.	Contents of delivery	T-slot	Thread
149121	piece	12	M 10 x 50
149122	piece	14	M 12 x 55
149123	piece	16	M 12 x 60
149124	piece	18	M 16 x 60
155722	piece	20	M 16 x 65
151507	piece	22	M 16 x 65

A37
Fixed slot nuts NTS, hardened and ground, with fixing screw

Item no.	Contents of delivery	Size	Length mm
014823	set	20 x 12	22
014825	set	20 x 14	25
014827	set	20 x 16	25
014829	set	20 x 18	25
014831	set	20 x 20	22
014833	set	20 x 22	32

A37
Workpiece stop with mounting thread

Item no.	Description
320400	Workpiece stop with M12 mounting thread

A37
Workpiece stop magnetic

Item no.	Description
184740	Workpiece stop with magnetic attachment - Premium (incl. base module)

We reserve the right to make technical changes.
