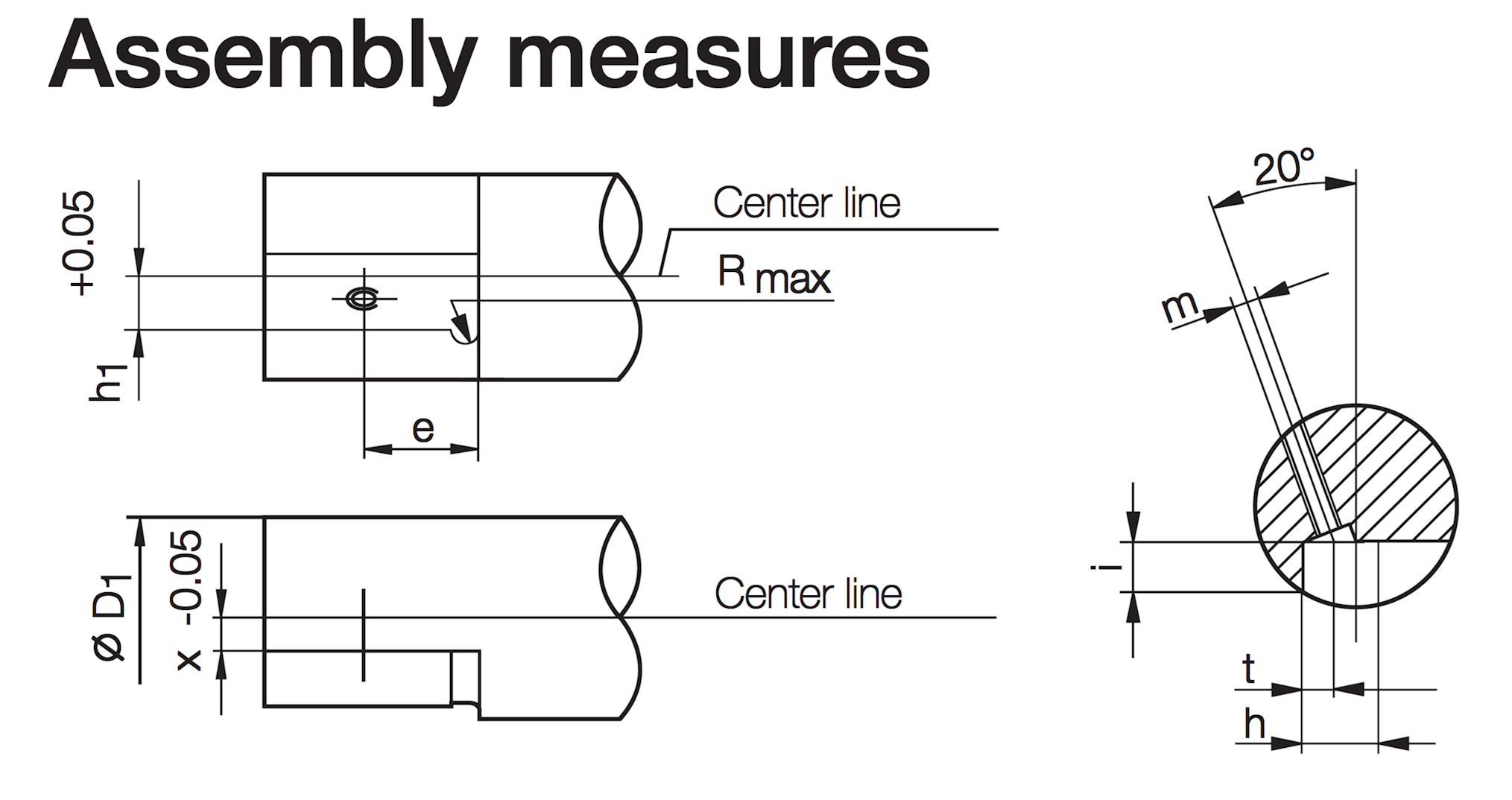

Cartridges with tapered screw adjustment, μm-accurate adjustable |
| Assembly measures for: | |||||||||||
| Part number | f | h1 | h | t | e | Rmax | m | Imax | |||
| H 1035-2088 0890 R/L CBFP R/L 06 CA-04 |
8 | 6 | 8.5 | 3.5 | 12 | 1.5 | M 3.5 | 5 | |||
| H 2850-2588 1090 R/L CBFP R/L 08 CA-05 |
10 | 8 | 11 | 4.5 | 17 | 2.5 | M 4 | 6 | |||
| H 3570-3088 1290 R/L CBFP R/L 08 CA-07 |
12 | 8 | 11 | 4.5 | 17 | 4 | M 4 | 8 | |||
| H 4090-3588 1490 R/L CBFP R/L 10 CA-09 |
14 | 10 | 14 | 5 | 20 | 4 | M 6 | 9 | |||
X = D / 2 - f |
 |
||||||||||
| Minimum machining diameters for: | |||||||||||
| Part number | 1 cutting edges possible at Ø |
2 cutting edges possible at Ø |
3 cutting edges possible at Ø |
||||||||
| H 1035-2088 0890 R/L CBFP R/L 06 CA-04 |
20 | 25 | 35 | ||||||||
| H 2850-2588 1090 R/L CBFP R/L 08 CA-05 |
25 | 30 | 40 | ||||||||
| H 3570-3088 1290 R/L CBFP R/L 08 CA-07 |
30 | 35 | 45 | ||||||||
| H 4090-3588 1490 R/L CBFP R/L 10 CA-09 |
35 | 40 | 50 | ||||||||
